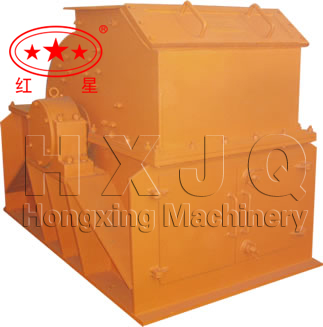

The PC hammer mill is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic material, construction material, roadbuilding, and petroleum & chemical industries. The hammer mill crusher crushes materials by the collisions between high-speed hammer and material, and the hammering machine has the features of simple structure, high reduction ratio, high efficiency, etc.
1. Simple and reasonable structure, low operation cost
2. High efficiency and energy saving
3. Fine grinding function
4. Slightly influenced by humidity, the max, humidity could reach 15%
5. suitable for crushing mid-hardness and high-hardness materials
In the hammer mill, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are a series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed will crush them, the crushed products meeting the required size can be discharged by the outlet and become the final products, and the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.
In comparison with other hammering machines, this sort of machine is manufactured with alloy composite hammer which has the outstanding merits of high wear ability, big move inertia and high kinetic energy. Certainly, the advantages such as large size of feed materials, high efficiency and low maintenance are also inherent in the machine. When producing 50-500t per hour, this series of crusher is becoming the preferred device in heavy industry.
Source of this article：HX China edit：HX China
With its high-efficient and energy-saving characteristics, magnetic separator is widely used in recycling, timber, mining, ceramic, chemical, food and other factories for particle size below 3mm magnetite, roasted ore and other materials.
