Applications: Widely used in building materials, ore crushing, railways, highways, energy, transportation, cement, mining, chemical and other industries.
“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

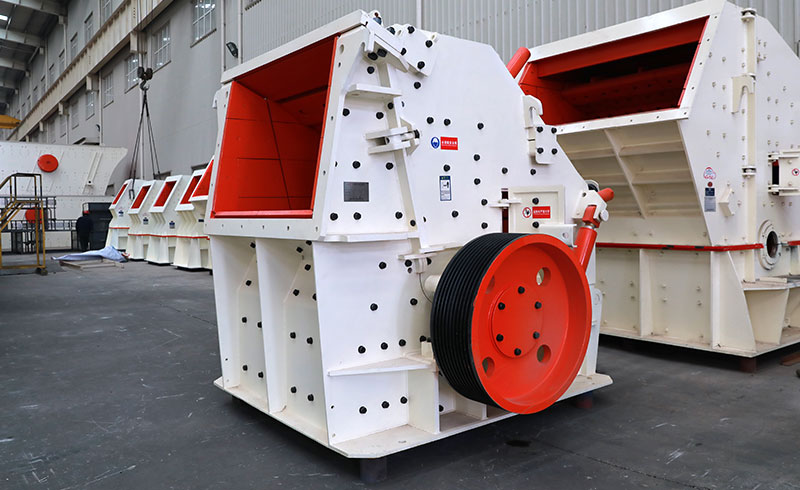

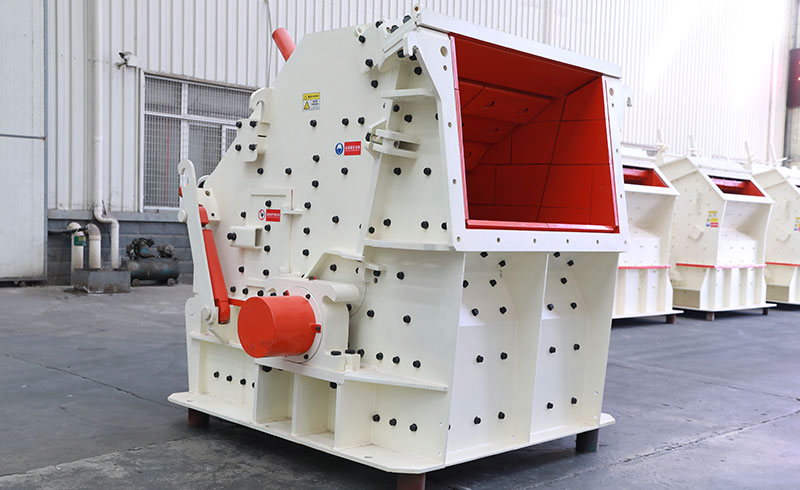

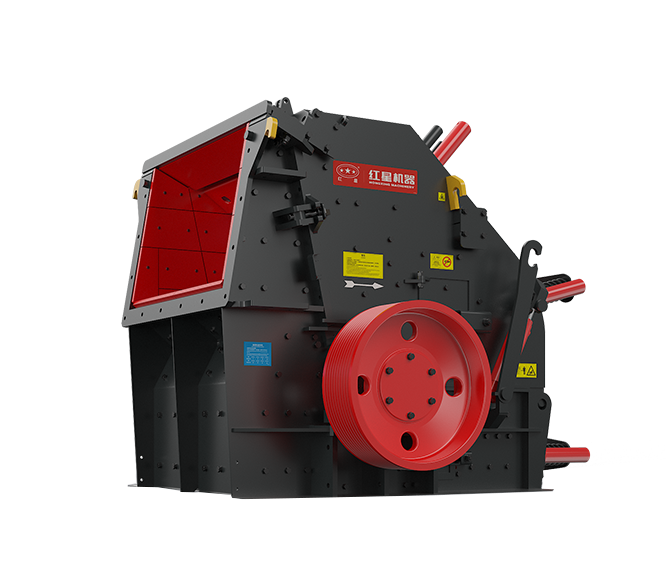

CI series new type impact crusher integrates the current domestic and international excellent impact crushing technology, optimizing the rotor and crusher cavity type according to different applications. A large number of new high wear-resistant materials are used, and the equipment performance and processing capacity are greatly improved.
1. Finely designed rotor and cavity type, rotating speed and power are reasonably matched to meet different application options for coarse crushing, medium, fine crushing, and material recovery.
2. The sturdy heavy-duty rotor structure increases the throughput and crushing ratio of the equipment; the high-quality welded structure ensures that the machine can withstand the large impact force and achieve a good crushing effect.
3. New high-abrasion materials are used in large quantities to reduce the wear of wear parts, extend the replacement cycle, and save costs.
How much is the CI series impact crusher? This is a question every user must have. Due to the complex market conditions, the price of the CI series impact crusher has great instability. However, compared with the same type of equipment, the price quoted by our company is more reasonable and more economical, which effectively meet the users’ selection requirements of high quality, low price. For detailed price and more production information, please consult online at any time.
Model | Maximum Feeding Size (mm) |
Main Motor Power (kw) |
Productive Capacity (t/h) |
Dimensions (L ×W ×H)(mm) |
CI1110 | 250 | 160 | 60-210 | 2826×2087×2285 |
CI1213 | 300 | 200 | 80-280 | 2903×2530×2411 |
CI1315 | 300 | 250 | 150-350 | 3320×2770×2535 |
CI1520 | 350 | 2×(200-250) | 250-600 | 3450×3620×2770 |
CI1313 | 600 | 200 | 200-480 | 2972×2560×2937 |
CI1415 | 600 | 250 | 250-600 | 2985×2790×3068 |
CI1620 | 800 | 2×(200-250) | 380-900 | 4261×3480×3780 |
CI2023 | 800 | 2×500 | 800-2000 | 5151×4424×4712 |
Model | Maximum Feeding Size (mm) |
Productive Capacity (t/h) |
CI1110 | 250 | 60-210 |
CI1213 | 300 | 80-280 |
CI1315 | 300 | 150-350 |
CI1520 | 350 | 250-600 |
CI1313 | 600 | 200-480 |
CI1415 | 600 | 250-600 |
CI1620 | 800 | 380-900 |
CI2023 | 800 | 800-2000 |
For customization, please contact us.
river pebble, granite, basalt, limestone, quartz, construction waste, etc.
