Range of application:Used for the high and fine powder making of over 280 kinds of non-flammable and combustible materials whose moisture is below 6% in such industries as mine, metallurgy, chemistry and building material.

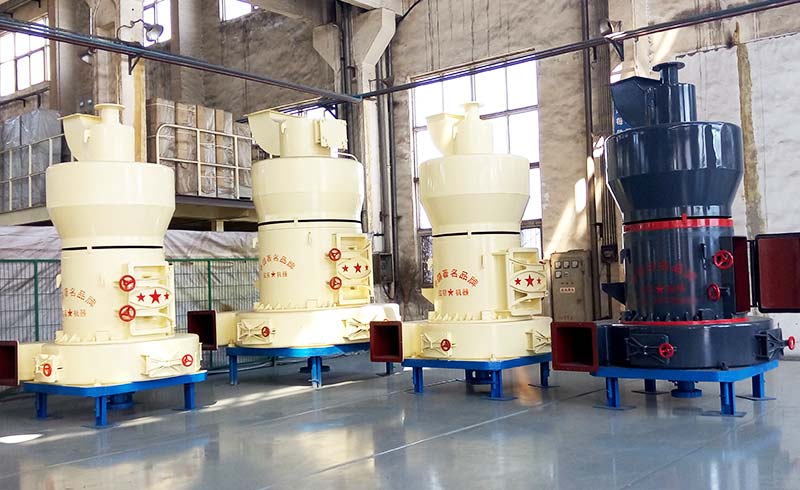

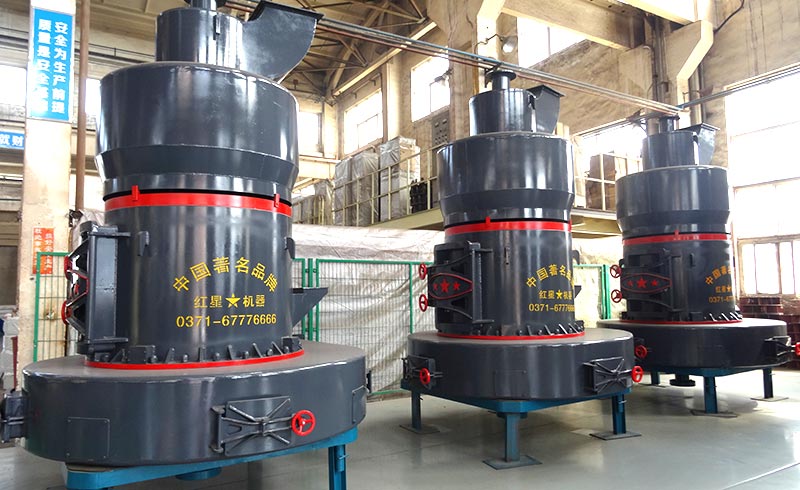

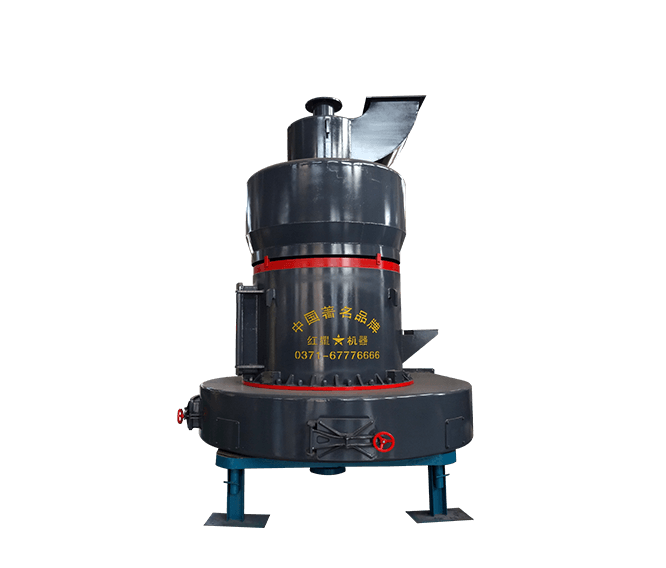

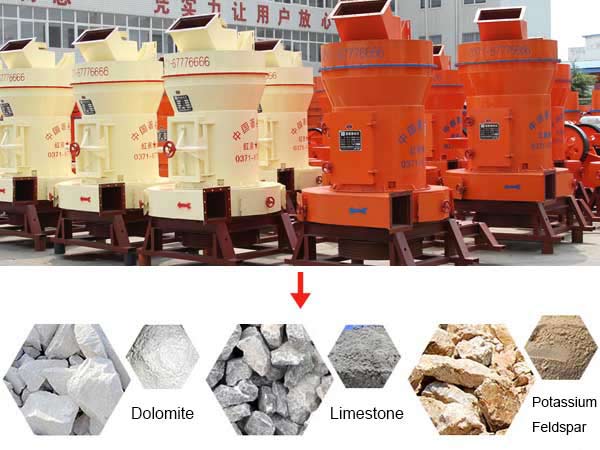

High strength pulverizer is suitable for grinding non-flammable and non-explosive materials whose Moh’s hardness is below 9.3 and humidity less than 6% such as barite, limestone, ceramics and slag in mine, metallurgy, chemistry and building material industry and the granularity of the final products can be adjusted between 80 and 425 meshes. The machine can produce coarse powders of 30-80 mesh through the special device inside the machine.
1. This pulverizer has stereochemical structure, small coverage size and a production system can be independently formed from massive materials to final powders.
2. The fineness of the final powders is even and the through-screen rate is 99%.
3. The transmission device adopts sealed gear case and belt wheel with stable transmission and reliable operation.
4. The main parts use fine steel materials and the wear-resistant parts use high performance wear-resistant materials, so that the whole machine has high wear-resisting property and reliable operation.
5. The electrical system is centrally controlled and the maintenance is convenient.

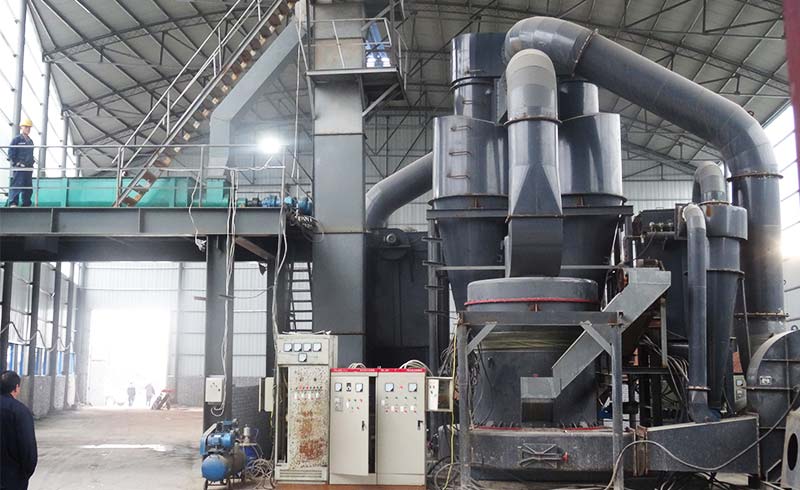

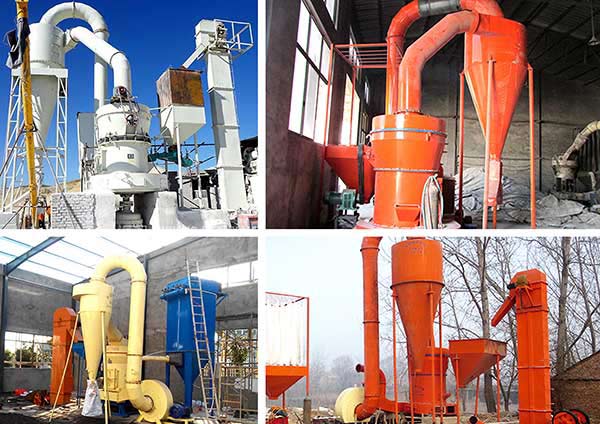

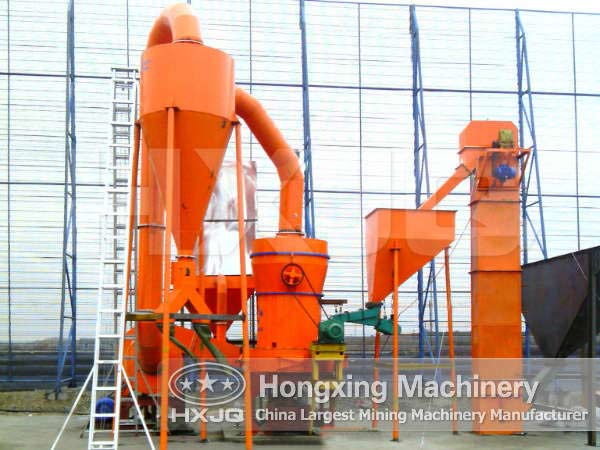

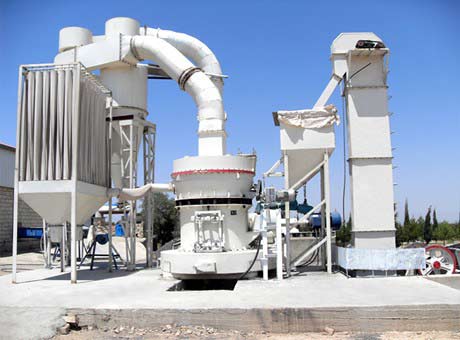

Inside the high strength pulverizer, there is a high pressure spring with 1000-1500 kilos of pressure on the cradle of the grinding roller. When this machine begins to work, the grinding roller rotates around the principal axis, and under the high pressure spring and centrifugal force, the grinding roller will roll to the grinding ring, and the pressure is 1.2 times higher than that of Raymond mill, so that the output is greatly improved. When the materials to be ground go into the grinding chamber, they are scooped up by the scraper knife and sent to the space between the grinding roller and the grinding ring for grinding, and the ground powders are brought to the analytical engine with the recirculating air of the blower, and the qualified fine powders flow into the cyclone powder collector with the air flow to become final products and the coarse powders will fall to the grinding mill for re-grinding.
The recirculating air returns to the blower to repeat the above process, and the remaining air will go into the bag type dust collector for cleaning. When the abrasion of the grinding roller and the grinding ring reaches a certain degree, the workers can adjust the length of the high pressure spring to maintain the constant grinding pressure between the roller and the ring, thus ensuring the stable output.
|Size of finished product
|Shift output of different material fineness
|Rotate speed of central shart
|Diameter of pulverizing ring
|Diameter of pulverizing roller
|Height of pulverizing roller
