Production Capacity: 0.2-38m/min
“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult
Flotation machine is used for extracting of metals like gold, argent, iron, lead, zinc, molybdenum, nickel and aluminum. It is also suitable for extracting of ferrous metal metals and non--metals

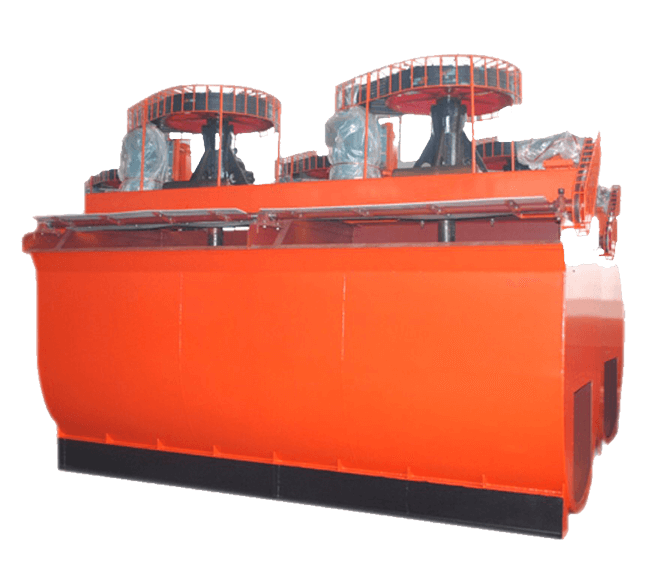

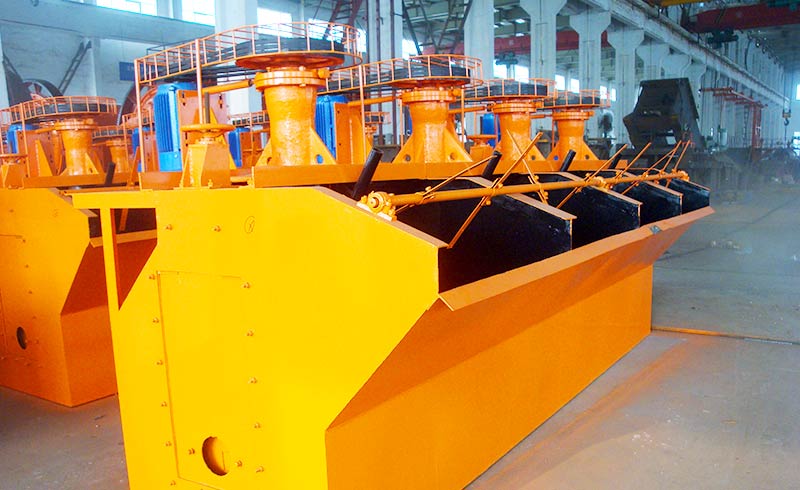

This type of flotation machine is formed by U trough solid, hollow shaft inflation, suspension rotor and new type impeller, The cone impeller lean backwards, the blending quantity is big and the pressure head is small, the advantages are: simple structure and low energy consumption. Inside the impeller, there is air distributor, which distributes air into most parts of impeller evenly.
Low Operating Cost : Compared with conventional mechanical stirring type flotation machine, it can save 1/3--1/2 of electricity.
The accuracy of the separation is high, the cleans ash is low : the cleaned coal ash can be reduced by 1-2%, compared with conventional mechanical stirring type flotation machine.
Vulnerable parts are durable : the impeller is always active in the machine, which plays a role in removing material deposit and debris, reducing the phenomenon of damaging parts due to clutter; the impeller of the agitator is made of grinding rubber, which enhances the wear resistance
Model | KYF-1 | KYF-2 | KYF-3 | KYF-4 | KYF-8 | KYF-16 | KYF-24 | KYF-38 | |
Chute Dimensions | Length(mm) | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 |
Width(mm) | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 | |
Height(mm) | 1100 | 1250 | 1400 | 1500 | 1950 | 2400 | 2900 | 3400 | |
Single effective Weight(t) | 1.1 | 1.5 | 1.9 | 2.3 | 3.6 | 5.9 | 9.9 | 15.1 | |
Effective cubage(m³) | 1 | 2 | 3 | 4 | 8 | 16 | 24 | 38 | |
Production Capacity calculated by slurry volume(m³/min) | 0.2-1 | 0.4-2 | 0.6-3 | 1.2-4 | 3—8 | 4—6 | 4—24 | 10—38 | |
Main shaft motor | Model | Y132M1-6 | Y160M2-8 | Y160L-8 | Y180L-8 | Y200L-8 | Y250M-8 | Y250M-8 | Y280S-8 |
Power(kw) | 4 | 5.5 | 7.5 | 11 | 15 | 30 | 30 | 37 | |
Rotate speed(r/min) | 960 | 720 | 720 | 970 | 730 | 730 | 730 | 740 | |
Diameter(mm) | 340 | 410 | 480 | 550 | 630 | 740 | 800 | 880 | |
Height(mm) | 215 | 256 | 300 | 340 | 390 | 460 | — | 545 | |
Rotate speed(r/min) | 281 | 247 | 219 | 200 | 175 | 160 | 150 | 138 | |
Circular velocity(m/s) | 5 | 5.3 | 5.5 | 5.76 | 5.77 | 6.7 | 6.25 | 6.36 | |
Loam board motor | Model | Y90S-4 | Y90S-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 |
Power(kw) | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
Rotate speed(r/min) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
Loam board | Rotate speed(r/min) | 18 | 18 | 16 | 16 | 16 | 16 | 16 | 16 |
Diameter(mm) | 500 | 500 | 580 | 600 | 600 | 700 | 700 | 500 | |
Wind pressure of fan(kpa) | ≥12.6 | ≥14.7 | ≥19.8 | ≥19.8 | ≥21.6 | ≥25.5 | ≥30.4 | ≥34.3 | |
Max. air injection amount(m³/㎡·min) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Model | Effective cubage(m³) |
Production Capacity calculated by slurry volume (m³/min) |
KYF-1 | 1 | 0.2-1 |
KYF-2 | 2 | 0.4-2 |
KYF-3 | 3 | 0.6-3 |
KYF-4 | 4 | 1.2-4 |
KYF-8 | 8 | 3—8 |
KYF-16 | 16 | 4—6 |
KYF-24 | 24 | 4—24 |
KYF-38 | 38 | 10—38 |
For customization, please contact us.
