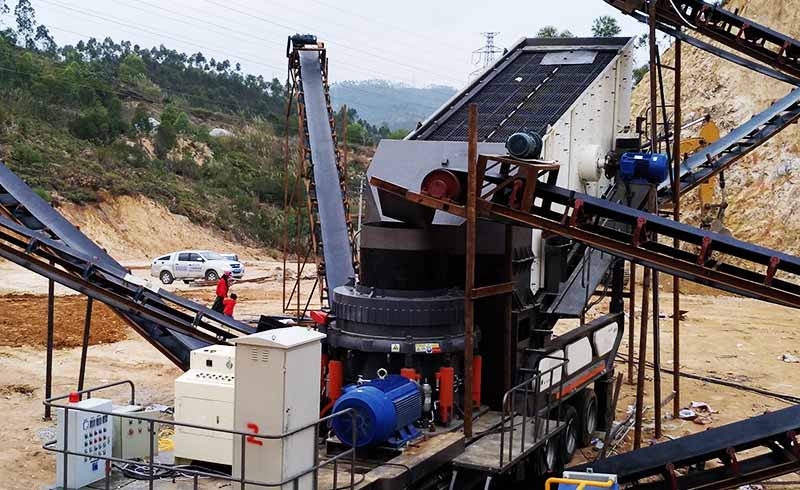

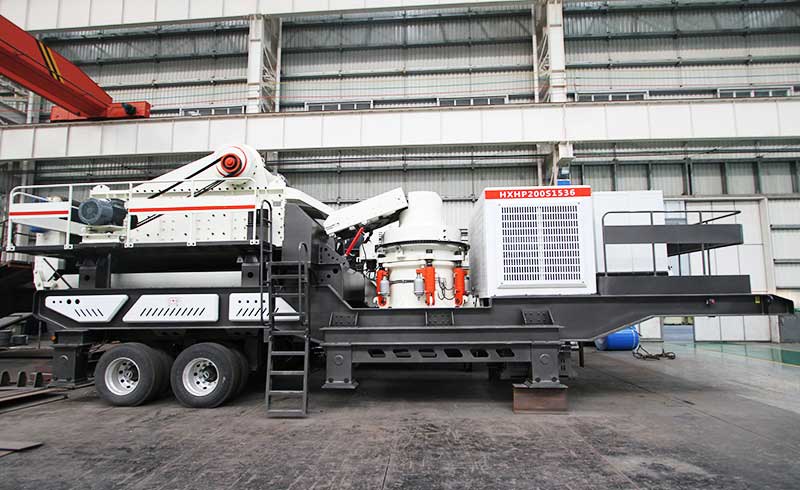

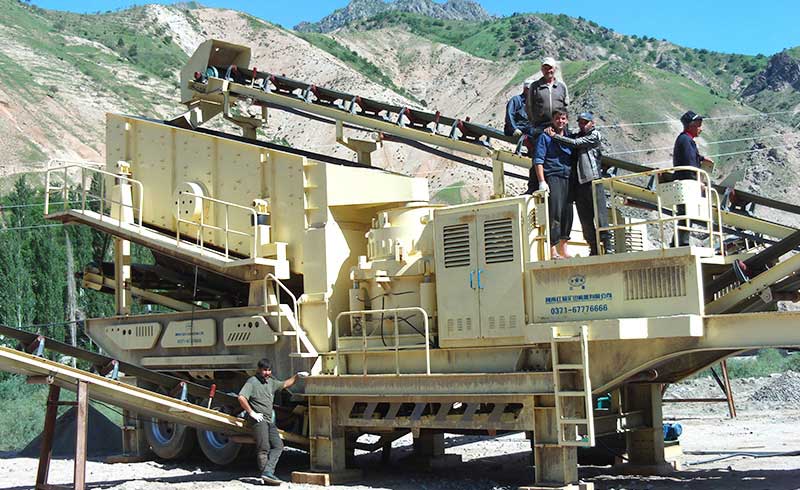

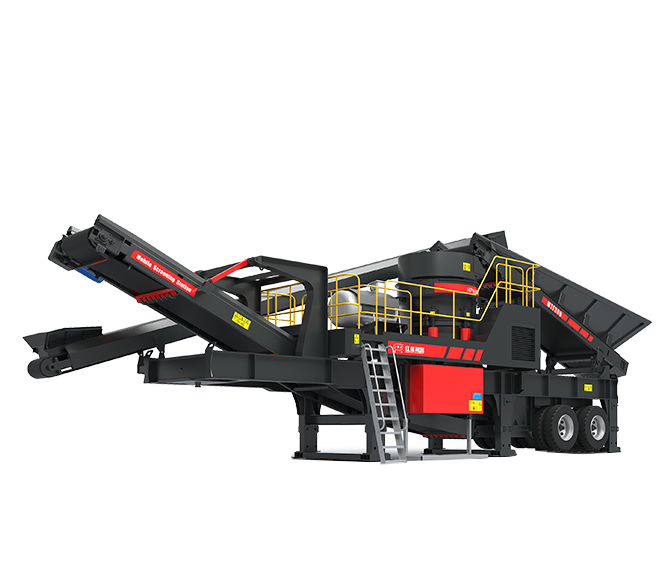

Mobile cone crusher is mainly composed of high efficient cone crusher, vibrating screen with perfect performance, belt conveyor, motor, controlling case and so on, which is applied in the industries of pharmaceutics, chemical, metallurgy, food and architecture.
1. The integrating installation of the equipments makes strong coordination.
2. Bottom head of the truck-mounted coarse Portable crusher station is high.
3. Mobile cone crusher acts the function of fine Portable crusher.
1. Good mobility;
2. Compact structure, easy to use;
3. Cost savings, low cost;
4. Higher suitability;
5. Stable performance, easy maintenance;
6. Flexible configuration.
Material is evenly fed into the crusher by feeder, then be crushed by primary cone crusher, so as to realize circle crushing through closed system constituted by circular vibrating screen. Finished material will be transported through conveyor for continuous crushing.
|Tire Configuration||biax fitted||triaxial fitted||triaxial fitted|
|Belt conveyor for discharging||PSG09||PSG130||HP300|
|Discharging Belt Conveyor||B650×7M||B800×7.5M||B800×7.5M|
|Belt conveyor1for re-crushing material||B650×9.5M||B800×9.5M||B800×9.5M|
|Belt conveyor2for re-crushing material||B650×5M||B800×6M||B800×6M|
|Under vibrating screen||B800×6M||B800×7M||B800×7M|
Production Capacity: 50-800t/h
Application Ranges: mining, stone crushing production
Stone crushing production line is mainly composed of vibrating feeder...
Equipment advantages:Reliable performance
Stone materials are evenly sent by vibrating feeder to jaw crusher for coarse crushing
Raw materials:granite, limestone, basalt, river cobble, bluestone, sandstone
Raw materials: granite, limestone, basalt, river cobble, bluestone, sandstone
Feeding size: 60-660mm
Applied material: concrete scrap, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz and coal.
Application area: mining, metallurgy, building construction, road, railways and so on.
