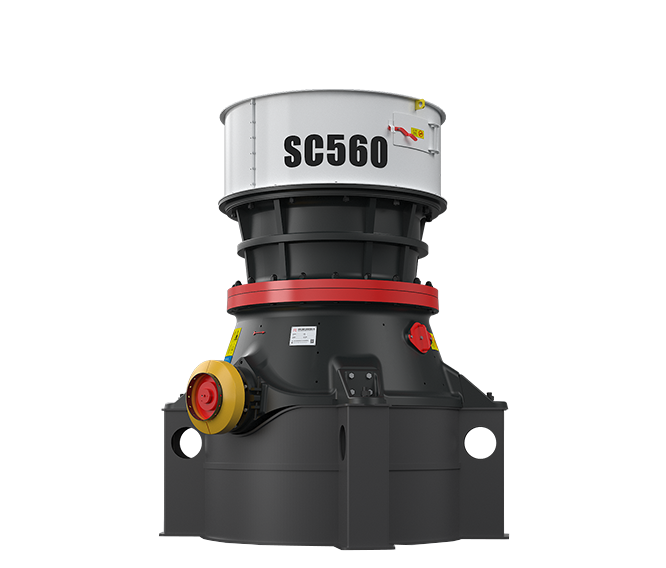

Single-cylinder cone crusher is divided into standard type and short-headed type which are used for medium crushing and fine crushing respectively. It is suitable for crushing all kinds of ores and rocks with high and over-medium hardness in medium, construction, water and electricity, transportation, chemistry and building material industry.
1. High efficiency.
2. Big production capacity.
3. High-quality final products.
4. Multiple cavity medium and fine crushing.
1. High efficiency. This hydraulic cone crusher has supporting device on both upper end and lower end of the principle axis, so that it can sustain bigger crushing force and stroke, plus the special crushing chamber corresponding to the lamination principle, making it have higher crushing efficiency.
2. Big production capacity. This hydraulic cone crusher perfectly integrates with crushing stroke, crushing speed and the shape of the crushing chamber, so that when the diameter of the big end of the movable cone is the same, the productivity of this cone crusher is improved by 35%~60% compared with that of traditional spring cone crusher.
3. High-quality final products. This hydraulic cone crusher uses unique crushing cavity and lamination crushing principle to produce crushing effect between particles, so that the cubic particles in the final products accounts higher proportion and the granularity is evener.
When single-cylinder hydraulic cone crusher works, the electro motor drives the pinion of the crusher, the pinion drives the rack wheel, the rack wheel assembly including rack wheel, rack wheel brace and eccentric steel bushing drives the eccentric bushing assembly including eccentric cylinder liner and eccentric copper bushing and the spindle unit including principal axis, inner cone and inner cone lining plate to revolves around the theoretical perpendicular line inside the copper bushing and the spindle unit can realize rotation around the central line of the principal axis inside the eccentric copper bushing.
|Adjustment range of discharge port (mm)||19-38||19-54||25-54||38-83|
Main machine of weight (kg)
|Adjustment range of discharge port (mm)||4-32||6-38||8-45||13-51|
|Main machine of weight (kg)||5700||9500||14500||28000|
Production Capacity: 50-800t/h
Application Ranges: mining, stone crushing production
Stone crushing production line is mainly composed of vibrating feeder...
Equipment advantages:Reliable performance
Stone materials are evenly sent by vibrating feeder to jaw crusher for coarse crushing
Raw materials:granite, limestone, basalt, river cobble, bluestone, sandstone
Raw materials: granite, limestone, basalt, river cobble, bluestone, sandstone
Feeding size: 60-660mm

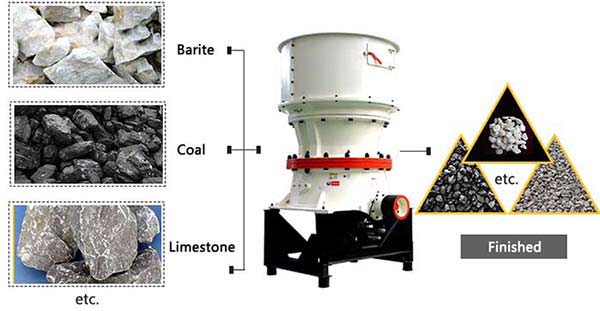

Applied material: concrete scrap, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz and coal.
Application area: mining, metallurgy, building construction, road, railways and so on.
