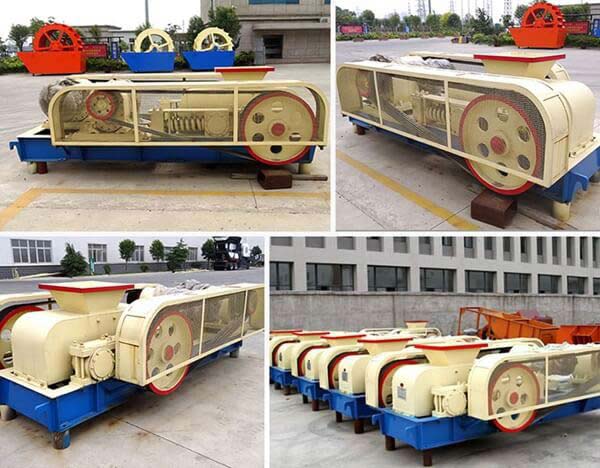

Roller crusher is suitable for crushing raw coal in coal, metallurgy, mine, chemistry and building materials industry especially in large coal mines and coal dressing plants. Roller crusher has very big crushing ability, and the electromotor is connected with the reducer with Limit type hydraulic coupler to prevent dynamic overload, so that the sensor is safe and reliable.
1. It is equipped with hydraulic automatic yielding device which can effectively dprevent the iron from damaging the roll and prevent wood and soft materials from damaging the normal work of the roll.
2. It is equipped with intelligent clearing device which can automatically remove the materials sticking on the chamber wall using the working intervals.
1. Compared with other types of crushers, this series of crusher has many advantages such as big crushing ratio, no requirement for the water content of the materials to be crushed, low noise, low vibration, low energy consumption, small coverage size and simple and convenient maintenance.
2. This machine adopts mechanical, equipment and hydraulic protective device and interlocking device, thus effectively protecting the electromotor, crusher and the whole system.
3. This product becomes the first choice of the heat-engine plant to replace import crushing equipment due to its advantages of high efficiency, energy conservancy and environment protection. It is suitable for crushing crisp materials with medium and low hardness such as soft coal, blind coal, lignite and gangue and also suitable for processing sinter, coke, slag, shale and limestone.

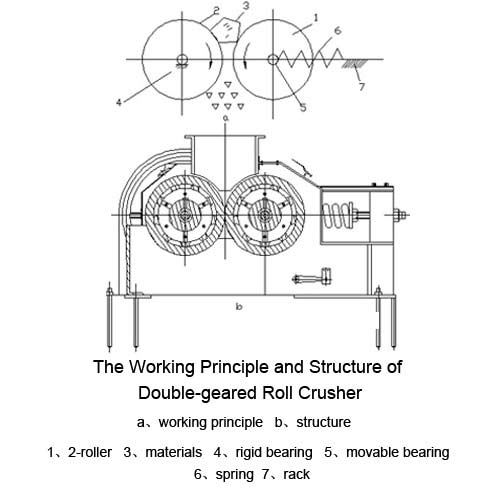

Toothed roll crusher is mainly composed of driving tooth, reducer, hydraulic coupler, electromotor, motor-driven fuel feed pump, passive toothed roll, arch toothed plate, side toothed plate, and side toothed plate base, lower frame and velometer.
Toothed roll crusher mainly splits and crushes the materials using unique wear-resisting toothed roll rotating with high speed, forming high-productivity mechanism. This toothed roll crusher is mainly composed of driving device, rack part, crushing roll, and mechanical spring device and link gear. Toothed roll crusher has very big crushing ability, and the electromotor is connected with the reducer with Limit type hydraulic coupler to prevent dynamic overload, so that the sensor is safe and reliable. The adjustment of the space between the two rolls belongs to hydraulic adjustment and the bearing of the rolls are lubricated centrally.
Production Capacity: 50-800t/h
Application Ranges: mining, stone crushing production
Stone crushing production line is mainly composed of vibrating feeder...
Equipment advantages:Reliable performance
Stone materials are evenly sent by vibrating feeder to jaw crusher for coarse crushing
Raw materials:granite, limestone, basalt, river cobble, bluestone, sandstone
Raw materials: granite, limestone, basalt, river cobble, bluestone, sandstone
Feeding size: 60-660mm
Applied material: concrete scrap, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz and coal.
Application area: mining, metallurgy, building construction, road, railways and so on.
