Vibrating Feeder

Vibrating Feeder

Processing ability: 80-1500t/h

  • Feeding size: 300-1500mm
  • Total weight:0.8-15.6t

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The feeder produced by our company is a linear vibrating feeder, which has the characteristics of stable vibration, reliable work and long life, etc. It can feed the materials continuously and uniformly, and screen the materials. It is widely used in the combined equipment of crushing and screening in mineral processing, building materials, silicate, and chemical industry.


Vibrating Feeder Features:

  1. The vibrating feeder with adjustable accessories, Change and control flow at any time, easy and stable adjustment

  2. The design of a closed body to prevent dust pollution effectively, environmentally sustainable

  3. Simple structure, uniform feeding, good continuous performance, realizing continuous feeding

  4. Good adjustment performance, stable vibration, which ensures smooth operation

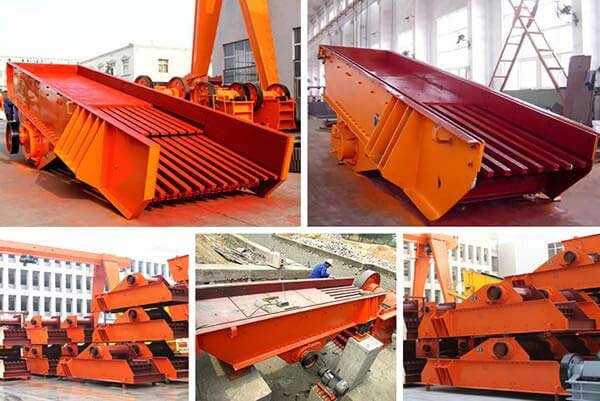

Product
presentation

Get a quote

The vibrating feeder is one of the equipment for the crushing line. Its main models are GZD-2500×5000, GZD-2000×3600, ZSW600×200 and other models. Its processing capacity is up to 1,500 tons per hour.

Regarding the price of the vibrating feeder, the price of the machine with different feeding capabilities is also different. Please tell us what materials you want to handle, how much processing capacity, we can provide you with the right products. You can contact us via online customer service or by email (info@hxjq.com) and we will send you a quote.

Technical data

  • Vibrating Feeder
Model Max.
Feeding
Size
(mm)
Processing
Capacity
(t/h)
Motor
Power
(kw)
Obliquity
of material
trough
(°)
Trough
size
(mm)
Dimensions
(L×W×H)(mm)
GZD-650×2300 300 80-100 1.2×2 10-20 650×2300 2300×1360×780
GZD-750×2500 350 100-130 1.5×2 10-20 750×2500 2500×1460×780
GZD-850×3000 400 120-150 3×2 10-20 850×3000 3110×1800×1600
GZD-1000×3600 500 150-200 3.7×2 10-20 1000×3600 3850×1950×1630
GZD-1100×3600 580 240-300 3.7×2 10-20 1100×3600 3600×2050×1660
GZD-1300×3600 650 450-600 7.5×2 10-20 1300×3600 3900×2350×1750
GZD-1500×3600 1050 450-1000 7.5×2 10-20 1500×3600 3900×2000×1750
GZD-2000×3600 1200 550-1000 10×2 10-20 2000×3600 3600×2000×1750
GZD-2500×5000 1500 650-1500 18×2 10-20 2500×5000 5000×2500×1800
ZSW-380×95 500 100-180 11 0-10 3800×960 3920×1640×1320
ZSW-490×110 630 150-400 15 0-10 4900×1100 4980×1830×1320
ZSW-490×130 750 400-700 22 0-10 4900×1300 4980×2580×2083
ZSW-600×130 750 400-700 22 0-10 6000×1300 6082×2580×2083
ZSW-600×150 800 500-900 30 0-10 6000×1300 6086×2662×1912
ZSW-600×180 900 700-1300 45 0-10 6000×1500 6310×3262×2230
ZSW-600×200 1200 800-1500 55 0-10 6000×2000 6310×3462×2230
  • Vibrating Feeder
Model Max.
Feeding
Size
(mm)
Processing
Capacity
(t/h)
GZD-650×2300 300 80-100
GZD-750×2500 350 100-130
GZD-850×3000 400 120-150
GZD-1000×3600 500 150-200
GZD-1100×3600 580 240-300
GZD-1300×3600 650 450-600
GZD-1500×3600 1050 450-1000
GZD-2000×3600 1200 550-1000
GZD-2500×5000 1500 650-1500
ZSW-380×95 500 100-180
ZSW-490×110 630 150-400
ZSW-490×130 750 400-700
ZSW-600×130 750 400-700
ZSW-600×150 800 500-900
ZSW-600×180 800 700-1300
ZSW-600×200 1200 800-1500

For customization, please contact us.

Applied materials:

river pebbles, limestone, dolomite, granite, coal, diabase, basalt, construction waste, etc.
