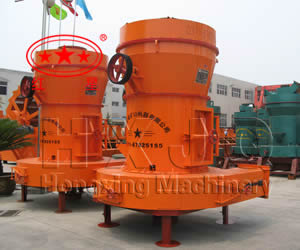

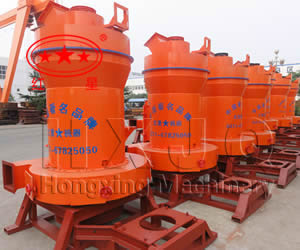

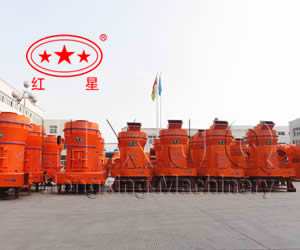

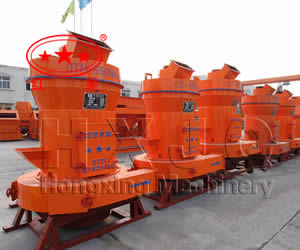

Raymond mill

The machine is used for grinding the barite, limestone, kaolin, ceramet, slags, etc, below scale 9.3 of Mohs hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgical industrial, chemical engineering and building material for high fine powder generation and processing. The product size is adjustable in the range of 80-325 (600 the largest) meshes. It is possible to produce 30-80 mesh coarse powder through special device in the machine.

Working principles:

When it is put into use, the materials to be grinded are put into the main frame through the feed-in bin on the side cover. Then it revolves round the vertical axis line by the milling roller hung on the star rack. With the centrifugal force by rotation, milling roller wings outside and presses fast on milling rings to make relieving tool carry materials between milling roller and ring, thus the materials are crushed by the rolling and milling of the milling roller.

Raymond Mill Features:

1. Three-dimensional structure.
2. Land-saving.
3. The screen-passing rate can reach to 99%.
4. The transmission is steady and reliable.
5. The transmission device of mainframe adopts airtight gear case and zonal wheel.
6. Centralized control for the electric system, convenient to operate.

Technical parameters of Raymond mill

Note: For product inquiry or order requirements, please click on the "Product Order." Fill in the demand for relevant staff to contact you quickly!
