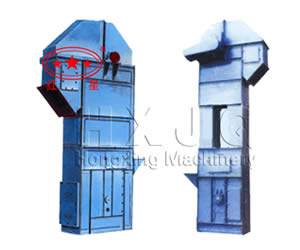

Plate Chain Bucket Elevator Introduction:
The machine is applied in the vertical conveying of abrasive powder, granular and small lump materials, such as grain, coal, cement and crushed ore, etc., and its transportation height can reach to 40m. The bucket chains are characterized by simple structure, stable operation hybrid or gravity discharge. The wheel rim uses combination sprocket, and it is easy to replace and has been specially treated to ensure a long service life. The underpart is equipped by gravity automatic tensioning device, so that it can maintain a constant tension to avoid slipping off the chain. The material temperature can not exceed 250 ℃.
Working Principle of Bucket Elevator:
Hopper scoops up materials from the stone bucket below, then is lifted to the top with the conveyor belt or chain, and next it is downward rolled over bypass the wheel on the top and the materials are dumped into the accept slot now by bucket chain or hoist conveyor, and the whole process is over. The driving band of bucket elevator with driver is commonly made of rubber, and it is installed below or above the drive roller and the divert roller. The chain-drive bucket elevator is generally equipped with two parallel transmission chain, on which above or below is a drive sprocket and a divert sprocket. Bucket elevators are generally equipped with chassis to prevent the dust flying into the bucket elevator.
1. Excellent sealing, less environmental pollution.
2. Easy Operation and maintenance, less wearing parts.
3. Energy conservation and less maintenance ensure the machine a very low cost.
4. Advanced design principle has ensured the reliability of machine operation.
5. High accuracy. The housing case is of good rigidity and beautiful appearance by the edge folding and intermediate beading.
6. Small size. Compared with other machines which have the same lifting capacity, size of this machine is smaller.
7. Transmission capacity. The series hoist NE15~NE800 a variety of specifications. Enhance the volume range of 15 to 800m3 / h.
Our company manufactures various bucket elevators, such as bucket conveyer, bucket type lifter, ore elevator machine, mixing bucket and stone bucket.
Technical parameters of bucket elevator
|Model||Max. lifting height (m)||Conveying amount (m3/n)||Pitch of buckets (mm)||Motor power (kw)|
