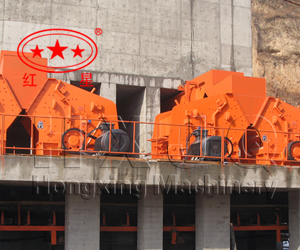

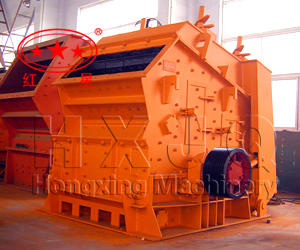

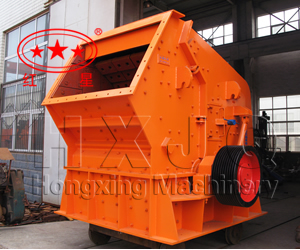

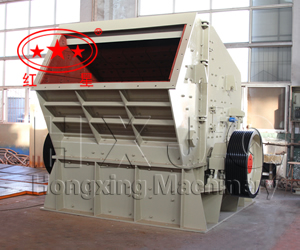

Brief Introduction to Impact Crusher:
Impact crusher, which can also be called impact breaker or impact crushing machine which is mainly used for crushing many kinds of large, medium and small materials with side length less than 500mm and compression resistance no more than 350Mpa. Hongxing stone impact crusher is an optimized crushing machine after adopting advanced techniques at home and abroad and it is widely used in building material, hydroelectricity, artificial stone and sand, highway, etc.
Main Types of Impact Stone Crusher:
Impact stone crusher is one of the most frequently used mining crusher in the mining industry. Its wide application has long been recognized in the mineral processing industry due to its high processing capacity of the minerals, so that it is also called mineral impact crusher. Nowadays, the transportation fees of the equipment is very high and it is also very inconvenient to move the large equipment, in order to solve this problem, mobile impact crusher is researched and developed. Hongxing Machinery is a professional manufacturing and exporting base of China impact crusher in Henan Province and the impactor breaker enjoys high popularity among customers.
Features of Impact Crusher:
1. Connected with locking sleeve assembly.
2. The blow bar with high chrome.
3. Hydraulic or hand opening.
4. Impact plate with a special shape.
5. Crushed product with cubical shape.
6. Reliable operation.
Working Principle of Impact Crusher:
When the mineral impact crusher works, the motor drives the rotor of the impact crusher with high speed, on the rotor where hammers installed. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet of crushing chamber.
Technical parameters of Impact crusher
|Model||Specification (mm)||Opening Size (mm)||Max. feeding side length(mm)||Capacity (t/h)||Power (kw)||Weight (kg) (Without motor)
||Dimensions (l*w*h) (mm)|
Note: For product inquiry or order requirements, please click on the "Product Order." Fill in the demand for relevant staff to contact you quickly!
