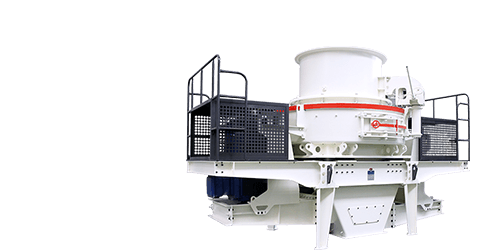

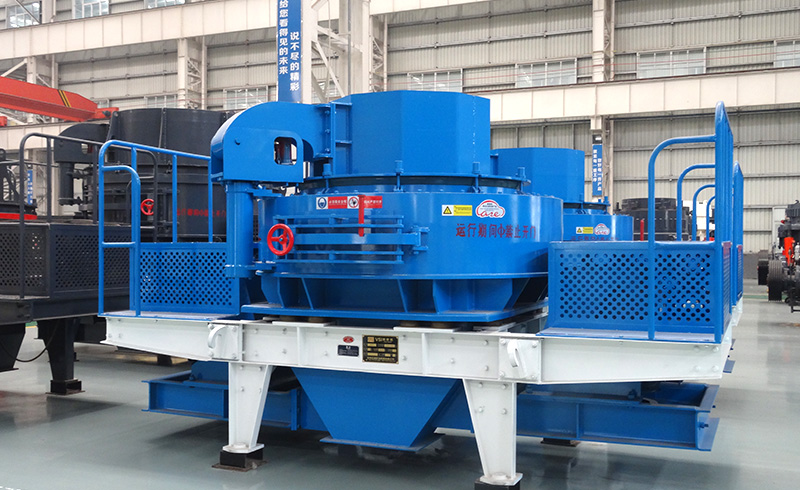

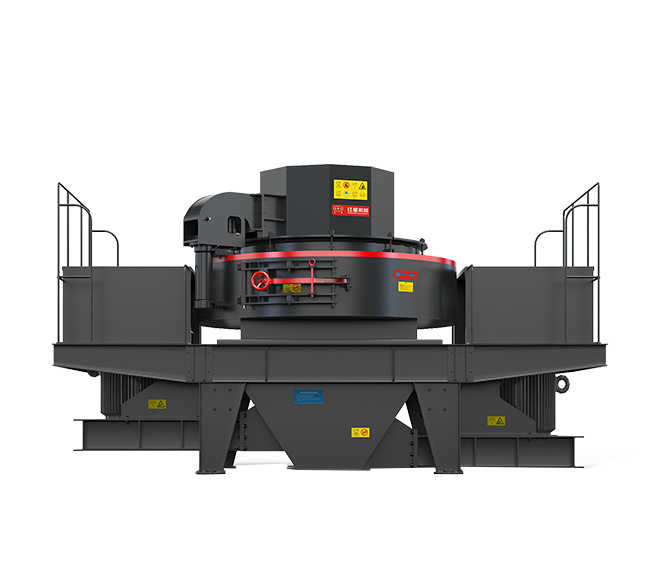

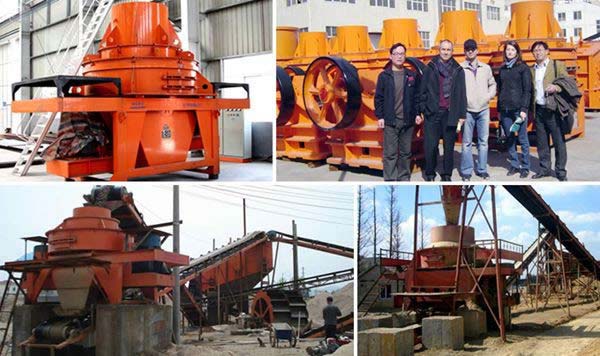

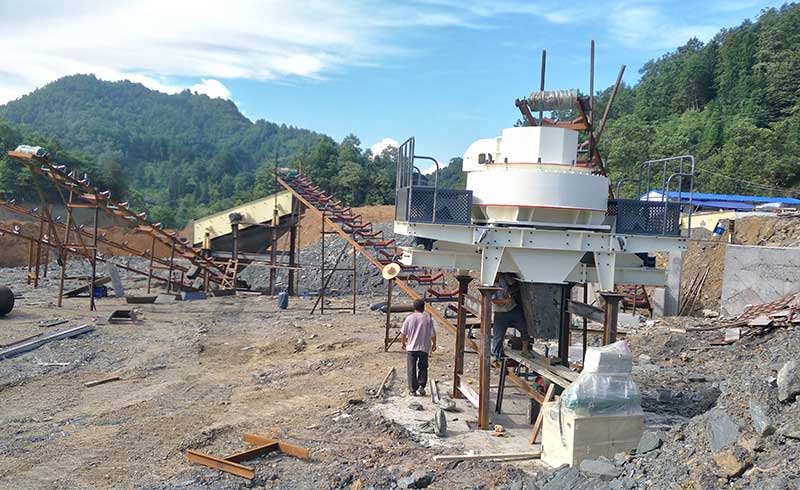

Sand Making Machine is suitable for the medium and fine crushing of various hard and crisp materials such as various rocks, abrasive materials, refractory, cement clinker, quartz stone, iron ore and concrete aggregate, and especially suitable for making building sand and road paving sand and stone.

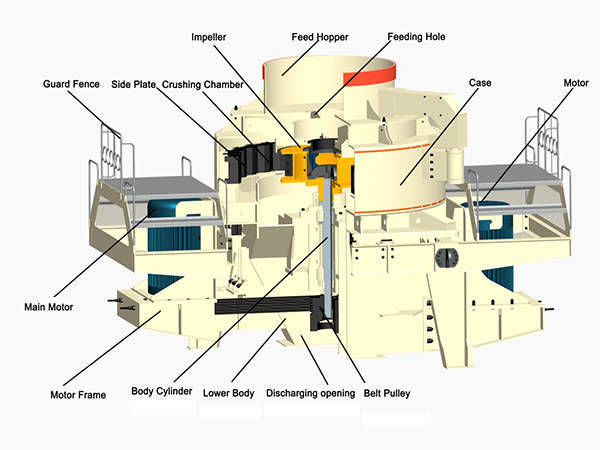

Sand Making Machine is mainly composed of feeding device, distributor, and whirling motion crushing chamber, impeller, principal axis assembly, pedestal driving device and motor.
1. This machine is a new type medium and fine stone crushing machine developed in the 1990s and also the machine type that is widely used to replace cone crusher, double-roll crusher and ball mill in the world.
2. It has novel and unique structure and stable operation.
3. This machine is low in energy consumption, high in output and big in crushing ratio.
4. The equipment is small in size, simple and easy in operation and convenient in installation and maintenance.
The materials go into the crusher from the feed hopper and are separated into two parts by the distributor. One part goes into the impeller rotating with high speed from the middle of the distributor, and is quickened inside the impeller, and the acceleration can reach hundred times of the acceleration of gravity, and then the materials will cast from the three uniformly distributed runners of the impeller at a speed of 60-70m/s, and impact and crush with the other part of materials which fall from around the distributor and then they will together impact to the material lining inside the vortex cavity. Bounced from the material lining, the materials will impact obliquely upward to the top of the whirling motion chamber which will change their movement direction again, so that materials will move down, and the materials launching from the runners of the impeller will form a continuous material curtain. In this way, the materials will get two times or more hitting, friction, grinding and crushing effect inside the whirling motion crushing chamber. The crushed materials will be discharged from the bottom discharging mouth. This process will form a closed-circuit system together with the cyclic screening system and generally speaking, after three times of cycle, the materials will be crushed below 20Moh.
|Power supply||380V 50HZ|
|Vibrating sensor||Detect range 0.1-20mm/s continous and adjustable.|
|Double oil pumps assure enough oil supply:automatic
switch off with no oil stream or pressure,water cooling
in summer,motor heating stare-up in winter.
|Power of oil
Production Capacity: 50-800t/h
Application Ranges: mining, stone crushing production

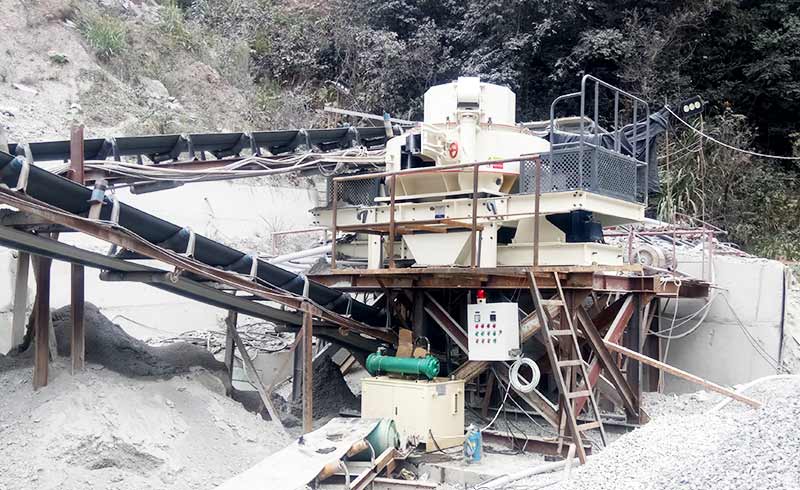

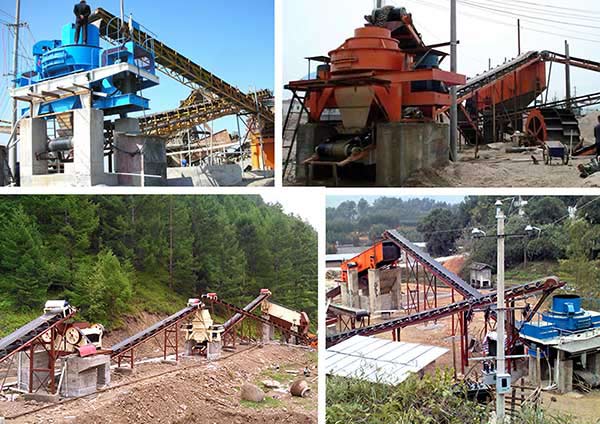

Stone crushing production line is mainly composed of vibrating feeder...
Equipment advantages:Reliable performance
Stone materials are evenly sent by vibrating feeder to jaw crusher for coarse crushing
Raw materials:granite, limestone, basalt, river cobble, bluestone, sandstone
Raw materials: granite, limestone, basalt, river cobble, bluestone, sandstone
Feeding size: 60-660mm

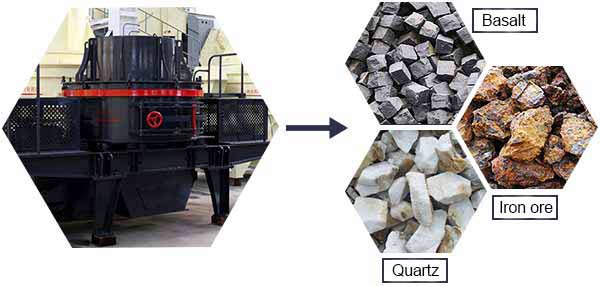

Applied material: concrete scrap, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz and coal.
Application area: mining, metallurgy, building construction, road, railways and so on.
