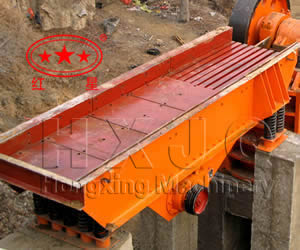

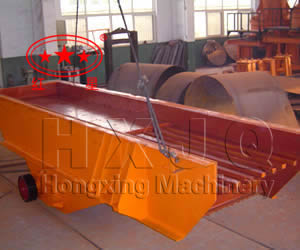

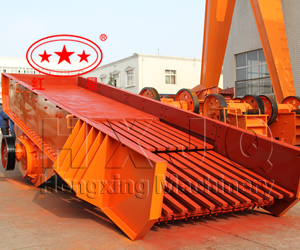

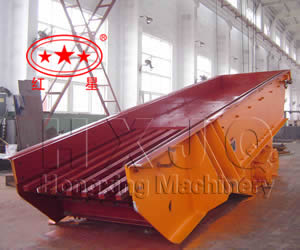

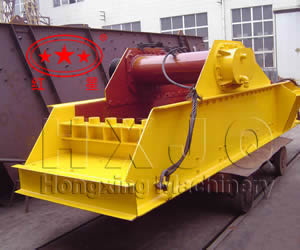

The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from Silo to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. The Vibrating grizzly Feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc. Ore vibrating feeder can feed block or granule materials from the material storage to charging device evenly and continuously. It can realize even feeding for crushers in sandstone production line and make rough screening for materials. Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine ion, building materials, chemicals, etc.

Working Principle of China vibrating Feeder:

There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like Para curve, then fall down. The materials will move forward on the slope surface of the feeder.

Characteristics of Feed grizzly:

1.Smooth vibration
2.Reliable operation
3.Long service life
4.Low noise
5.Low power consumption
6.Easy to adjust
7.Simple structure
8.Easy to install
9.Light weight
10.Small volume
11.Simple maintenance

Technical parameters of vibrating feeder
