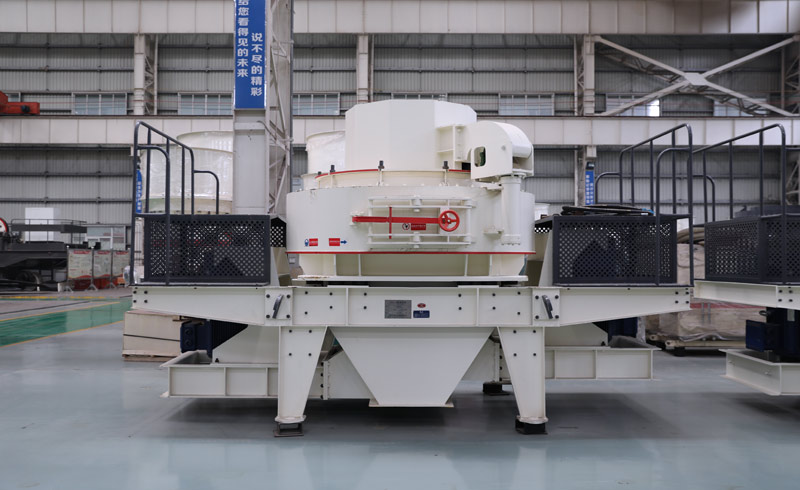

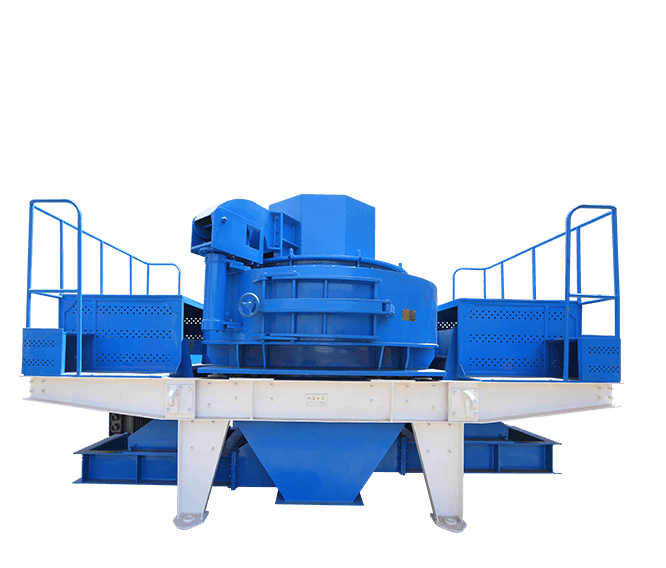

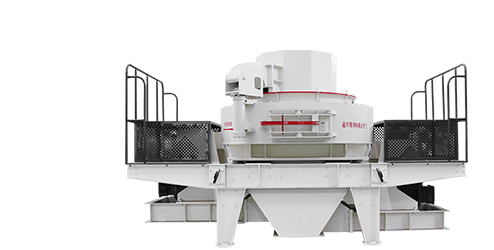

VSI Crusher

VSI Crusher

Application fields: metal and non-metallic ore, building materials, artificial sand and various metallurgical slag crushing and shaping.

  • Processing capacity:60-520t/h
  • Max.Feeding size:30-50mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

VSI crusher is an advanced equipment, mainly used in construction, highway, railway, concrete and other industries, usually composed of jaw crusher, impact crusher, sand washing machine, vibrating screen, conveyor and other equipment, which plays an important role in improving the grade of finished stone.

VSI Crusher Features:

  1. Product granularity can be flexibly controlled to meet the requirements of different processing plants for material size and shape.

  2. VSI crusher equipped with the dust collector and silencer, which can eliminate the generated dust and noise, create a beautiful working environment for the processing plant.

  3. Deep chamber rotating design; high throughput, production increases by more than 20%.

  4. The unique design of the hydraulic opening device simplifies the replacement process of the accessories, which ensures the safe and stable operation of the equipment.

Product
presentation

After-sale Service

Hongxing adheres to the service concept of creating value for clients and satisfying clients’ needs, with high speed, advanced techniques, and sincere attitude.

Service Concept: Creating value for clients; satisfying clients’ needs.

Service Target: Beyond clients’ expectation; beyond industry standards.

Service Strategy: To lower the clients’ cost by the standard, diverse, and beneficial service, to increase Hongxing’s competitiveness in brand and service.

Service Guarantee: 24h online technical people for you; if the fault hasn’t been disposed of completely, our service engineer can’t leave the actual site until we get the client’s permission.

Technical data

  • VSI Sand Maker
Model HXVSI-7611 HXVSI-8518 HXVSI-9526 HXVSI-1140 HXVSI-1145 HXVSI-1150
Capacity
(t/h)
Feed both
at center
 and sides
120-180 200-260 300-380 450-520 500-610 520-650
Feed at
center
60-90 100-130 150-190 225-260 245-355 255-365
Max.feeding
size(mm)
Soft
material
35 40 45 50 50 50
Hard
material
30 35 40 40 45 45
Rotation
speed
(r/min)
1700-1890 1520-1690 1360-1510 1180-1310 1150-1300 1150-1300
Double Motor
power(kw)
4P   110 4P   180 4P   264 4P   400 4P   400 4P   500
Overall dimension
(L×W×H)(mm)
3700×2150×2100 4140×2280×2425 4560×2447×2778 5100×2700×3300 5500×2700×3300 5500×2700×3300
Power supply 380V 50HZ
Lubrication
station
Double
motor
power of
oil pump
2×0.31Kw
Safety
assuance
Double oil pumps assure enough oil supply:automatic
 switch off with no oil stream or pressure,water cooling
in summer,motor heating stare-up in winter.
Overall
dimension
(L×W×H)
(mm)
820×520×1270
Power of oil
 tank heater
2KW
  • VSI Sand Maker
Model Capacity
(t/h)
Feed both
at center
 and sides
Feed at
center
HXVSI-7611 120-180 60-90
HXVSI-8518 200-260 100-130
HXVSI-9526 300-380 150-190
HXVSI-1140 450-520 225-260
HXVSI-1145 500-610 245-355
HXVSI-1150 520-650 255-365

For customization, please contact us.
