TK Series Sand Maker

TK Series Sand Maker

Applications: sand and gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.

  • Processing capacity: 45-450t/h
  • Feeding size:<40mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

TK series sand maker is also called vertical shaft impact crusher (sand maker). This type of machine adopts a unique thin oil lubrication system, increasing the lubrication performance and service life. High-performance non-contact labyrinth seals are wear-free and increase the reliability of dust barriers. Also, the parts of the equipment are wear-resistant, which can reduce the maintenance cost, and the general life can be increased by more than 30%.

TK series sand maker applications and applicable materials

TK Series Sand Maker Features:

  1. 1. “stone impact stone” technology reduces the need for wear parts.

  2. 2. It is possible to control the size of the product so that the fineness is produced as large or as small as possible.

  3. 3. The equipment is widely used in the metal and non-metallic ore, building materials, artificial sand, and various metallurgical slag crushing and shaping.

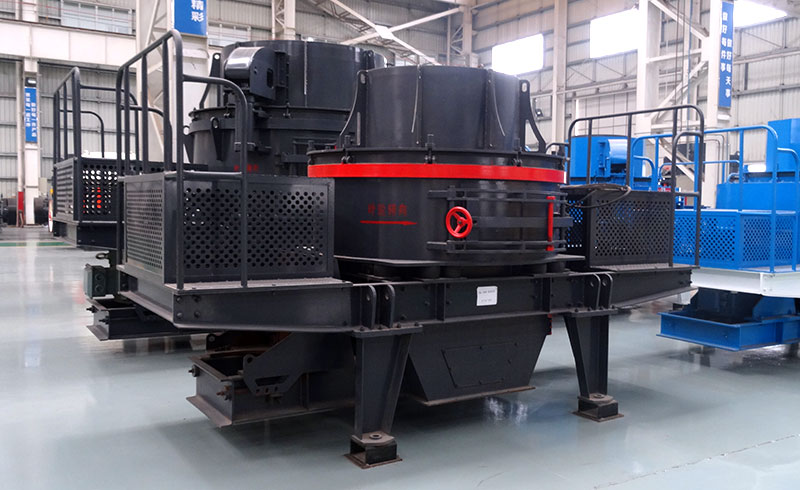

sand making machine

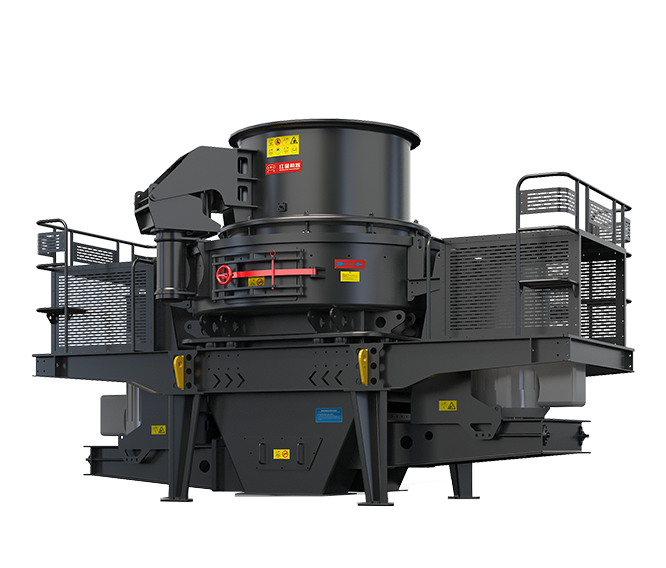

TK series sand maker

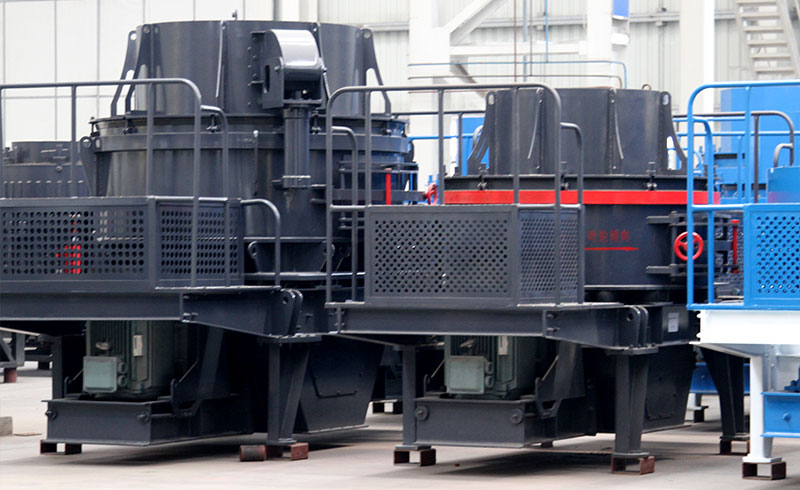

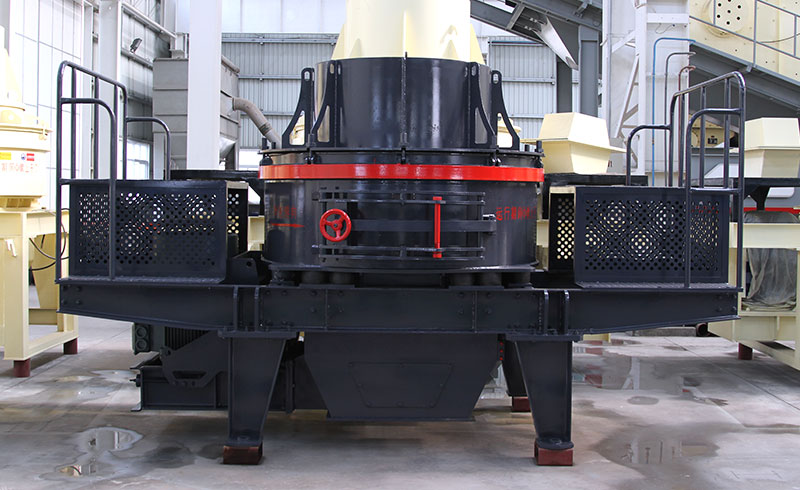

sand maker
Product
presentation

Why Choose Hongxing

The Hongxing machine is an early manufacturer engaged in the design, development, and production of TK sand making machines. The manufacturing process is advanced, the technology is exquisite, and the talent team is huge.

Our company is a typical direct selling type of equipment. There is no middleman to earn the difference and the expected profit is low. Therefore, the price positioning of the TK sand making machine is much lower than the market price.

Hongxing Machinery will provide users with various after-sales services such as installation, commissioning, repair, and maintenance of TK sand machine, ensuring that users have no worries.

Technical data

  • TK Series Sand Maker
Model Capacity(t/h) Max. Feeding size(mm) Motor power(kw) Max.dimensions(mm)
Soft material Hard material
TK7809 45-115 <30 <25 4P   90KW 4000×1970×2250
TK7811 60-150 <30 <25 4P   2×55KW 4000×1970×2250
TK8618 120-250 <35 <30 4P   2×90KW 4300×2340×2790
TK8622 150-330 <35 <30 4P   2×110KW 4300×2340×2790
TK9626 190-380 <40 <35 4P   2×132KW 4750×2555×2960
TK9632 220-450 <40 <35 4P   2×160KW 4750×2555×2960
  • TK Series Sand Maker
Model Capacity
(t/h)
Max. Feeding
 size(mm)
Soft
material
Hard
material
TK7809 45-115 <30 <25
TK7811 60-150 <30 <25
TK8618 120-250 <35 <30
TK8622 150-330 <35 <30
TK9626 190-380 <40 <35
TK9632 220-450 <40 <35

For customization, please contact us.

Materials:

river pebble, granite, basalt, iron ore, limestone, quartz, diabase, etc.
