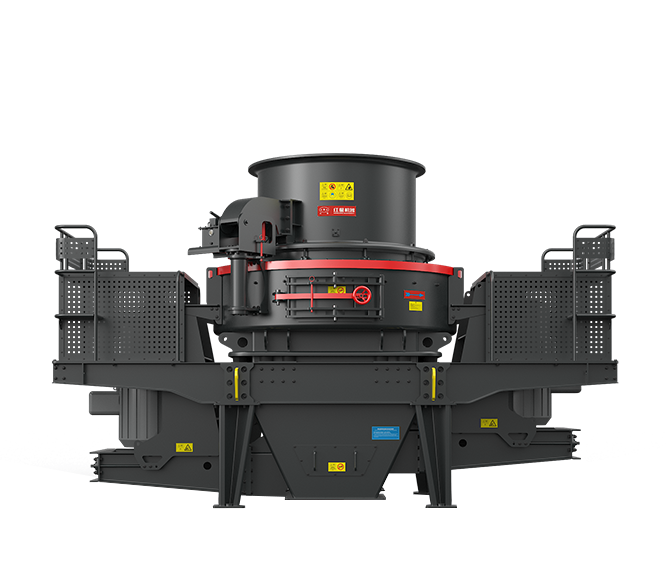

HVI Impact Sand Maker

HVI Impact Sand Maker

Application fields:metal and non-metallic ore, building materials, artificial sand and various metallurgical slag crushing and shaping.

  • Processing capacity:70-585t/h
  • Max.Feeding size:30-55mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The HVI impact crusher is the product of a new generation, developed by our company, with the introduction of German technology, absorbing the advanced techniques of similar products at home and abroad. It is becoming the core equipment for the machine-made sand industry, widely used to crush and reshape metallic and non-metallic ores, building materials, artificial sand, and various metallurgical slag. It can turn stone materials into gravel and sand with different particle sizes.

HVI Impact Sand Maker Features:

  1. Deep cavity impeller, throughput increased by 30%.

  2. The ambient guard plate can be turned up and down to prolong the service life.

  3. Combined material throwing head, it only needs to replace the worn parts, which can reduce the cost of 30%.

  4. Feeding material from the center and around, flexible adjustment, easy conversion of feeding methods.

  5. Lubrication methods can be selected, the thin oil-type and the grease-type modular designs of the bearing chamber can be interchanged integrally.

Product
presentation

Learn More About Us

The sand making equipment produced by our company is mainly: HVI sand making machine, VSI sand making machine, HX sand making machine and so on.

A complete set of sand making machine production line will be composed of crushing equipment, sand making equipment and conveying equipment. According to different process requirements, various types of equipment are combined to meet the different needs of customers.

The products are sold to more than 160 countries and regions around the world. Such as South Africa, Zimbabwe, Nigeria, Ethiopia, Saudi Arabia, Philippines, Indonesia, Mexico, Brazil and other countries. We guarantee 100% ex-factory price. If you need more product information or price list, you can contact our online customer service for free, or send an email to info@hxjq.com

Technical data

  • HVI Sand Making Machine
Model Sand Shaping Sand Making Sand Shaping Sand Making Motor Power(kw)
Max.Feeding Size (mm) Throughput(t/h)
HVI 0815  <30 <35  70-140  130-230  2×75
HVI 0818 <30 <35 80-190 165-283 2×90
HVI 0922 <35 <40 105-145 220-330 2×110
HVI 0926 <35 <40 120-190 240-380 2×132
HVI 1032 <40 <45 181-278 246-356 2×160
HVI 1040 <40 <45 262-284 350-440 2×200
HVI 1250 <45 <50 345-371 414-540 2×250
HVI 1263 <50 <55 453-498 521-585 2×315
  • HVI Sand Making Machine
Model Sand Shaping Sand Making Motor Power (kw)
Max.Feeding Size (mm)
HVI 0815  <30 <35  2×75
HVI 0818 <30 <35 2×90
HVI 0922 <35 <40 2×110
HVI 0926 <35 <40 2×132
HVI 1032 <40 <45 2×160
HVI 1040 <40 <45 2×200
HVI 1250 <45 <50 2×250
HVI 1263 <50 <55 2×315

For customization, please contact us.

more

VSI Sand Making Machine

Final Products in Nice Particle Shape High output Final Products with High Fineness Durable and efficient
VSI Sand Making Machine
more

Wheel Type Sand Washer

Simple Structure Stable Operation High Output Less Sand Loss
Wheel Type Sand Washer
Applied materials:

river pebble, basalt, quartz sand, quartz stone, pebbles, bluestone, granite, etc.
