Dismantle of Jaw Breaking Machine

In the repair work of jaw crusher, the most easy wear and tear part is changing the driving plate. As for this type of crusher that its connecting rod is ensemble, you need dismantle the driving plate, firstly screw out the dam-board bolt, cut down the lubrication pipe and hang the driving plate on the grab hook of the crane or other lifter machines, and then you may let go of the spring of horizontal connecting rod and pull the movable jaw to the direction of the fixed jaw and take the plate out. If you are going to take out the rear plate, then you need to pull open together the rod and the front driving one and then you can take it out.

After it is dismantled, you need to cut down the rare lubrication oil and cooling water pipe. By way of supporting it with a frame on the bottom of the rod, you are able to unsnatch the cap and lift it out.

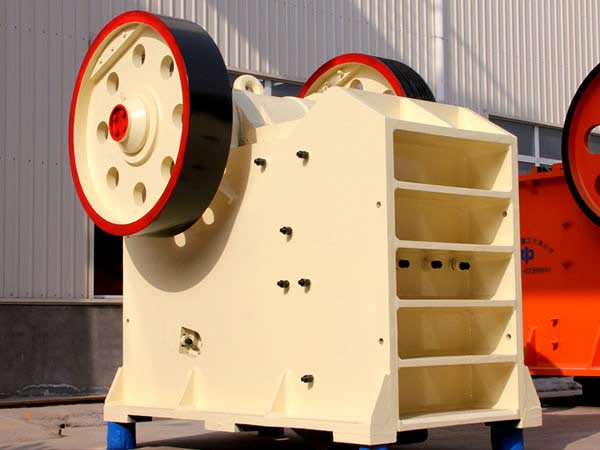

Jaw breaking machine is widely used in the world nowadays and has the features of high reduction ratio, uniform granularities, simple structure and easy maintenance. It has two types: primary and secondary crusher. The compressive strength of the final products is up to 320MPa.This series of breaker of large and medium-size are the key products of our company. And our company takes the leading place in designing and producing large jaw crushers in China.

This series of products have the advantages of big reduction ratio, even granularity, simple structure, liable operation, easy maintenance, economic operation cost, etc. It is widely used for materials with the max crushing compressive strength not more than 320Mpa in the field of mine, metallurgy, building materials, roads, railways, irrigation, chemical industry, etc.

Source of this article：HX China edit：HX China
