Product Introduction

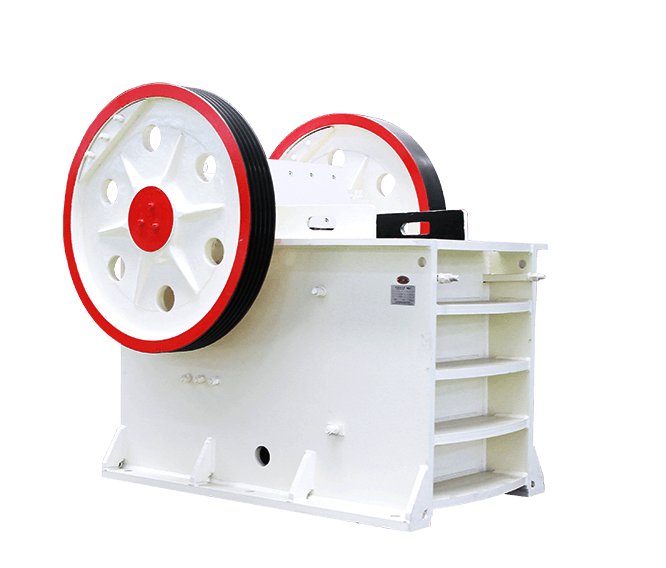

The stone crusher is a piece of indispensable equipment for the stone crushing line. Our crushers are available in a variety of models, including hot-selling models: PE-500*750, PE-600*900, PE-1000*1200 and more.

*PE-500750**
500*750mm inlet size	425mm max. feeding size
50-100mm outlet size range	40-110t/h processing capacity
*PE-600900**
600*900mm inlet size	500mm max. feeding size
65-160mm outlet size range	50-160t/h processing capacity
*PE-10001200**
1000*1200mm inlet size	850mm max. feeding size
195-265mm outlet size range	315-500t/h processing capacity

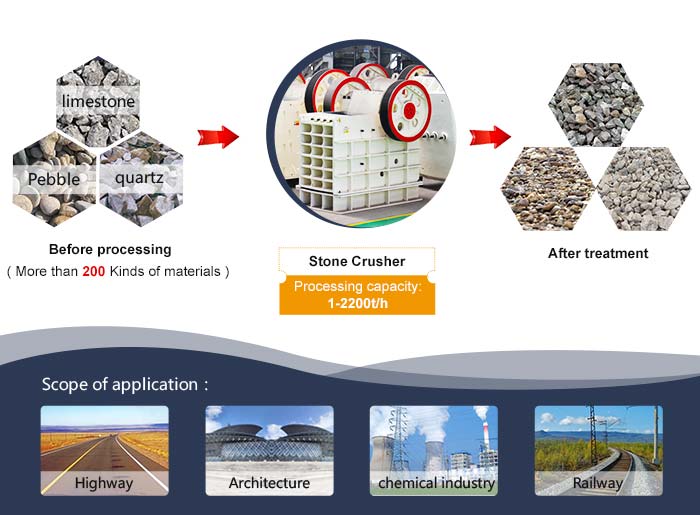

stone crusher applications and applicable materials

Stone Crusher Features:

Unique Flywheel Design : Reduce vibration effectively, Machine work is stable.
Large Crushing Ratio : low suspension motion mechanism leads to greater crushing ratio.
Easy To Maintain : Application of high wear-resisting toothed plate, long maintenance period, and cost-saving.
Low Failure Rate : Reliable performance, optimized design, the low failure rate.

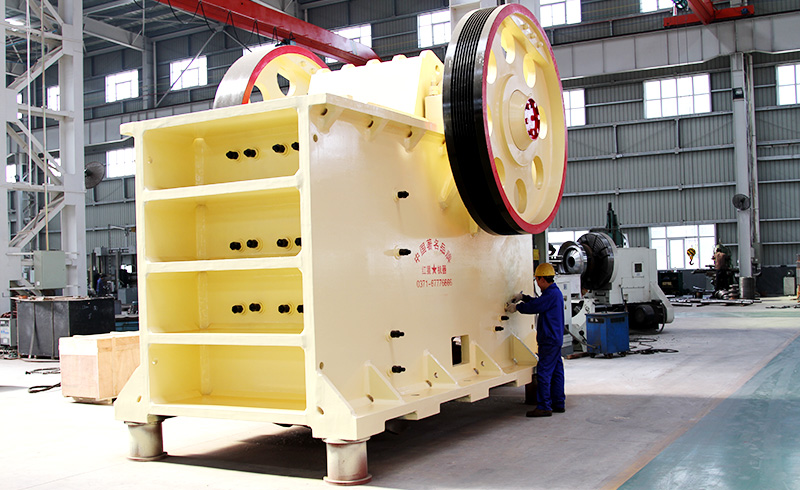

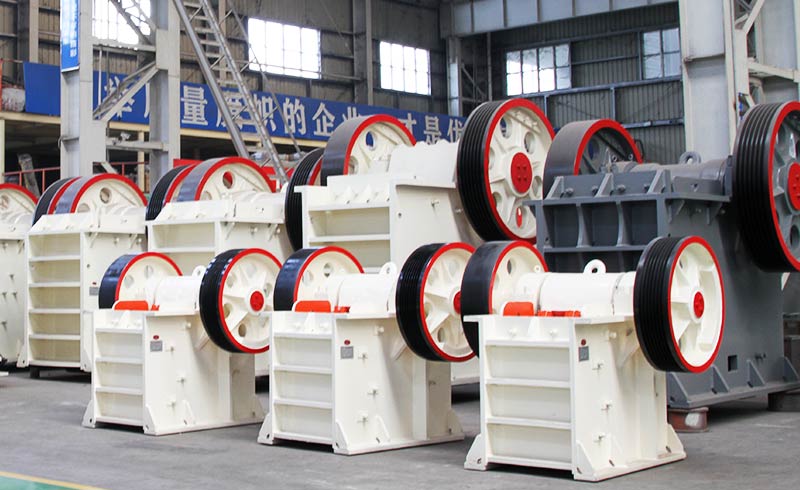

Product
presentation

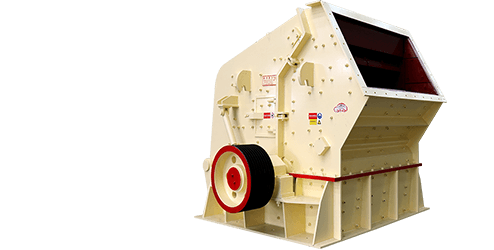

Different Types of Crushing Machines

Hongxing Mining Machinery Co., Ltd. Is a large joint-stock enterprise which mainly produces heavy mining machinery and integrates scientific research, production and sales. The crushing series of equipment manufactured by the company has been exported to more than 100 countries.

Hongxing provides workmanship and after-sales service for the following products of the best quality.

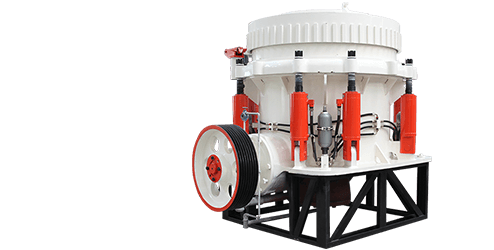

1, Jaw crusher 2, Mobile crusher 3, Cone crusher 4, Impact crusher 5, Hammer crusher 6, Sand making machine 7, Tertiary crusher 8, Roll crusher 9, Combination crusher 10, Single stage crusher, and so on.

Our company can provide project design, process design, standard and non-standard product design, and production.

Technical data

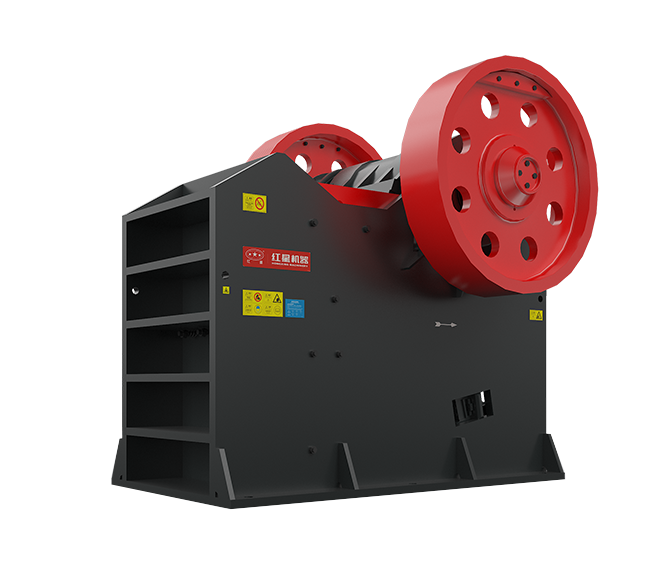

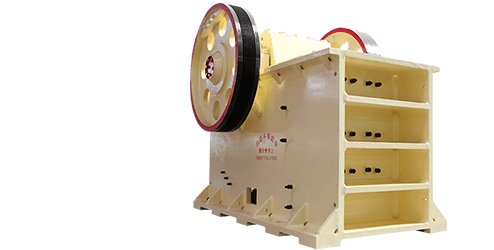

PE/PEX Jaw Crusher

Model	Feed opening size(mm）	Max.Feeding size (mm)	Adjustment range of discharge port (mm)	Capacity(t/h)	Rotation speed of eccentric shaft(r/min)	Power (kw)	Dimensions（L×W×H） (mm)
PE 150×250	150×250	125	10-40	1-3	268	4P 5.5	760×700×860
PE 200×300	200×300	180	15-50	2-6	260	4P 7.5	915×780×990
PE 200×350	200×350	180	18-60	3-10	276	4P 11	1000×914×1112
PE 250×400	250×400	210	20-70	5-21	300	6P 15	1100×1032×1285
PE 400×600	400×600	340	40-100	16-64	270	6P 30	1623×1736×1615
PE 500×750	500×750	425	50-100	40-110	268	6P 55	1920×1850×1920
PE 600×750	600×750	500	150-200	80-240	268	6P 55	2020×1850×1920
PE 600×900	600×900	500	65-160	50-160	254	6P 55	2530×1900×2340
PE 750×1060	750×1060	630	80-180	110-320	245	8P 110	2680×2380×2785
PE 900×1200	900×1200	750	100-200	220-380	208	8P 110	3470×2876×3330
PE1200×1500	1200×1500	1020	150-350	400-1000	180	8P 160-245	4850×3220×3680
PE1500×1800	1500×1800	1200	220-350	500-1200	180	8P 280-380	5160×3660×4248
PEX 150×750	150×750	120	18-48	8-25	320	4P 15	1170×1575×1030
PEX 250×750	250×750	210	25-60	13-35	320	6P 22	1550×1730×1470
PEX 250×1000	250×1000	210	25-60	16-52	330	6P 30	1580×2006×1390
PEX 250×1200	250×1200	210	25-60	20-61	330	6P 37	1780×2214×1430
PEX 300×1300	300×1300	250	20-90	16-105	300	6P 55	2210×2320×1723

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

PE/PEX Jaw Crusher

Model	Max.Feeding size (mm)	Capacity (t/h)
PE 150×250	125	1-3
PE 200×300	180	2-6
PE 200×350	180	3-10
PE 250×400	210	5-21
PE 400×600	340	16-64
PE 500×750	425	40-110
PE 600×750	500	80-240
PE 600×900	500	50-160
PE 750×1060	630	110-320
PE 900×1200	750	220-380
PE 1200×1500	1020	400-1000
PE 1500×1800	1200	500-1200
PEX 150×750	120	8-25
PEX 250×750	210	13-35
PEX 250×1000	210	16-52
PEX 250×1200	210	20-61
PEX 300×1300	250	16-105

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

For customization, please contact us.
