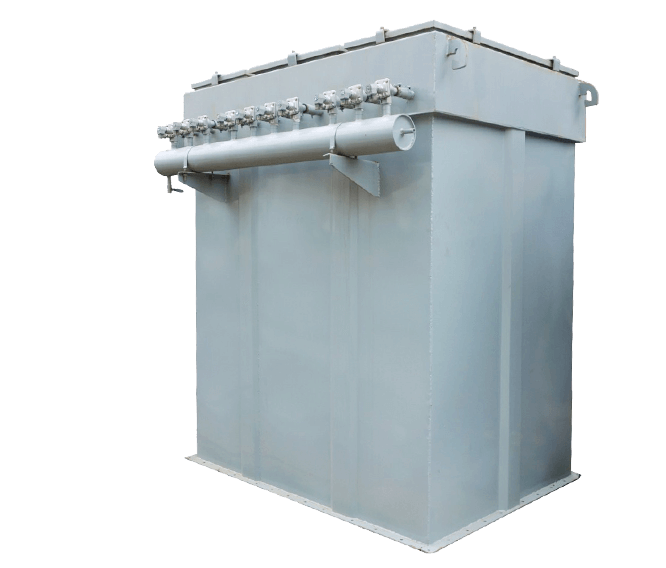

DMC Dust Collector

DMC Dust Collector

The DMC pulse single dust collector adopts the pulse blast cleaning technology, which overcomes the shortcomings of the conventional pulse dust collector and the compartment back-blowing dust collector.

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The DMC pulse single-stage dust collector is composed of a ash bucket, an upper box body, a middle box body, a lower box body and the like, and the upper, middle and lower tanks are compartment structures. This series of equipment has two types: one with an ash bucket and the other with no ash bucket.

DMC Dust Collector Features:

  1. Long cleaning cycle, low energy consumption : The use of the pulse blast cleaning method can achieve the purpose of thorough cleaning once.

  2. Firm and reliable, long service life : DMC dust collector filter bag mouth sealing performance is good, firm and reliable. The filter bag keel is polygonal, which reduces friction and prolongs the life of the bag.

  3. Good sealing performance and low air leakage rate : The DMC dust collector box adopts the airtight design, good sealing performance, excellent sealing material for inspection door, the air leakage rate is very low by leak detection with kerosene.

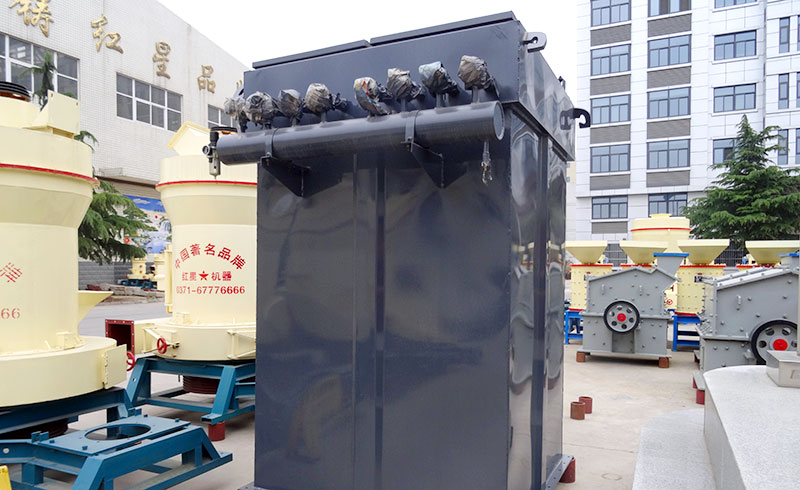

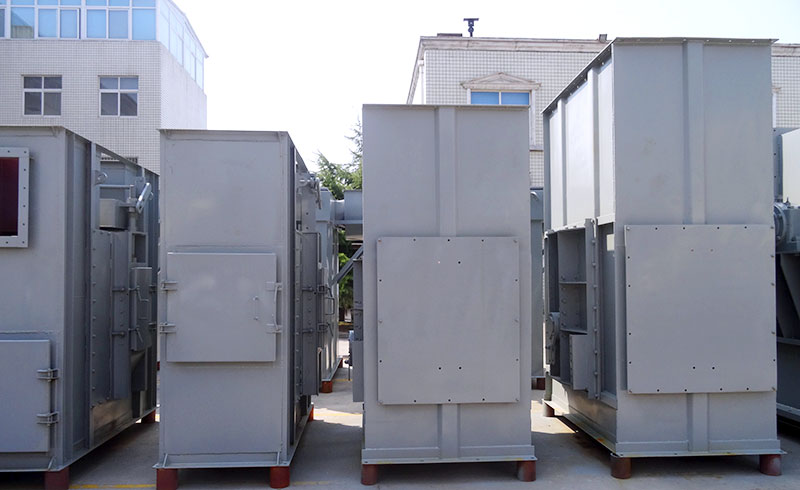

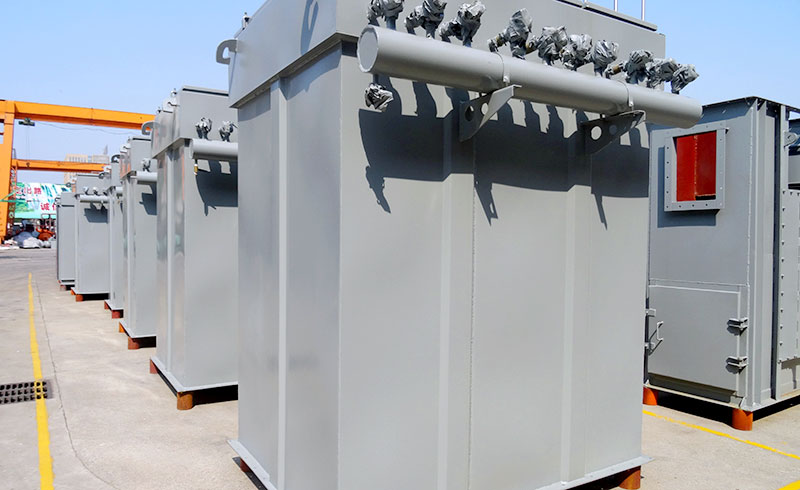

Product
presentation

Learn More About Us

The DMC pulse single dust collector adopts the pulse blast cleaning technology, which overcomes the shortcomings of the conventional pulse dust collector and the compartment back-blowing dust collector.It has a wide range of applications, and its final product quality is high and its grade is high.Customers from different countries and regions will also choose to come to our company for field visits. We also warmly welcome you to visit our company.

Technical data

  • DMC Dust Collector
Model filtering area
(m²)
Capcity
(m³/h)
fan model The fan motor Number of filter bag model of matched
german raymond
note
DMC24 18 1080~2160 4-72-3.2A Y90L-2-1.5kw 24
DMC36 27 1620~3240 4-72-3.6A Y100L-2-3kw 36  HGM88 HGM95
DMC48 36 2160~4320 4-68-4A Y112M-2-4kw 48  HGM100
DMC64 48 2880~5760 4-68-4A Y112M-2-4kw 64  HGM130 HGM120
DMC80 60 3600~7200 4-72-4A Y132S1-2-5.5kw  80
DMC96 72 4320~8640 4-72-4.5A Y132S2-2-7.5kw  96 HGM60 HGM175
DMC112 84 5040~10800 4-72-4.5A Y132S2-2-7.5kw  112  HGM190
DMC128 96 5760~11520 4-72-4.5A Y132S2-2-7.5kw  128   Selecting Based on Air Volume.
More Dust, Lower Filter Wind Speed.
8640~14400 4-72-5A Y160M2-2-15kw  128
DMC150 112.5 6750~13500 4-72-5A Y160M2-2-15kw  150
10000~20000 4-68-6.3C Y180M-2-22kw  150
DMC180 135 12000~24000 4-72-8C Y200L-2-30kw  180   Multipe Dust Collection & Location Timing.
A Settling Room is a Must.
DMC220 165 15000~34000 7-72-8C Y200L-2-37kw  220
  • DMC Dust Collector
Model filtering area
(m²)
Capcity
(m³/h)
DMC24 18 1080~2160
DMC36 27 1620~3240
DMC48 36 2160~4320
DMC64 48 2880~5760
DMC80 60 3600~7200
DMC96 72 4320~8640
DMC112 84 5040~10800
DMC128 96 5760~11520
8640~14400
DMC150 112.5 6750~13500
10000~20000
DMC180 135 12000~24000
DMC220 165 15000~34000

For customization, please contact us.
