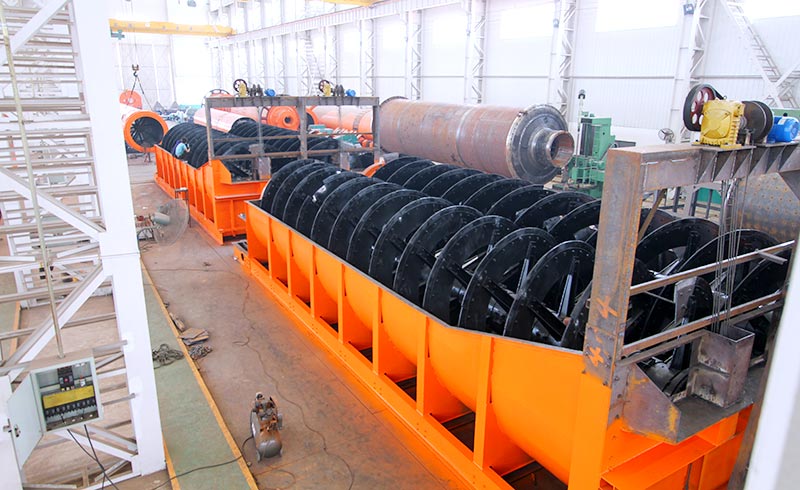

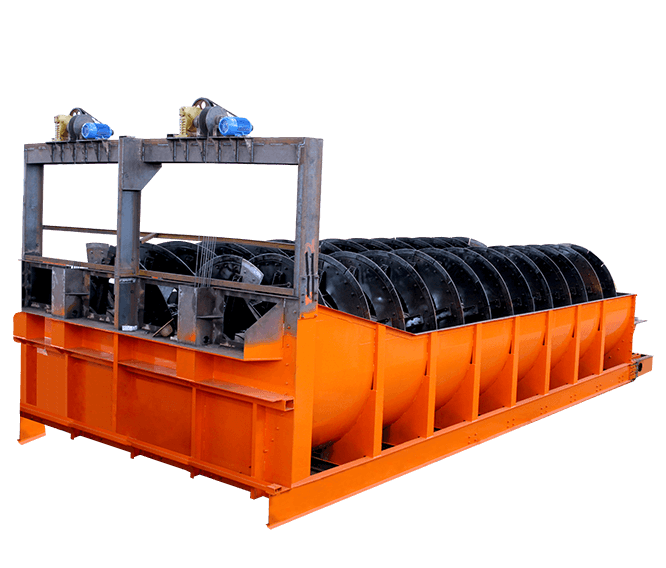

Double Spiral Sand Washer

Double Spiral Sand Washer

It has good sealing performance and relies on the transmission to ensure the cleaning and dewatering effect.

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The double-spiral Sand Washer is a kind of spiral sand washing equipment. Because the internal structure contains two spirals, it is called double-spiral. The double-spiral Sand Washer is widely used in construction sites, sand and gravel plants, hydropower stations and other industries.The double spiral Sand Washer is a new product developed by Hongxing Machine for market demand. It is a new type of high-efficiency ore washing equipment used in combination with sand making machine. With high cleanliness, reasonable structure, large processing capacity, and low power consumption, it is a new choice for the upgrading of the ore washing industry.

Double Spiral Sand Washer Features:

  1. Outstanding Advantages

  2. High cleanliness and high precision

  3. Low energy consumption and long-term stable operation

  4. Simple and modular structure and easy maintenance

Product
presentation

Working Principle

When the double-spiral Sand Washer is working, the impeller rotates by the motor, and at the same time, water is added to form a strong water flow, and the foreign matter with a small specific gravity is taken away in time and is discharged from the overflow port. The clean sand is taken away by the blade, and finally, the sand is poured from the spiral impeller into the discharge chute, which completes the cleaning operation of the gravel.

Technical data

  • Double Spiral Sand Washer
Model XK-1933 XK-1600
Chute Lenth(mm) 9200 7630
Chute Width(mm) 1933 1600
Feeding Size(mm) <100 <75
Procession Capacity(t/h) 50-150 40-120
Motor Y250M-6/37 Y250M-6/37
Reducer HH2SH8 i=25 JZQ850 i=23.34
Sprial Shaft Rotation Speed
(r/min)
39 22.7
Sprial Diameter 860mm Double Sprial 750mm Double Sprial
Install Inclination(º) 10 10
Chute Size(mm×mm) 9200×1933 7630×1600
Dimensions
(L×W×H)(mm)
11983×2750×2485 9771×2547×2010
  • Double Spiral Sand Washer
Model XK-1933 XK-1600
Chute Lenth(mm) 9200 7630
Chute Width(mm) 1933 1600
Feeding Size(mm) <100 <75
Procession Capacity(t/h) 50-150 40-120
Motor Y250M-6/37 Y250M-6/37
Reducer HH2SH8 i=25 JZQ850 i=23.34
Sprial Shaft Rotation Speed
(r/min)
39 22.7
Sprial Diameter 860mm Double Sprial 750mm Double Sprial
Install Inclination(º) 10 10
Chute Size(mm×mm) 9200×1933 7630×1600
Dimensions
(L×W×H)(mm)
11983×2750×2485 9771×2547×2010

For customization, please contact us.

About Us

Henan Hongxing Mining Machinery Co.,Ltd.(HXJQ) covers an area of 350,000 square menters which includes 260,000 square menters of heavey duty industrial workshops.

covers an area of 350,000 square menters .

heavy duty industrial workshops.

which includes 260,000 square menters.

MORE +

HongxingMachinery

Is a manufacturer of high-end mining machinery in Asia.

350000 + workshop 600 + R&D team 40 + R&D experience
Hongxing Machinery
china

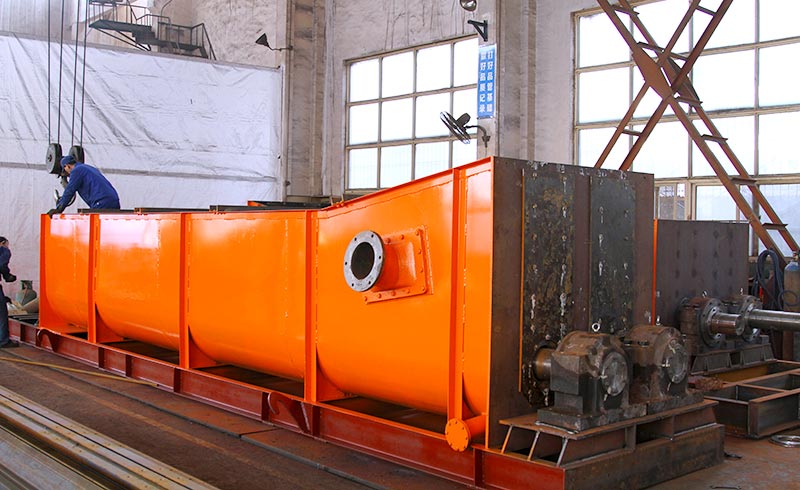

48-hour idling test machine before leaving the factory. You can take the materials to the factory test machine. We will customize the solution according to your needs.

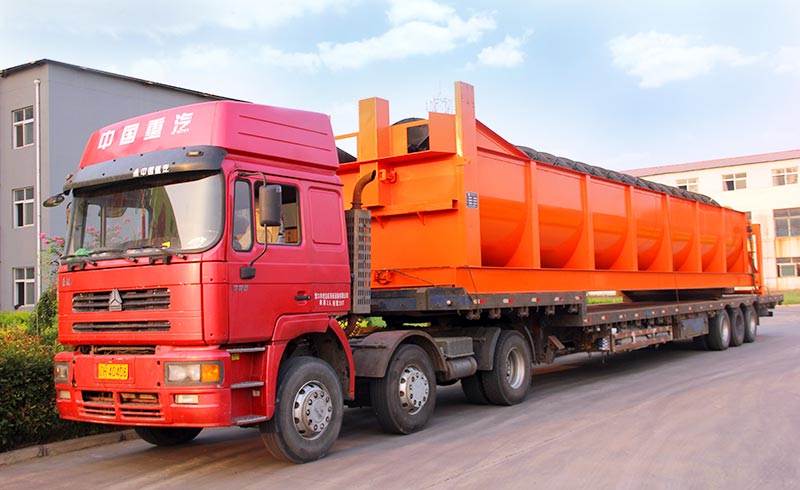

deliver goods All major ports can deliver goods
