Cylinder Washing Machine

Cylinder Washing Machine

The Cylinder Washing Machine can effectively improve the quality of mines, it has prominent economic benefits to the reality of many lean mines in China.

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Introduction

The Cylinder Washing Machine is generally used for large ore, which is difficult to wash. In the mining process of non-ferrous metal, the raw materials need to be cleaned to avoid clogging the crushing and screening equipment in the raw materials of slime mineral.

Cylinder Washing Machine Features:

  1. It is widely used to clean ore with high mud content, and all kinds of large ores, which is hard to wash. The washing efficiency is up to 99%.

  2. Low rotation power consumption and cost-saving.

  3. Simple structure, stable performance, and high yield.

  4. Low malfunction rate, the long service life of wearing parts.

Product
presentation

Working process

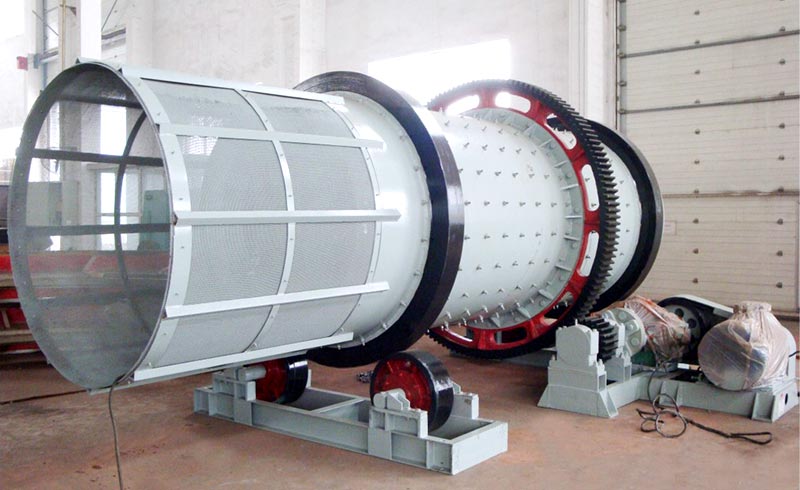

The Cylinder Washing Machine is supported by four tugs, the cylinder rotates at a low speed with the motor driving the gears. The mud containing ore enters the rotating drum and is continuously lifted and stirred by a stirring device installed inside the cylinder. The mud containing ore is continuously washed by the high-pressure water column during multiple cycles. The clean ore will be discharged after dehydration by decontamination device.

Technical data

  • Cylinder Washing Machine
Model Capacity
(t/h)
Motor Power
(kw)
Φ1.2×4.5 10-30 22
Φ1.5×5 15-45 30
Φ1.8×5.5 25-75 45
Φ2×6 30-100 75
Φ2.4×6.5 50-160 110
Φ2.6×7 45-210 132
Φ3×7.5 90-300 185
  • Cylinder Washing Machine
Model Capacity
(t/h)
Motor Power
(kw)
Φ1.2×4.5 10-30 22
Φ1.5×5 15-45 30
Φ1.8×5.5 25-75 45
Φ2×6 30-100 75
Φ2.4×6.5 50-160 110
Φ2.6×7 45-210 132
Φ3×7.5 90-300 185

For customization, please contact us.
