Application fields: Cement, silicate products, new building materials, refractory materials, glass ceramics and other production industries.
“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

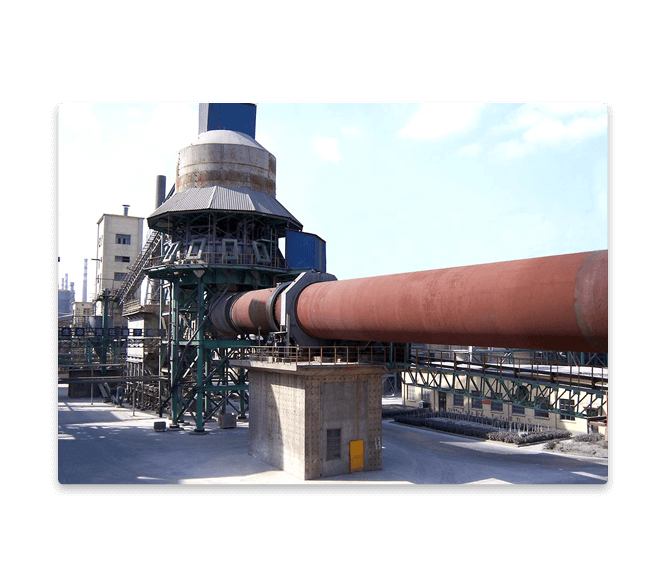

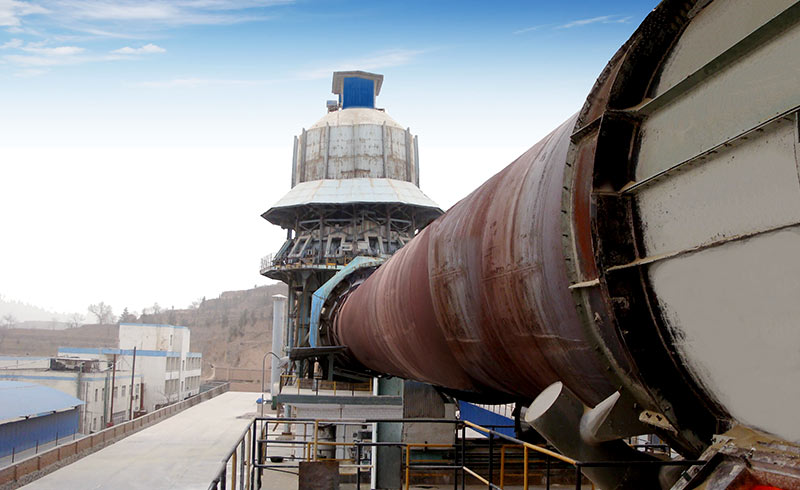

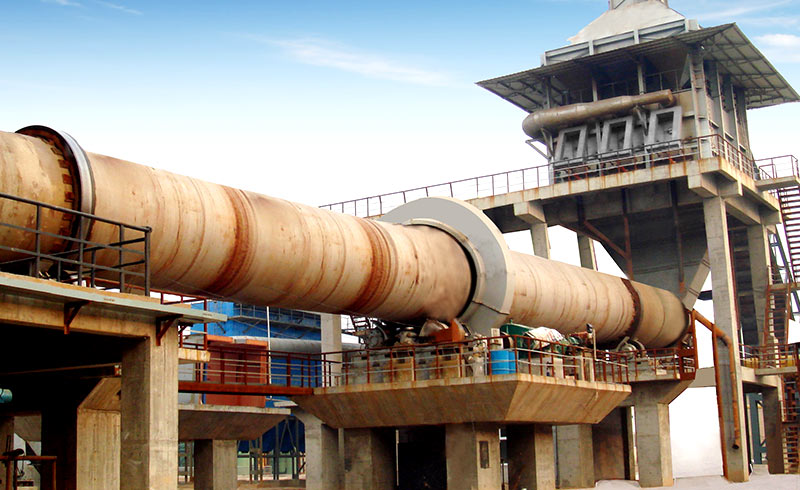

The dry-type rotary kiln is a kind of rotary kiln, which is mainly used for calcining cement clinker. It is widely used in cement, silicate products, new building materials, refractory materials, glass ceramics, and other production industries.
1. The dry-type rotary kiln has a solid structure and stable operation and can provide users with advanced high-efficiency vertical cylinder preheater and five-stage cyclone preheater.
2. The dry-type rotary kiln is a combustion device, in which pulverized coal is burned to generate heat; at the same time, it is also a heat transfer device, and the raw material absorbs the heat of the gas for calcination.
3. The dry-type rotary kiln has stable performance, low energy consumption, high output, and easy operation. It also features structure, convenient and reliable production process control, wear-resistant parts
and high operation rate
4. The dry-type rotary kiln is a kind of rotary kiln, mainly used for calcining cement clinker. It is the main equipment of the new dry process cement production line.
1. High production capacity, up to 10,000 tons per day.
2. The sealing effect is good, the waste heat is fully utilized, and the cost is saved.
3. Clinker quality is high
4. Environmental dust removal

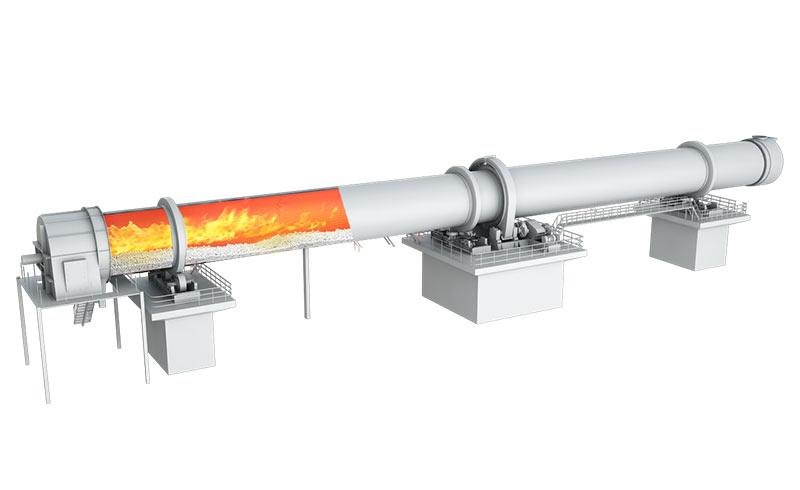

Pulverized coal (natural gas) is burned in a rotary kiln to generate heat. The heat is heated by gas conduction or radiation. At the same time, as the kiln body rotates according to the design inclination and rotation speed, the raw materials are also periodically rolled in the kiln. Therefore, the raw material is transported from the feeding end to the discharging end, and at the same time, it is ensured that the raw material is calcined into qualified clinker in the time when the raw material passes through the rotary kiln, thereby achieving the purpose of high yield, high quality and low consumption.
| Product Specification （m） |
Kiln dimensions | Motor power （kw） |
Total weight （t） |
note | ||||
| Diameter （m） |
Length （m） |
Obliquity （%） |
Capacity （t/d） |
Rotation speed （r/min） |
||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | ----- |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ----- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 280 | 0.48-1.45 | 55 | 196.29 | outside disassemble kiln |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ------ |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 450 | 0.437-2.18 | 55 | 201.58 | outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ------ |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | outside disassemble klin |
| Φ3.0×60 | 3 | 60 | 3.5 | 800 | 0.3-2 | 100 | 310 | ------ |
| Φ3.2×50 | 3.5 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | disassemble klin |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | kiln with prehrater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating klin for usimg ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | klin with prehrater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | klin with prehrater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.41-4.07 | 375 | 633 | klin with prehrater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | klin with prehrater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | klin with prehrater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | klin with prehrater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | klin with prehrater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | klin with prehrater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | klin with prehrater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | klin with prehrater precalcine |
| Product Specification （m） |
Capacity （t/d） |
Rotation speed （r/min） |
| Φ2.5×40 | 180 | 0.44-2.44 |
| Φ2.5×50 | 200 | 0.62-1.86 |
| Φ2.5×54 | 280 | 0.48-1.45 |
| Φ2.7×42 | 320 | 0.10-1.52 |
| Φ2.8×44 | 450 | 0.437-2.18 |
| Φ3.0×45 | 500 | 0.5-2.47 |
| Φ3.0×48 | 700 | 0.6-3.48 |
| Φ3.0×60 | 800 | 0.3-2 |
| Φ3.2×50 | 1000 | 0.6-3 |
| Φ3.3×52 | 1300 | 0.266-2.66 |
| Φ3.5×54 | 1500 | 0.55-3.4 |
| Φ3.6×70 | 1800 | 0.25-1.25 |
| Φ4.0×56 | 2300 | 0.41-4.07 |
| Φ4.0×60 | 2500 | 0.396-3.96 |
| Φ4.2×60 | 2750 | 0.41-4.07 |
| Φ4.3×60 | 3200 | 0.396-3.96 |
| Φ4.5×66 | 4000 | 0.41-4.1 |
| Φ4.7×74 | 4500 | 0.35-4 |
| Φ4.8×74 | 5000 | 0.396-3.96 |
| Φ5.0×74 | 6000 | 0.35-4 |
| Φ5.6×87 | 8000 | Max4.23 |
| Φ6.0×95 | 10000 | Max5 |
For customization, please contact us.
limestone, cement clinker, bauxite, activated lime, aluminum hydroxide, etc.
