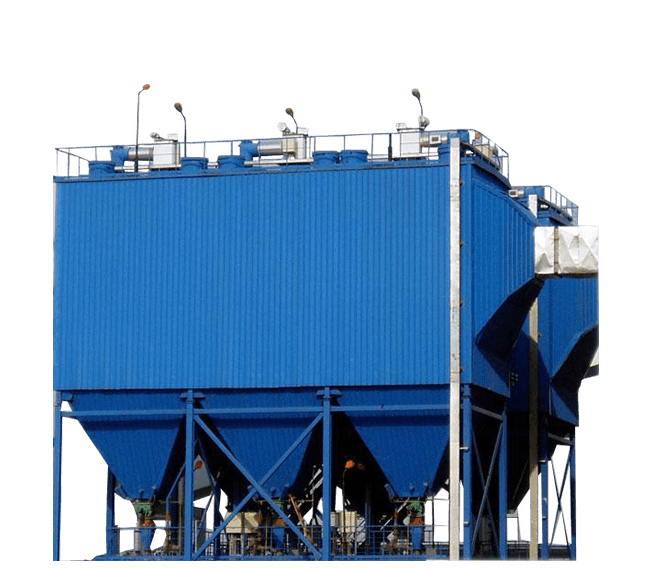

Electrostatic Precipitator

Electrostatic Precipitator

Numbers of Filtration Bags:96-3584

  • Capacity: 1080-34000㎡/h
  • Filtering area:18-165㎡

Application Range:building materials, cement, metallurgy, machinery, chemical and refractory.

The Inner Structure and Function of Electrostatic Precipitator:

Electrostatic precipitator is composed of control box, boosting transformer and rectifier. The voltage outputted by the power supply also has great influence on the efficiency of the dust efficiency, for this reason, the running voltage of the electrostatic precipitator should be maintained in the range of 40-75KV and even over 100KV.

The Advantages and Benefits of Electrostatic Precipitator:

Compared with other dust collecting equipment, electrostatic precipitator has low energy consumption and high efficiency and it can be used in the sites with high temperature and pressure of smoke. Practice shows that the higher the amount of the smoke to be processed is, the lower the investment and operational cost of the electrostatic precipitator will be.

Working Principle

Its purification work is mainly completed through two systems: discharge electrode and receiving electrode. When high pressure direct current is inputted between the two electrodes, anion and cation will be produced in the space of the electrodes and will function on the surface of the waste particles that go through the static electric field. The waste particles will move to the opposite electrode under the field stress and deposit on the electrode, thus achieving the aim of dust collection. There is rapping apparatus on both sides of the system, and when the rapping hammer periodically hits the two sides, the powder dust that stick onto it will be shaken off and fall to the ash bucket and will be discharged from the machine.

Electrostatic Precipitator Manufacturer

Hongxing Mining Machinery has specialized in the production of mining equipment for more than 30 years. With more than 120 people, the R&D team has been at the forefront of the industry for many years with its excellent technology and excellent service.

If you are interested in our products, please leave your request or send an email to info@hxjq.com and we will respond to you in time!

Technical data

icon
Model filtering area
(m²)
Capcity
(m²/h)
fan model The fan motor Number of filter bag note
DMC24 18 1080~2160 4-72-3.2A Y90L-2-1.5kw 24
DMC36 27 1620~3240 4-72-3.6A Y100L-2-3kw 36
DMC48 36 2160~4320 4-68-4A Y112M-2-4kw 48
DMC64 48 2880~5760 4-68-4A Y112M-2-4kw 64
DMC80 60 3600~7200 4-72-4A Y132S1-2-5.5kw  80
DMC96 72 4320~8640 4-72-4.5A Y132S2-2-7.5kw  96
DMC112 84 5040~10800 4-72-4.5A Y132S2-2-7.5kw  112
DMC128 96 5760~11520 4-72-4.5A Y132S2-2-7.5kw  128 Selecting Based on Air Volume.
More Dust, Lower Filter Wind Speed.
8640~14400 4-72-5A Y160M2-2-15kw  128
DMC150 112.5 6750~13500 4-72-5A Y160M2-2-15kw  150
10000~20000 4-68-6.3C Y180M-2-22kw  150
DMC180 135 12000~24000 4-72-8C Y200L-2-30kw  180 Multipe Dust Collection & Location Timing.
A Settling Room is a Must.
DMC220 165 15000~34000 4-72-8C Y200L-2-37kw  220
