Processing Water Volume: 30-650m³/h
“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

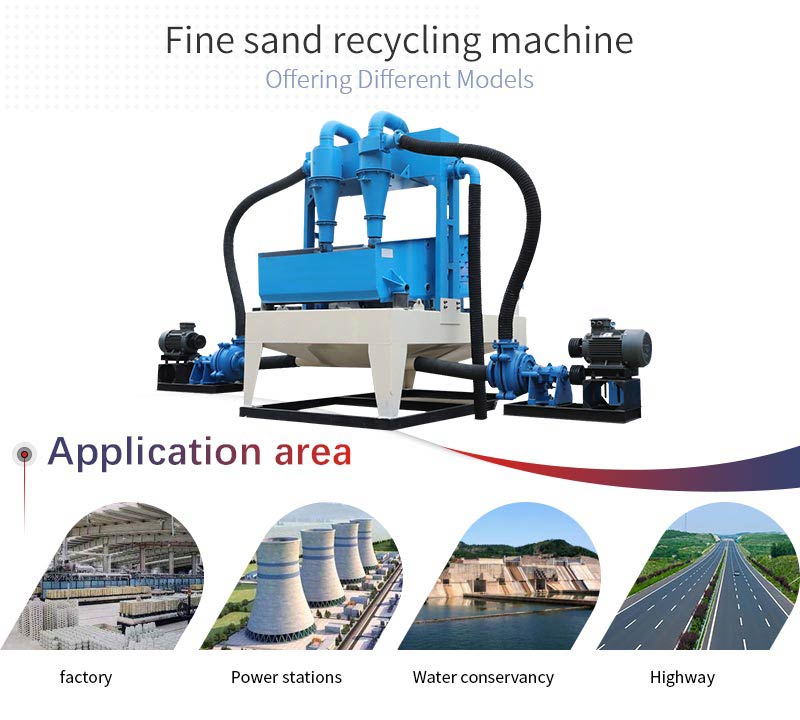

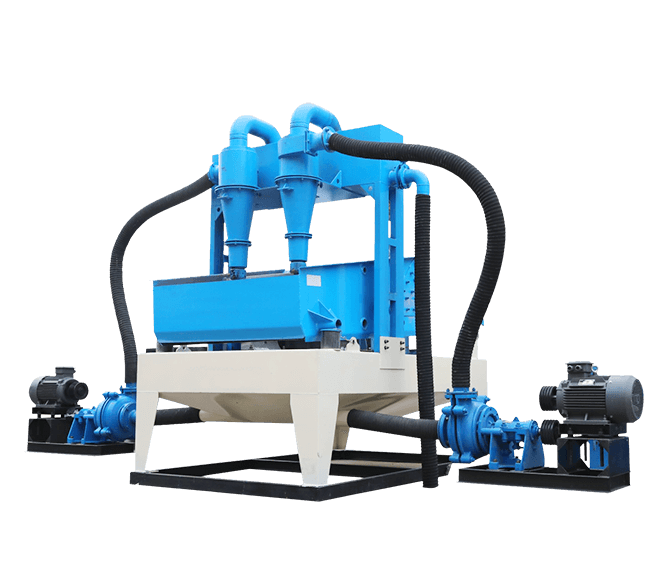

The fine sand recovery machine separates the slurry with the concentration≤40% into the hydrocyclone separator through the slurry pump, and the separated coarse fraction enters the dehydration flash sieve for dehydration recovery. Maximize the recovery of materials above 75cm, remove sludge and clay below 75cm, can be used with the sand washing machine on the existing production line, or can be used alone to improve resource utilization and maximize revenue.
| Model | Sand Pump Power (kw) |
Sepatator Spec (mm) |
Dewatering Screen | Processing Water Volume (mm) |
|
| Specifications (mm) |
Power (kw) |
||||
| HX-250 | 11 | 250 | 800×2000 | 2×0.75 | 30-60 |
| HX-300 | 15 | 300 | 800×2000 | 2×0.75 | 60-100 |
| HX-350 | 18.5 | 350 | 1000×2000 | 2×1.5 | 70-130 |
| HX-550 | 22 | 550 | 1200×3000 | 2×2.2 | 100-220 |
| HX-650 | 30 | 650 | 1500×3000 | 2×3 | 120-272 |
| HX-750 | 37 | 750 | 1500×3000 | 2×3 | 180-350 |
| HX-750(Ⅱ) | 45 | 750 | 1800×3600 | 2×4 | 230-430 |
| HX-900 | 55 | 900 | 1800×3600 | 2×4 | 450-650 |
| Model | Sand Pump Power (kw) |
Processing Water Volume (mm) |
| HX-250 | 11 | 30-60 |
| HX-300 | 15 | 60-100 |
| HX-350 | 18.5 | 70-130 |
| HX-550 | 22 | 100-220 |
| HX-650 | 30 | 120-272 |
| HX-750 | 37 | 180-350 |
| HX-750(Ⅱ) | 45 | 230-430 |
| HX-900 | 55 | 450-650 |
For customization, please contact us.
