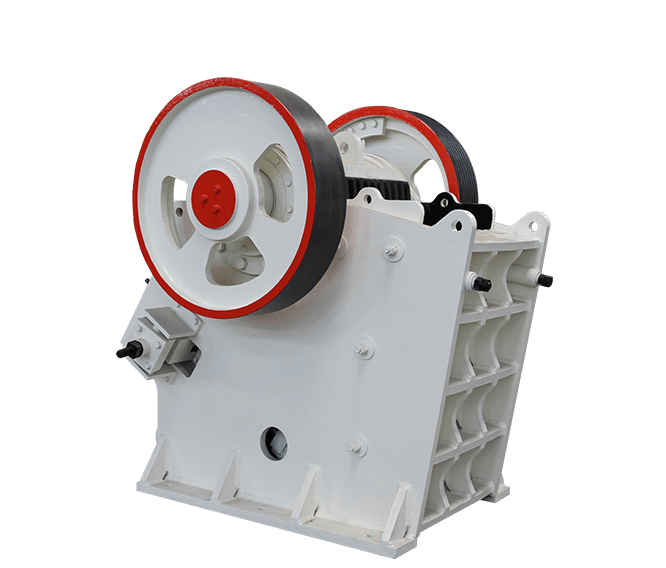

Gravel Crusher

Product Introduction

Gravel crusher is mainly applied to crush stone into construction materials for road construction, railway, and house building and other industries with the need of the small stone materials. It is especially suitable for limestone, the stone whose hardness is less than 200Mpa and the stone containing more calcium.

Gravel Crusher Features:

The working hammer adopts new technology for casting so that it is resistant to wear and impact.
The final granularity can be adjusted according to the requirements of the customers.
The hammer crusher has a sealed structure which solves the problems of powder dust pollution in the crushing workshop and ash leakage of the machine.
This crusher has the advantages of attractive appearance, compact structure, and few wear-resistant parts and convenient maintenance.

Product
presentation

Quality Guarantee

the company pursues high standards of manufacturing and qualified products. The company's products have passed ISO9001, CE and GOST international quality system certification. In 2007, the "Red Star" brand mining equipment produced by the company was tested by the national authority and was rated as the quality standard and assured brand. With stable and long-lasting capabilities, our products are well known in the international market, such as Russia, Kazakhstan, Uzbekistan, Azerbaijan, Turkey, Kuwait, South Africa, Zimbabwe, Nigeria, Egypt, Vietnam, Malaysia, India, Australia, South Korea, Canada, and EU, etc.

Technical data

PE/PEX Jaw Crusher

Model	Feed opening (mm）	Max.feeding size (mm)	Adjusting range of discharge opening (mm)	Processing capacity (t/h)	Rotation speed of eccentric shaft (r/min)	Motor power (kw)	Total weight (t)	Dimensions （L×W×H） (mm)
PE-150×250	150×250	125	10-40	1-3	250	4P 5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	4P 7.5	1.2	910×750×990
PE-200×350	200×350	180	18-70	3-10	260	4P 11	1.5	1000×870×990
PE-250×400	250×400	210	20-60	5-21	300	6P 15	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-64	275	6P 30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	6P 55	12	1980×2080×1870
PE-600×750	600×750	500	150-200	80-240	275	6P 55	15.8	2070×2000×1920
PE-600×900	600×900	500	65-160	50-160	250	6P 55	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	8P 110	29	2660×2430×2800
PE-800×1060	800×1060	640	130-190	130-330	250	8P 110	29.8	2710×2430×2800
PE-830×1060	830×1060	650	160-220	150-336	250	8P 110	30.7	2740×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	8P 110	31.5	2810×2430×2800
PE-900×1060	900×1060	685	230-290	230-390	250	8P 110	33	2870×2420×2940
PE-900×1200	900×1200	750	95-165	220-380	200	8P 110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	8P 110	55	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-350	400-800	180	6P 160-220	100.9	4200×3300×3500
PE-1500×1800	1500×1800	1200	220-350	500-1000	180	8P 280-355	139	5160×3660×4248
PEX-150×750	150×750	120	18-48	8-25	320	4P 15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	6P 22	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	6P 30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	6P 37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	6P 55	15.6	2720×1950×1600

PE/PEX Jaw Crusher

Model	Max.feeding size (mm)	Processing capacity (t/h)
PE-150×250	125	1-3
PE-200×300	180	2-6
PE-200×350	180	3-10
PE-250×400	210	5-21
PE-400×600	340	16-64
PE-500×750	425	40-110
PE-600×750	500	80-240
PE-600×900	500	50-160
PE-750×1060	630	110-320
PE-800×1060	640	130-330
PE-830×1060	650	150-336
PE-870×1060	660	190-336
PE-900×1060	685	230-390
PE-900×1200	750	220-380
PE-1000×1200	850	315-500
PE-1200×1500	1020	400-800
PE-1500×1800	1200	500-1000
PEX-150×750	120	8-25
PEX-250×750	210	13-35
PEX-250×1000	210	16-52
PEX-250×1200	210	20-61
PEX-300×1300	250	16-105

For customization, please contact us.
