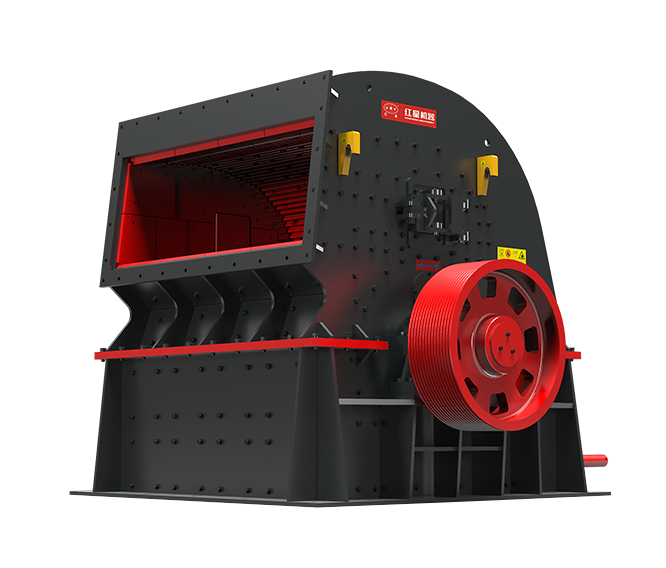

HD German Impact Crusher

HD German Impact Crusher

Applications: Widely used in building materials, ore crushing, railways, highways, energy, transportation, cement, mining, chemical and other industries

  • Processing capacity: 90-670t/h
  • Feeding size: ≤1300mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

HD German impact crusher is a new type of impact crusher developed by our company based on more than 20 years of experience in research, design, and manufacture of PF series impact crusher.

It can crush more than 200 kinds of materials such as limestone, granite, river pebbles, calcium carbide, quartz stone, dolomite, iron ore, concrete, coal, and gypsum.

HD German impact crusher applications and applicable materials

HD German Impact Crusher Features:

  1. 1. Optimized crusher chamber, higher throughput.

  2. 2. Big feeding port design, can crush bigger material.

  3. 3. Add grinding chamber design(alternative), wider application range.

  4. 4. Reliable overload and iron pass protection device.

  5. 5. Convenient maintenance, safe and reliable.

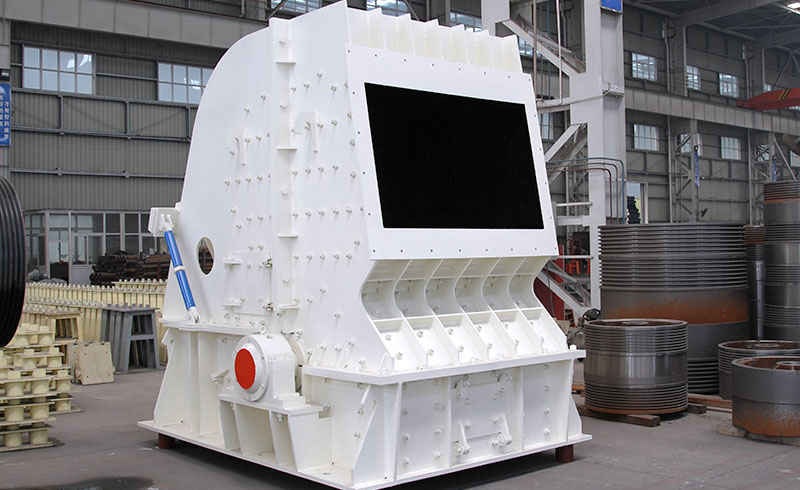

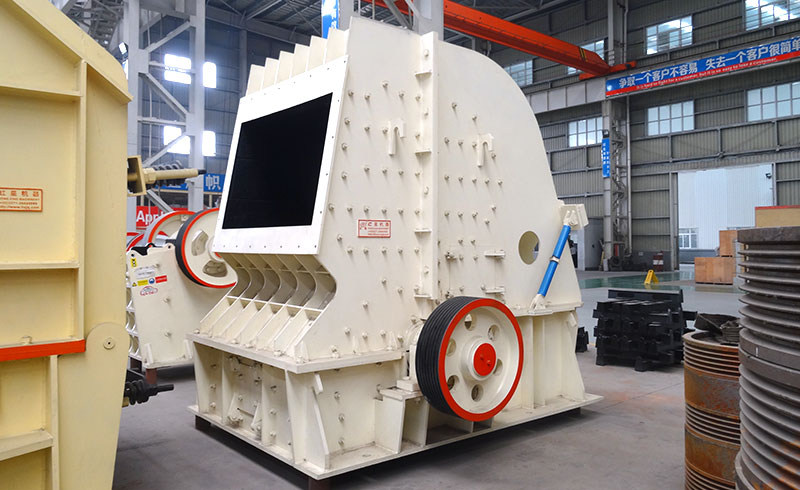

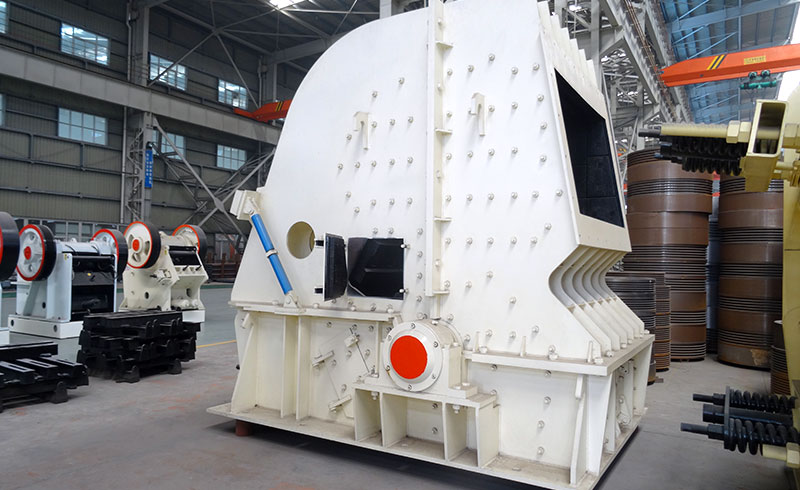

HD german impact crusher
impacr crusher
impact crusher
Product
presentation

Products Features

This series impact crusher has the features of heavy-duty rotor design, unique hammer locking system, internal lining replacement, easy maintenance. Therefore, the equipment provides a kind of solution of low cost. The performance is outstanding, and the shape of the product is good. Also, the unit operation cost is low and it has a wide range of applicable materials.

Technical data

  • HD German Impact Crusher
Model Rotor(mm) The Maximum Feeding Size(mm) Capacity(t/h) Motor power(kw) Overall dimension(L×W×H)(mm) Weight(kg)
-150MPa -350MPa
HD1110 Φ1040×1000 400 200 90~190 4P   90-132 3000×2360×2385 15875
HD1315 Φ1300×1500 700 300 180~280 4P   200-270 3735×3156×3055 29600
HD1520 Φ1500×2000 1000 400 350~500 4P   400-500 4310×3330×3660 42000
HD1625 Φ1650×2500 1300 500 500~670 4P   500-670 5540×4330×4600 66000
  • HD German Impact Crusher
Rotor
(mm)
Discharging
(mm)
Capacity
(t/h)
-150MPa -350MPa
Φ1040×1000 400 200 90-190
Φ1300×1500 700 300 180~280
Φ1500×2000 1000 400 350~500
Φ1650×2500 1300 500 500~670

For customization, please contact us.

SOLUTION

Stone Crusher In Mexico

Stone Crusher In Mexico

China Henan Hongxing Machinery Mining Machinery Co., Ltd. is a large-scale joint-stock enterprise mainly engaged in the production of heavy mining machines, as well as scientific research, production and sales. The crushing series machines produced by the company are widely used in metallurgical, ch

MORE +
Stone Production Line

Stone Production Line

The stone production line produced by Hongxing Mining Machinery has many varieties, models, fast delivery, guaranteed quality. To provide you with one-on-one after-sales service, welcome online consultation.

MORE +
Materials:

limestone, granite, river pebble, calcium carbide, quartz stone, dolomite, iron ore, concrete, coal, gypsum, etc.
