Capacity of Separator: 21-250 t/h
“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

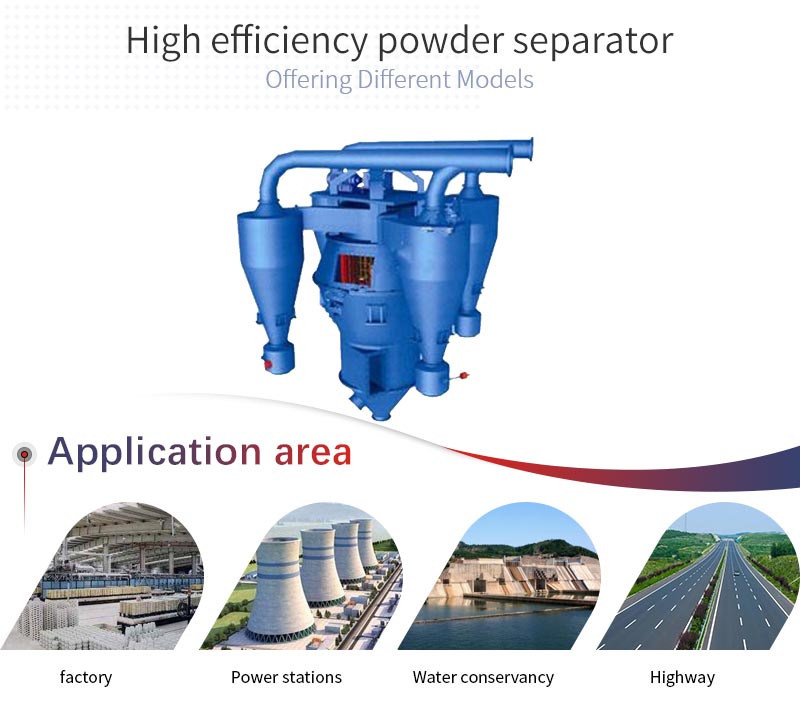

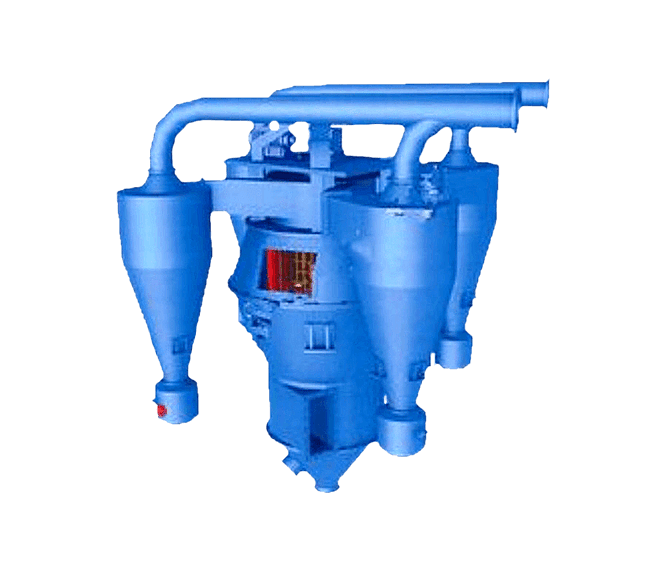

High Efficiency Classifier is a powder separator developed on the basis of traditional High Efficiency Classifier by using the most advanced technology in the international market. Compared with common, the improved O-SEPA separator increases the separation areas of the powder separator, so that the separation ratio of the materials in the actual condition is higher and the powder separation effect is better.
This type of powder separator increase the air amount for three times, thus improving the separation efficiency to over 80%, and the separated products are more even and more reasonable in particle distribution, and at the same time, the energy produced by the rotation of the air flow is transmitted to the rotor, thus reducing the electricity consumption of the drive device and avoid the energy consumption of slipstream.
The ground materials are fed in from the upper part of the separator, and after fully scattering by the scattering plate and the dash plate, the materials will go i
| Type | HGM100 | HGM120 | HGM130 | HGM160 | HGM175 |
| Feeding size (mm) |
＜20 | ＜20 | ＜25 | ＜30 | ＜35 |
| Size of finished product (mm) |
0.25-0.015 | 0.25-0.015 | 0.25-0.015 | 0.25-0.015 | 0.25-0.015 |
| Shift output of different material fineness (t/h) |
0.8-6 | 1.2-8 | 1.8-12 | 2.8-20 | 3.5-25 |
| Rotate speed of central shaft (r/min) |
140 | 140 | 105 | 82 | 75 |
| Diameter of pulverizing ring (mm) |
1075×200 | 1280×240 | 1400×240 | 1770×280 | 1900×300 |
| Diameter of pulverizing roller (mm) |
320×200 | 370×240 | 410×240 | 450×280 | 500×300 |
| Main Motor (kw) |
37 | 55 | 75 | 132 | 160 |
| Fan Motor (kw) |
45 | 55 | 75 | 132 | 160 |
| Analyzer motor (kw) |
11 | 15 | 18.5 | 22 | 30 |
| Type | Size of finished product (mm) |
Shift output of different material fineness (t/h) |
| HGM100 | 0.25-0.015 | 0.8-6 |
| HGM120 | 0.25-0.015 | 1.2-8 |
| HGM130 | 0.25-0.015 | 1.8-12 |
| HGM160 | 0.25-0.015 | 2.8-20 |
| HGM175 | 0.25-0.015 | 3.5-25 |
For customization, please contact us.
