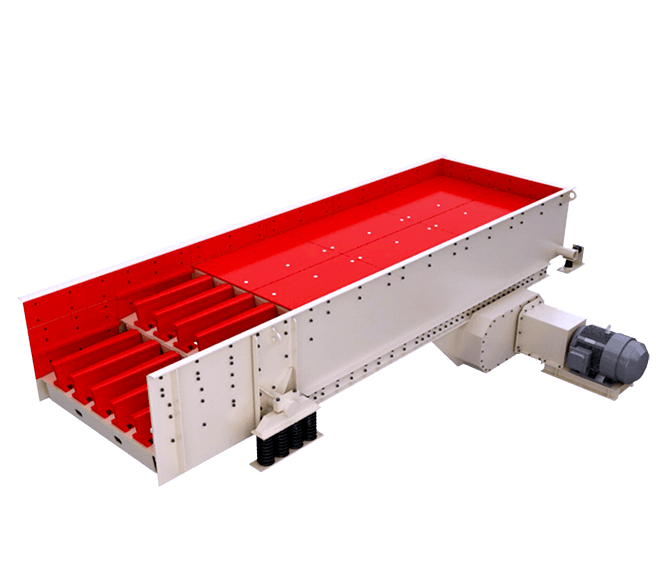

HSF Series Heavy-Duty Rods Vibrating Feeder

HSF Series Heavy-Duty Rods Vibrating Feeder

Maximum Feeding Size: 700-1500mm

  • Maximum Processing Capacity: 400-1700t/h
  • Length of the Bar: 1×900--2×900

40 years of senior mining machinery solutions”

Email us ( ) , we will reply to you within 24 hours. Get a quote

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

HSF series bar vibrating feeder is designed according to heavy duty condition, which is suitable for feeding to crushing equipment of large and medium to primary crushing in stone materials, building materials and metallurgical mines.

HSF Series Heavy-Duty Rods Vibrating Feeder Features:

  1. The tank designed according to the heavy duty condition has strong impact resistance

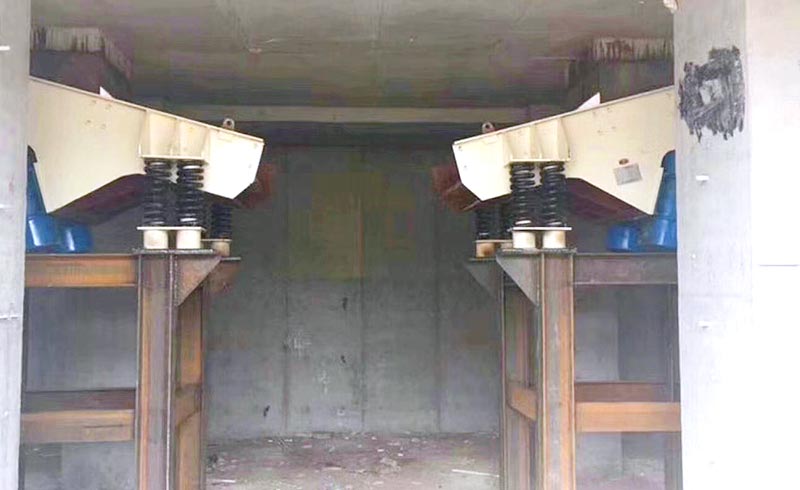

  2. Double shaft bearing with independent oil tank, combined with pin spring bearing, Which is suitable for different installation angles.

  3. Modular design, Universal interchangeable parts of consumables.

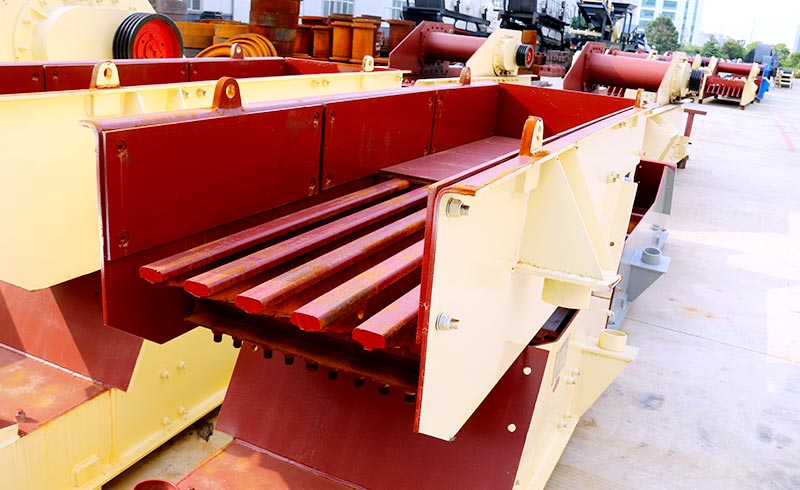

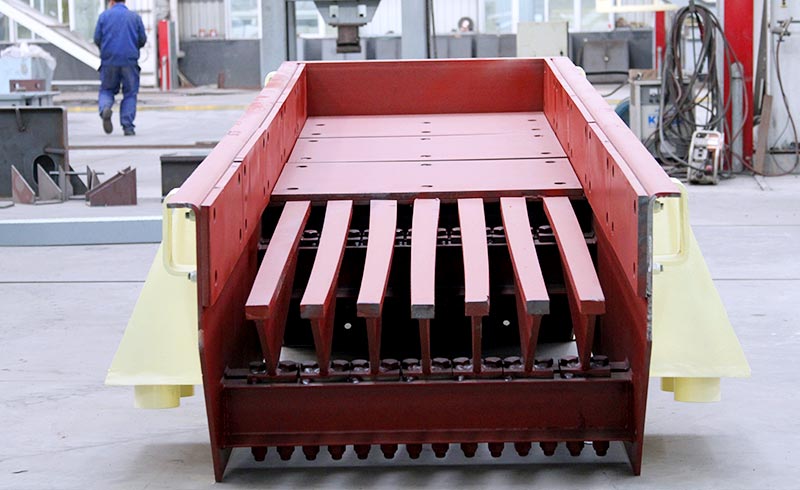

  4. Bar slits can be adjusted, There is a drop between the two bars, and the material distribution is more uniform.

  5. The second layer sorting screen can be selected to improve the utilization rate of raw materials


Technical data

  • HSF Series Heavy-Duty Rods Vibrating Feeder
Model Trough Size
Lendth Of The Bar
Maximum Feeding Size
Application Maximum Processing Capacity
Main Motor Power
HSF1040 1000×4000 1×900 700 fixed/movable 400 15
HSF1245 1200×4500 1×900 800 fixed/movable 500 22
HSF1262(S) 1200×6200 2×900 800 fixed 500 22
HSF1345 1300×4500 1×900 900 fixed/movable 750 22
HSF1362(S) 1300×6200 2×900 900 fixed 750 30
HSF1562(S) 1500×6200 2×900 1000 fixed 800 30
HSF1862(S) 1800×6200 2×900 1200 fixed 1200 37
HSF2162 2100×6200 2×900 1500 fixed 1700 45

the types with (S) means you can choose additional sieve layer

  • HSF Series Heavy-Duty Rods Vibrating Feeder
Model Maximum Feeding Size
Maximum Processing Capacity
HSF1040 700 400
HSF1245 800 500
HSF1262(S) 800 500
HSF1345 900 750
HSF1362(S) 900 750
HSF1562(S) 1000 800
HSF1862(S) 1200 1200
HSF2162 1500 1700

the types with (S) means you can choose additional sieve layer

For customization, please contact us.
