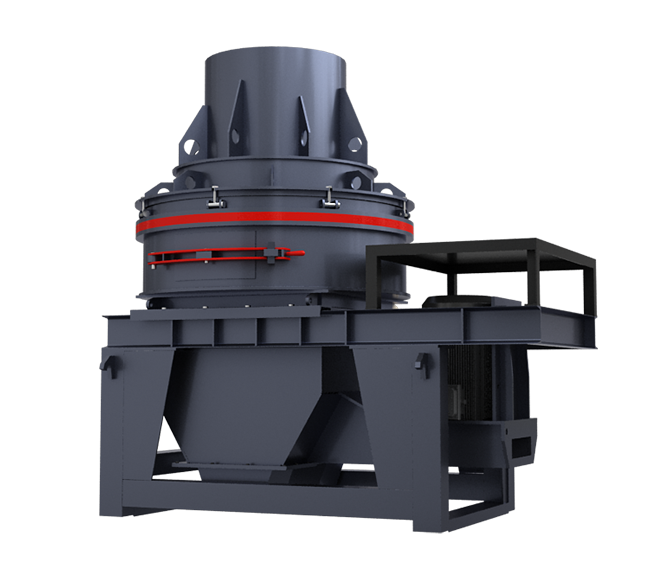

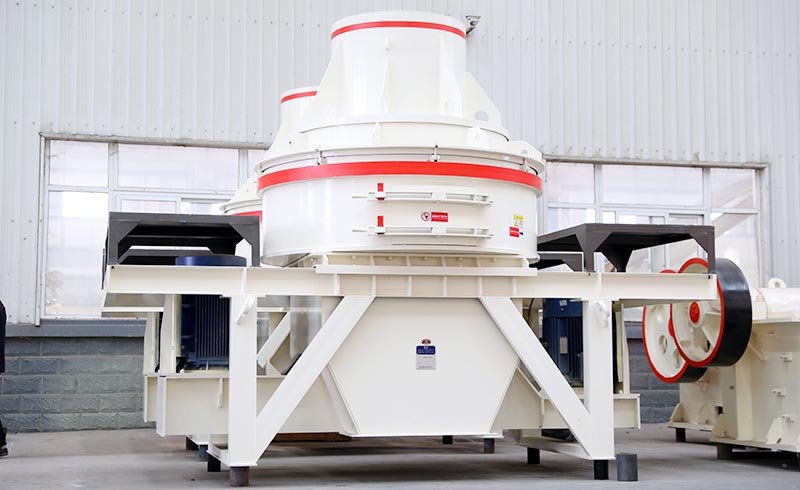

Hx vertical shaft impact crusher

Hx vertical shaft impact crusher

Application fields:crushing nonmetal mine, concrete, fireproof material, abrasive filler, frit, construction aggregate, sand, metallurgy and so on.

  • Processing ability: 12-160t/h
  • Maximum feeding size: ≤60mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

HX series Vertical Shaft Impact Crusher is widely used for artificial sand, in metal and non-metal ores, cement, refractory material, bauxite, silicon carbide, glass material, building material, which has the features such as high crushing ratio, energy-saving, crushing mid-hardness and ultrahard materials, final product is cubic, low environment pollution.It is the indispensable machine in sand making industry and it is also the most ideal truing machine for mining and construction industries.

Hx vertical shaft impact crusher Features:

  1. 1. Large capacity, stable running.

  2. 2. Low consumption of wearing parts.

  3. 3. Perfect product shape, suit for sand making and stone reshaping.

  4. 4. Thinning oil lubricant and automatic maintenance.

Product
presentation

Technical data

  • Sand Making Machine
Model
specification
Max.feeding
size
(mm)
Power
(kw)
Rotation
speed of
impeller
(r/min)
Capacity
(t/h)
Overall
dimension
(L×W×H)
(mm)
HX-06 35 2P   37-55KW 2000-3000 12-30 2500×1620×2600
HX-07 45 4P   55-75KW 1500-2500 25-55 2700×1760×2800
HX-09 50 4P   110-150KW 1200-2000 55-100 3900×2000×3070
HX-10 60 4P   150-180KW 1000-1700 100-160 4600×2350×3450
  • Sand Making Machine
Model
specification
Max.feeding
size(mm)
Capacity
(t/h)
HX-06 35 12-30
HX-07 45 25-55
HX-09 50 55-100
HX-10 60 100-160

For customization, please contact us.

Applied material:

pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, construction waste, etc
