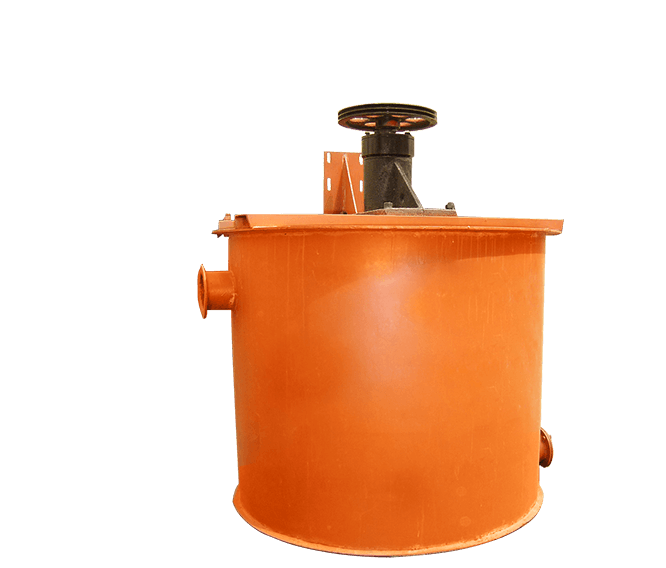

Agitating Tank

Agitating Tank

Application fields: Cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal dressings, and glass ceramics.

  • Effective volume: 0.58-135.4m3
  • Power range: 1.5-37kw

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The Agitating Tank is driven by the electric motor V-belt drive to rotate the impeller, fully mix the drug and the slurry, and increase the reaction time of the chemical to strengthen the reaction quality of the drug. The machine is suitable for mining, and can also be used as various chemical industries. Stir the ingredients.

The machine is arranged to fully mix the agent and the slurry before the flotation operation, so as to exert the effect of the medicament as much as possible, and it is suitable for the stirring of the slurry and the flotation agent having a concentration of not more than 30% and an ore density of not more than 3.5.

Agitating Tank Features:

  1. 1. The Agitating Tank is small in size, light in weight, easy to install and disassemble

  2. 2. Tt is necessary to adjust the upper, lower, left and right positions and inclination angle of the mixer within the specified range

  3. 3. High stirring efficiency, good sealing performance

  4. 4. Gear reduction Smooth operation, low noise, and long life

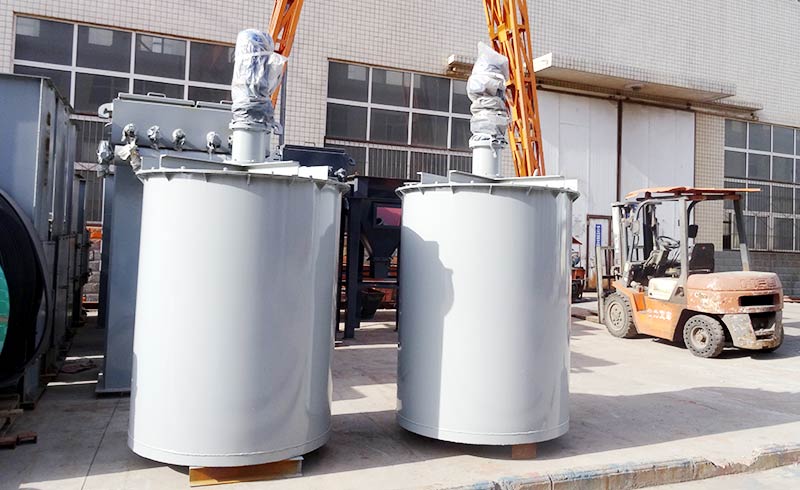

Product
presentation

Working Principle

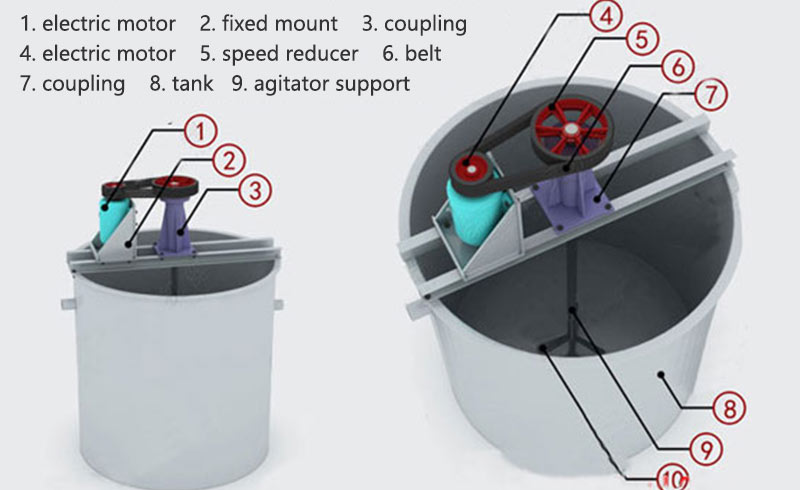

The Agitating Tank is composed of a motor, an impeller, a stator, a bearing and the like, and is stirred by a mechanical stirring method of a flat bottom barrel-shaped radiation circulating spiral impeller. When the agitating tank is working, the motor traction triangle belt drive device drives the impeller to rotate, and the slurry and the medicament are fully mixed with each other under the uniform stirring of the impeller, increasing the reaction time of the medicament on the pulp, and strengthening the reaction quality of the medicine, so that the material is obtained. Adequate mixing and mixing to prepare the necessary conditions for the next stage of flotation production.

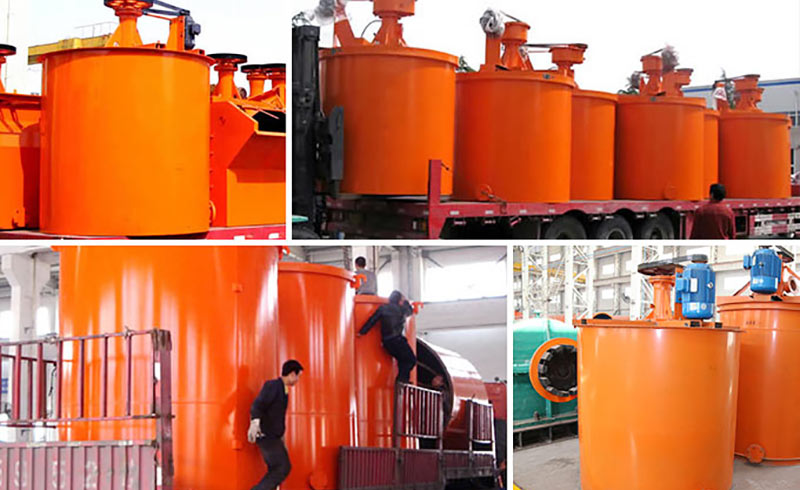

Welcome to the Factory for Consultation

The company is headquartered in Zhengzhou High-tech Industrial Development Zone, covering an area of 350,000 square meters, with more than 2,300 online employees, including more than 360 management and technical personnel with intermediate and senior titles. Professional technical staff to answer your questions, please contact us, and you are very welcome to visit the factory.

Technical data

  • Agitating Tank
Category Specification
 Model
Dimensions Effective
cubage(m³)
Rotate
speed(r/min)
Motor
power
(kw)
Dimensions
(L×W×H)
(mm)
Total
weight
(kg)
Diameter
(mm)
Height
(mm)
Agitating
 tank
XB-10×10 1000 1000 0.58 390 1.5 1130×1130×1521 1050
XB-12×12 1200 1200 1.18 390 2.2 1130×1330×1721 1160
XB-15×15 1500 1500 2.2 280 3.0 1750×1640×2190 1270
XB-20×20 2000 2000 5.6 210 5.5 2380×2160×2850 1700
XB-25×25 2500 2500 11.2 190 7.5 2990×2720×3540 3500
XB-30×30 3000 3000 19 140 18.5 4030×3270×3010 5200
XB-35×35 3500 3500 29 230 30 3920×3740×4970 6630
XB-40×40 4000 4000 45 210 37 4520×4320×5570 7830
Lifting
type
XBT-10×15 1000 1500 1 510 2.2 1130×1130×2070 1250
XBT-15×20 1500 2000 2.9 400 4 1636×1768×2785 1677
XBT-20×20 2000 2000 5.6 312 11 2180×2220×3015 3100
High-
efficiency
 leaching
 tank
XF-20×20 2000 2000 7.07 82.5 1.5 2032×2032×3595 2400
XF-25×30 2500 3000 13.5 57.6 2.2 2532×2532×4152 3670
XF-30×30 3000 3000 22.97 50.0 2.2 3180×3180×4673 5340
XF-35×40 3500 4000 35.6 41.0 4.0 3685×3685×5314 7140
XF-40×45 4000 4500 52.78 33.5 4.0 4185×4185×5814 9300
XF-45×50 4500 5000 74.75 33.5 5.5 4685×4685×6466 10500
XF-50×56 5000 5600 102.1 30.6 5.5 5185×5185×6975 12300
XF-55×60 5500 6000 135.4 24.4 7.5 5670×5670×7569 13500



  • Agitating Tank
Specification
 Model
Effective
cubage(m³)
Rotate
speed
(r/min)
XB-10×10 0.58 390
XB-12×12 1.18 390
XB-15×15 2.2 280
XB-20×20 5.6 210
XB-25×25 11.2 190
XB-30×30 19 140
XB-35×35 29 230
XB-40×40 45 210
XBT-10×15 1 510
XBT-15×20 2.9 400
XBT-20×20 5.6 312
XF-20×20 7.07 82.5
XF-25×30 13.5 57.6
XF-30×30 22.97 50.0
XF-35×40 35.6 41.0
XF-40×45 52.78 33.5
XF-45×50 74.75 33.5
XF-50×56 102.1 30.6
XF-55×60 135.4 24.4

For customization, please contact us.

Applied materials:

Copper ore, pyrrhotite, hematite, limonite, molybdenum ore, gold ore, iron ore, etc.
