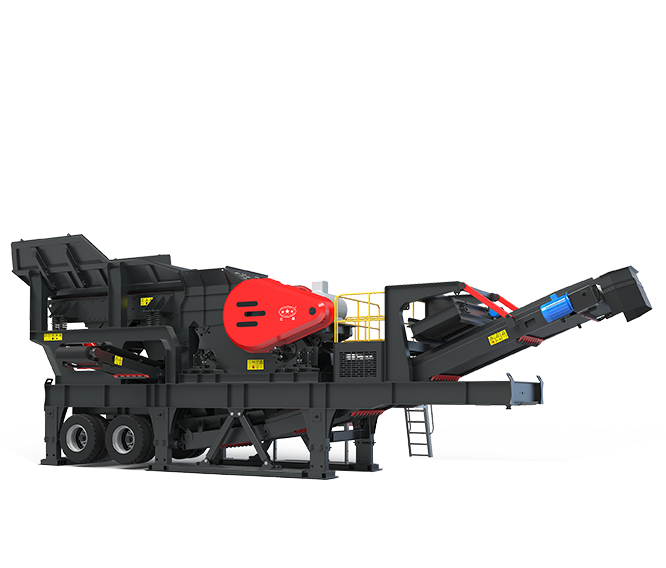

Mobile Jaw Crusher

Mobile Jaw Crusher

Application fields: mining, stone mining, highway (railway) construction, urban construction waste treatment, etc.

  • Processing capacity: 85-650 t/h
  • Finished size: 50-225 mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The mobile jaw crusher is a new type of crushing equipment suitable for crushing various ores or rocks with compressive strength below 250Mpa, such as construction waste, basalt, granite, coal gangue, cement clinker, iron ore, bauxite, quartz stone and so on.

In addition to mobile jaw crushers, we also have mobile cone crushers, mobile impact crushers, mobile hammer crushers, etc. We can provide customers with a variety of configurations according to the processing of raw materials, the scale, different requirements for materials and finished products.

mobile jaw crusher applications and applicable materials

Mobile Jaw Crusher Features:

  1. 1. Hydraulic lifting feeding guard plate, easy installation, and disassembly, fixed and convenient, stable and reliable.

  2. 2. The feeding guard plate adopts a grading double-layer structure, which provides a prerequisite for the personalized extension of the guard plate.

  3. 3. Adopting a ship-type steel frame, with low chassis, lightweight, and reasonably controlled volume.

  4. 4. The direct operation can help avoid the complex infrastructure installation steps and lower labor consumption.

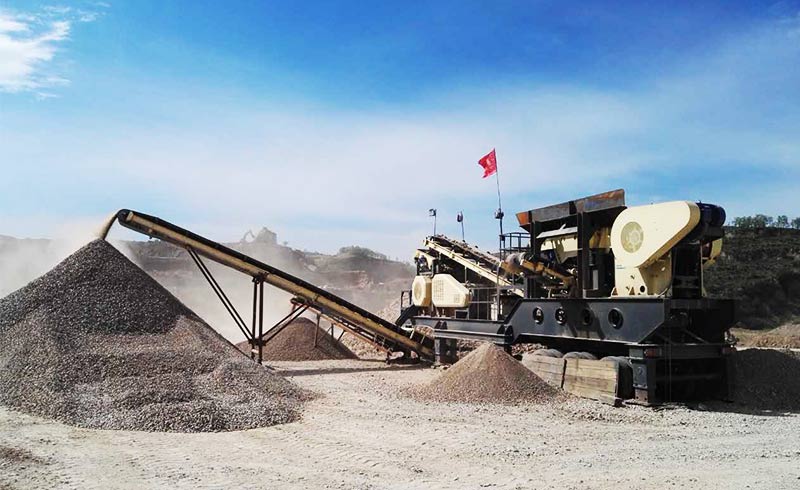

mobile jaw crusher crushing rock stone scene

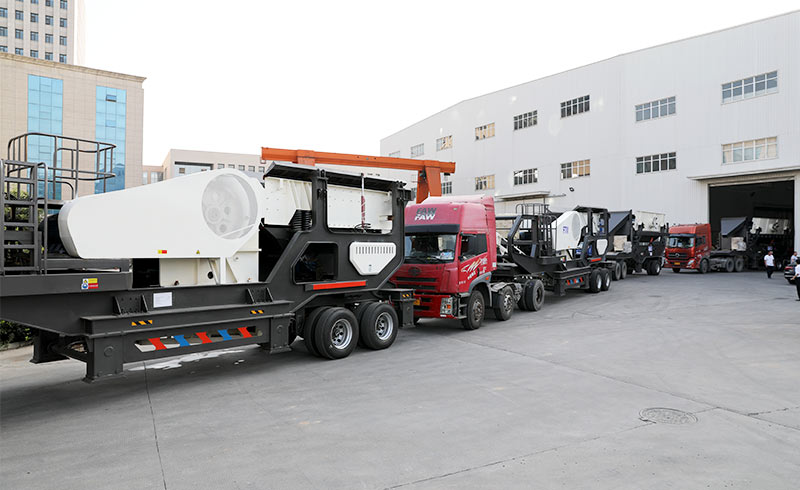

mobile jaw crusher ready for delivery
customers visit the factory
Product
presentation

Extended Function

Mobile crusher can achieve multi-machine combination work. In a short time, the feed unit, the crushing unit, and the screening unit exchange system can be realized on the same body. The matching between the whole system can adapt to many occasions, which can greatly meet the different needs of customers. we promise 100% ex-factory price. So if you want to know something, such as prices and quotes, please ask us or send us an email: info@hxjq.com

Technical data

  • Mobile Jaw Crusher
Model HX938HD86 HX1149HD98 HX1349HD110 HX1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 14700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD86 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
  • Mobile Jaw Crusher
Model Maximum Feeding Size(mm) Capacity(t/h)
HX938HD86 500 85-275
HX1149HD98 550 110-350
HX1349HD110 660 215-510
HX1349HD125 800 280-650

For customization, please contact us.
