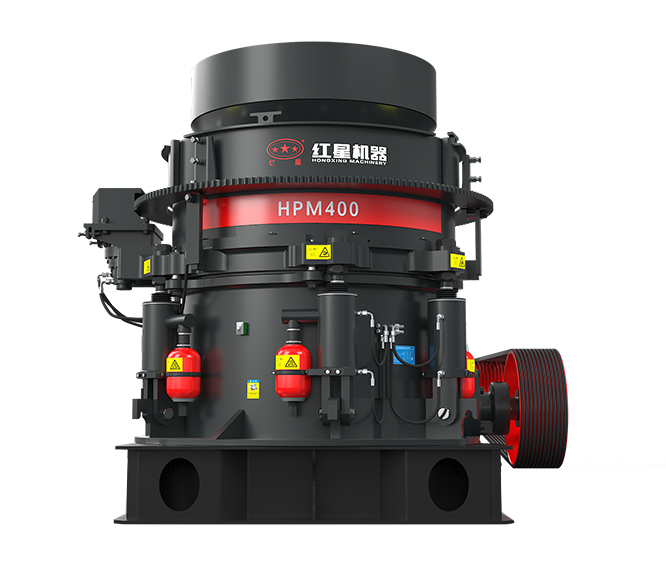

Multiple Cylinder Hydraulic Cone Crusher

Multiple Cylinder Hydraulic Cone Crusher

Applications: Used in mining, building materials, transportation, energy, chemical and other industries.

  • Processing capacity: 72-1100t/h
  • Feeding size: ≤ 326mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

Multi-cylinder hydraulic cone crusher is upgraded based on the traditional spring cone crusher by Hongxing Machinery combining the advanced technology. It can be used in the processing of raw materials such as mining, metallurgy, construction, chemical industry, electric power, highway, etc. It is a representative of materials with medium hardness and fine crushing. This machine uses advanced technology and has good performance and stability, which is widely welcomed by the majority of users.

Multi-cylinder hydraulic cone crusher applications and applicable materials

Multiple Cylinder Hydraulic Cone Crusher Features:

  1. 1. Fixed shaft structure design, large crushing force, low investment in equipment base.

  2. 2. Laminated crushing cavity design, uniform particle size(cubic), low energy consumption.

  3. 3. Equipped with remote touch screen operation interface, display real-time working status.

  4. 4. Rolling wall does not require filler, quick and easy to replace.

  5. 5. Use the hydraulic motor to adjust the discharge port, convenient and easy.

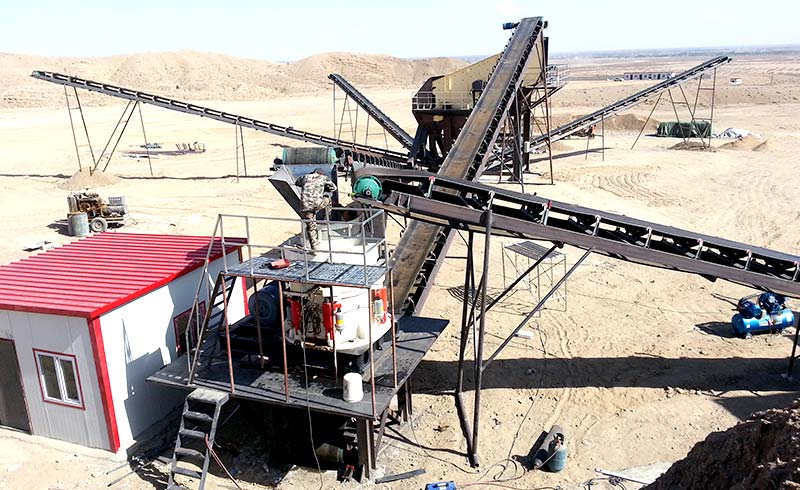

Multi-cylinder hydraulic cone crusher production site

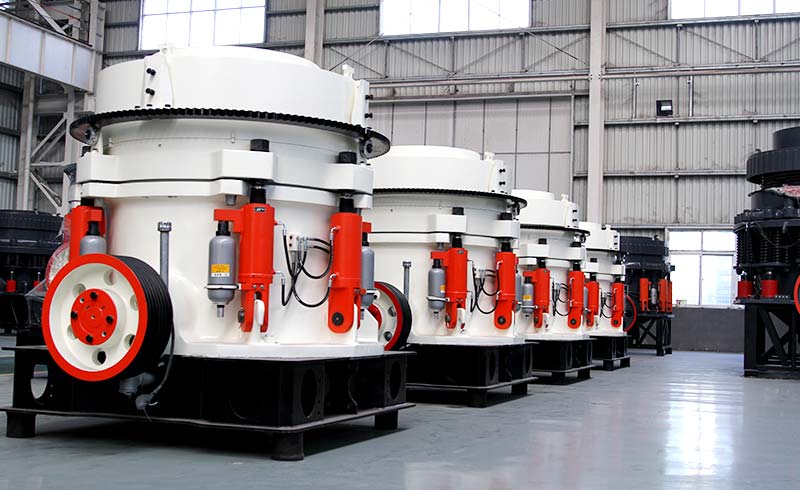

the company produces a variety of models for customers to choose

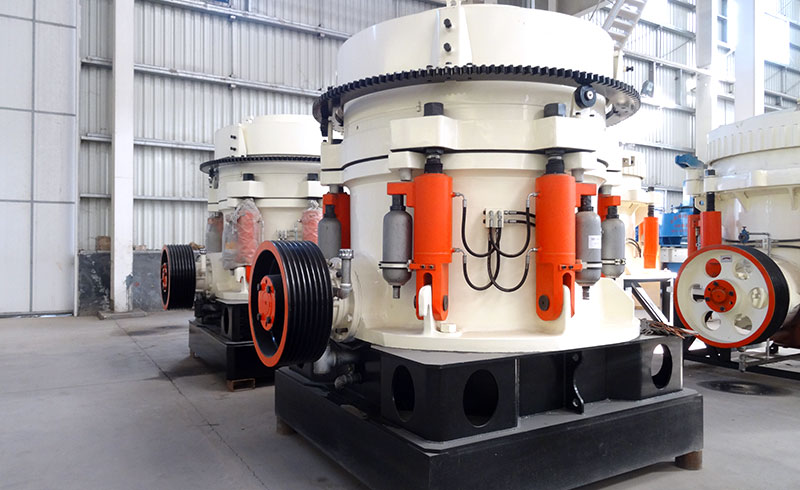

multiple cylinder hydraulic cone crusher
Product
presentation

Price Analysis

The price of multi-cylinder hydraulic cone crusher is affected by many factors, including model, technology, material selection, etc. The details are as the following:

Models: In the case of the same equipment, the model size is different, and the investment cost is not the same, so the quotation is different. The larger the model, the higher the price; the smaller the model, the lower the price.

Technology: The more advanced the technology, the higher the price, otherwise the equipment price is low. Users must pay attention to whether the technology meets the production requirements when purchasing equipment.

Materials Selection: The higher the cost of the material, the higher the price. The user needs to have a detailed understanding of the materials selected for the manufacturing equipment during the purchase process.

Technical data

  • Multi-Cylinder Hydraulic Cone Crusher
Model Cavity Diameter
of large
end of
crushing
cone
(mm)
Width of
Feeding
Opening(mm)
Max.
feeding
size
(mm)
Adjusting
Range of
Discharge
 Opening
 (mm)
Processing
capacity(t/h)
Main motor
power(kw)
Weight of
Main
Machine
(t)
HXHP200 C1 900 210 178 22~38 160~250 160 10.1
C2 155 132 18~38 145~250
C3 130 110 14~38 120~250
F1 118 100 12~25 108~210
F2 90 76 10~25 81~210
F3 70 60 8~25 72~210
HXHP300 C1 1100 235 200 26~45 230~445 220 17.8
C2 211 180 20~45 200~445
C3 135 115 16~45 180~445
F1 124 105 14~25 160~220
F2 96 82 12~25 140~220
F3 70 60 8~25 120~220
HXHP400 C1 1400 330 280 26~51 270~630 315 25
C2 200 170 22~51 243~630
C3 152 130 16~51 210~630
F1 135 115 12~25 162~370
F2 106 90 10~25 126~370
F3 80 68 8~25 104~370
HXHP500 C1 1500 335 285 32~51 365~790 400 34.1
C2 229 190 25~51 328~790
C3 180 152 19~51 280~790
F1 152 130 13~25 202~450
F2 124 105 10~25 158~450
F3 88 75 8~25 122~450
HXHP800 C1 2000 385 326 32~51 616~1100 630 69.2
C2 350 298 25~51 522~1100
C3 280 238 16~51 380~1100
F1 160 136 13~25 328~730
F2 120 102 10~25 270~730
F3 90 77 8~25 166~730
  • Multi-Cylinder Hydraulic Cone Crusher
Model Max. feeding
size (mm)
Processing
capacity(t/h)
HXHP200 178 160~250
132 145~250
110 120~250
100 108~210
76 81~210
60 72~210
HXHP300 200 230~445
180 200~445
115 180~445
105 160~220
82 140~220
60 120~220
HXHP400 280 270~630
170 243~630
130 210~630
115 162~370
90 126~370
68 104~370
HXHP500 285 365~790
190 328~790
152 280~790
130 202~450
105 158~450
75 122~450
HXHP800 326 616~1100
298 522~1100
238 380~1100
136 328~730
102 270~730
77 166~730

For customization, please contact us.

SOLUTION

Stone Crusher In Mexico

Stone Crusher In Mexico

China Henan Hongxing Machinery Mining Machinery Co., Ltd. is a large-scale joint-stock enterprise mainly engaged in the production of heavy mining machines, as well as scientific research, production and sales. The crushing series machines produced by the company are widely used in metallurgical, ch

MORE +
Stone Crushing Plant

Stone Crushing Plant

The Stone Crushing Plant produced by Hongxing Mining Machinery has many varieties, models, fast delivery, guaranteed quality. To provide you with one-on-one after-sales service, welcome online consultation.

MORE +
Applicable materials:

Quartz stone, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, etc.
