Ore Processing Plant

Ore Processing Plant

Main Parts: stone crusher, jaw crusher, ball mill, magnetic separator, vibrating screen, vibrating feeder, etc

  • Production capacity: 0.65-615t/h
  • Feeding size: 0-25mm

Applied materials: magnetite, pyrrhotite, roasted ore, ilmenite, iron ore, gold ore, copper ore, chrome ore, zinc ore, lead ore, etc.

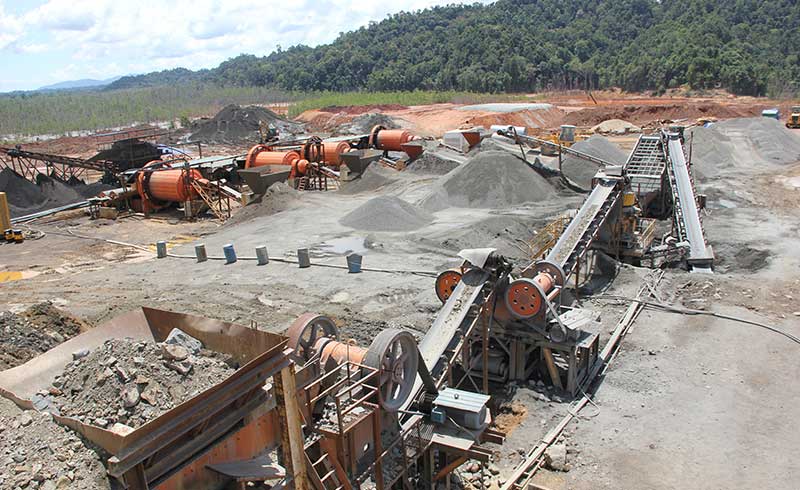

Introduction of Ore Processing Plant

Ore processing plant is also called beneficiation plant. It is a kind of production line of selecting kinds of mineral ores. Ore processing plant mainly has two processes: flotation separating process and magnetic separation process. The beneficiation machine of the former process is flotation machine, and the later is magnetic separator. Users can choose a suitable process according to different ores, or consult our customer service staff at any time.

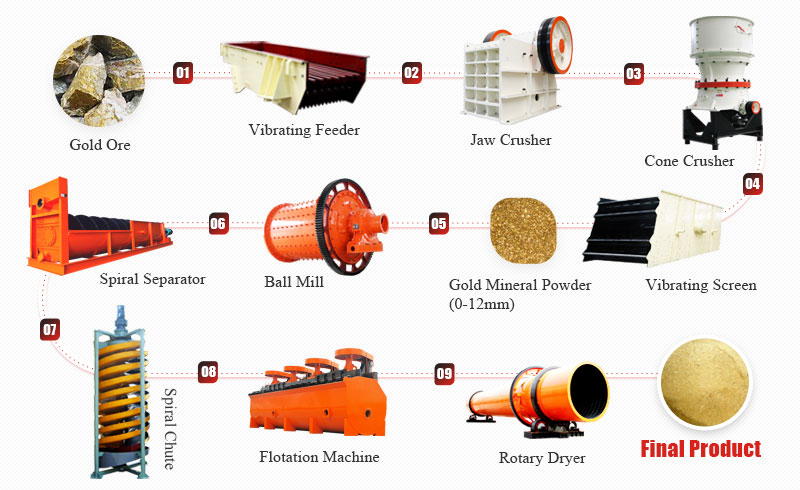

Procedure of Ore Processing Plant

1) The mined ore is firstly crushed by a jaw crusher or other crusher machine;

2) Uniformly fed into the ball mill through a elevator or feeder;

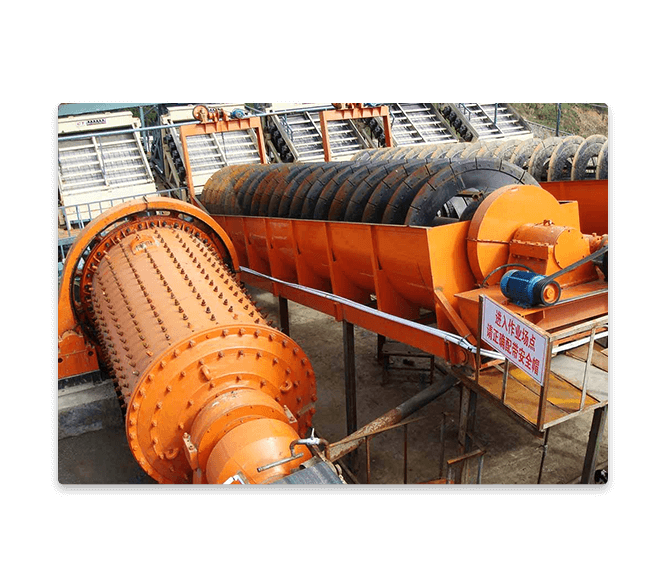

3) Clean classify the ore mixture through a spiral classifier by the principle that the specific gravity of the solid particles is different and the rate of precipitation in the liquid is different.

4) Separate the magnetic material through a magnetic separator, due to different magnetic susceptibilities, by magnetic force and mechanical force.

5) Send the materials into the flotation machine, and then add different drugs according to different mineral characteristics;

6) Initially concentrate by a concentrator; Use a rotary dryer to obtain dried minerals.

Why Choose Our Equipment

1. Proving beneficiation technology and consultation.

2. Raw ore testing and evaluation.

3. Site chosen consultation and evaluation.

4. Site design and layout design.

5. Installation, erection, and commissioning instruction.

6. Products training support.

Price List of Ore Processing Plant

In order to support you on your requirements, we have prepared more solutions and price. Three ways to get them:

1. Contact the online customer service

2. Send an email to info@hxjq.com

3. Leave your contact details and requirements in the message box at the bottom of the page

Our project manager and engineer will contact you within 24 hours.

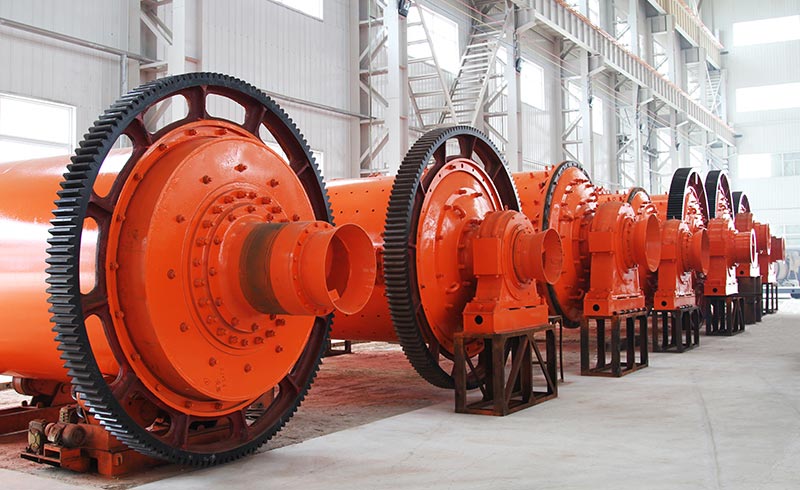

Technical data

icon
Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 ≤25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 ≤25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 ≤25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 ≤25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 ≤25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 ≤25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 ≤25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 ≤25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 148-615 4500 525
