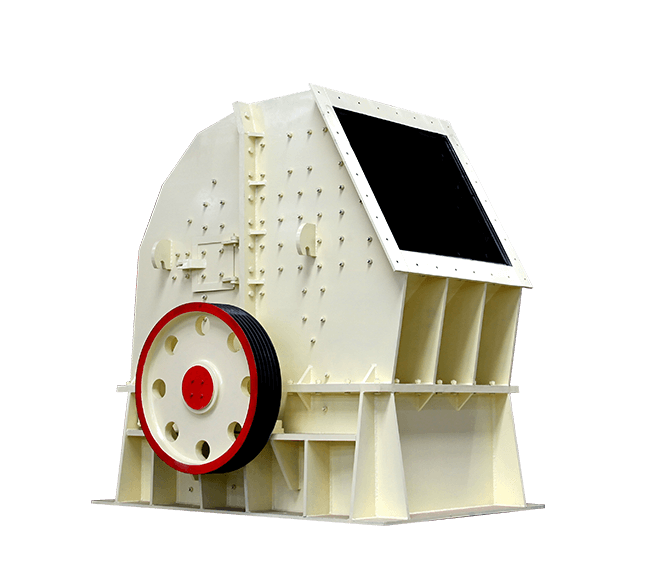

PCX Hammer Shaping Crusher

PCX Hammer Shaping Crusher

Application areas: gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.

  • Processing capacity: 40-1200t/h
  • Feeding size: ≤300

40 years of senior mining machinery solutions”

Email us ( ) , we will reply to you within 24 hours. Get a quote

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

PCX hammer shaping crusher adopts the advanced production technology and process. It is a kind of advanced machine in the hammer crusher series in the industry, which has the characteristics of high efficiency, energy saving, and environmental protection. The machine is mainly used in cement, mining, coal preparation, power generation, chemical, and building materials industries. PCX hammer shaping crusher is widely used to crush kinds of brittle materials and materials with medium hardness, such as limestone, coal and so on.

PCX Hammer Shaping Crusher Features:

  1. Cost Reduced, Low Consumption : molding for one time, there is no need for secondary crushing and shaping process, so it can reduce cost by about 40%, energy consumption, and investment

  2. Widely Applied : it is particularly suitable for crushing limestone and stone with a compressive strength of less than 200Mpa

  3. High Degree of Automation : Use an external oil pump, fuel tank, pipeline lubrication system. The machine can automatically shut down when the oil temperature is too high or the oil flow rate is too slow

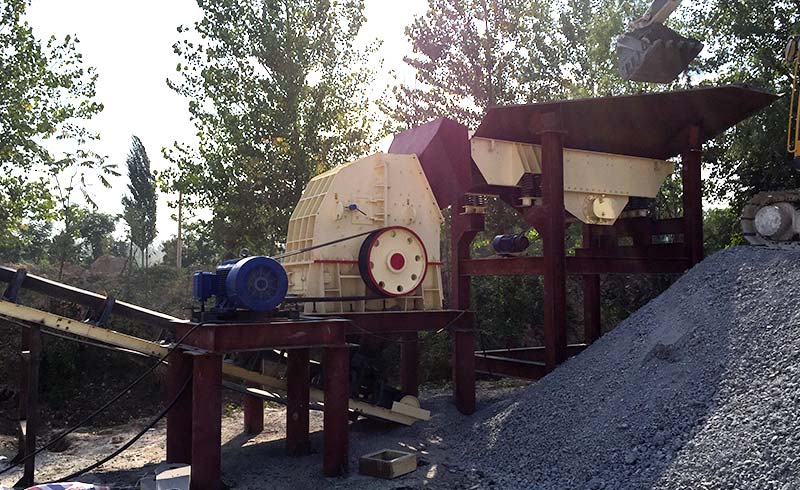

PCX hammer shaping crusher production site

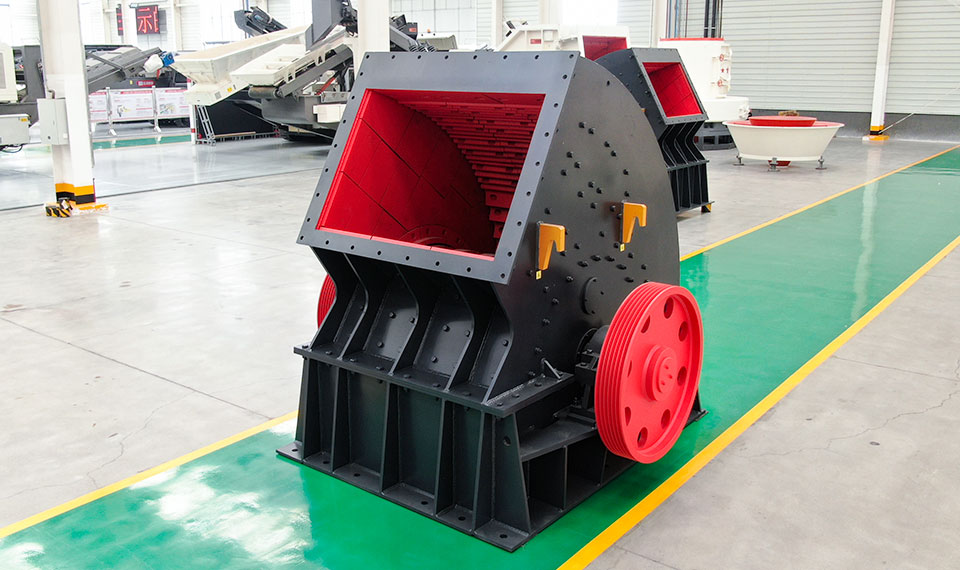

PCX hammer shaping crusher

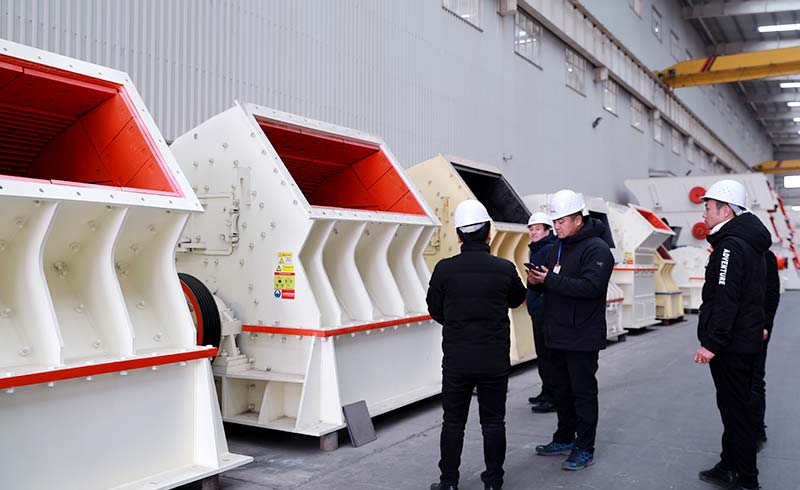

Customers visit the PCX hammer shaping crusher production plant

Price Analysis

The price of the PCX hammer shaping crusher is affected by many factors. The equipment price of different sizes and models also vary greatly, including the technology selected by the equipment and the production requirements of the users. Also, according to the materials selected by different manufacturers and different production areas, the difference in economic consumption level can make the price of equipment fluctuate.

As a powerful production enterprise, Hongxing Machine has always adopted a more reasonable preferential strategy for the price of equipment. The small profit marketing model allows users to buy high-end equipment at a more reasonable price. For a specific price, please click on the online consultation.

Technical data

  • PCX Hammer Shaping Crusher
Model Rotor×Length(mm) Feed Opening  Length×Width(mm) Max.Feeding Size(mm) Capacity(t/h) Power(kw) Dimensions(L×W×H(mm)
PCX-0706 700×570 618×510 ≤200 50-70 75 1950×1340×1480
PCX-0808 800×750 780×610 ≤200 80-100 132 2280×1790×1570
PCX-0910 900×1000 1070×750 ≤200 150-200 110×2 2600×2200×1940
PCX-1012 1000×1180 1315×900 ≤200 250-300 132×2 2760×2430×2290
PCX-1213 1260×1280 1430×1010 ≤250 300-350 160×2 3067×2622×2580
PCX-1216 1260×1490 1630×1010 ≤250 400-500 200×2 3067×2832×2580
PCX-1220 1260×1950 2090×1010 ≤250 500-700 220×2 3067×3380×2580
PCX-1622 1600×2150 2300×980 ≤300 600-900 315×2 4100×3500×3000
  • PCX Hammer Shaping Crusher
Model Max.Feeding Size(mm) Capacity(t/h)
PCX0706 ≤200 50-75
PCX0808 ≤200 80-100
PCX0910 ≤200 150-200
PCX1012 ≤250 250-300
PCX1213 ≤250 300-350
PCX1216 ≤250 400-500
PCX1220 ≤250 500-700
PCX1622 ≤300 600-900

For customization, please contact us.
