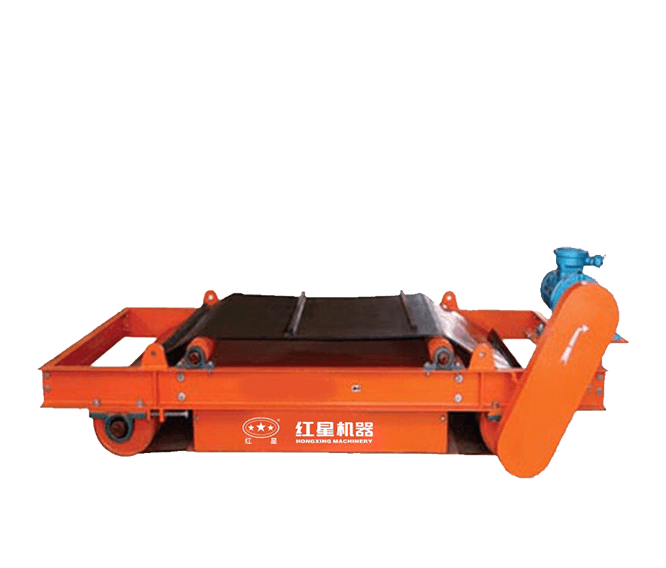

Permanent Magnet Self-Discharging Iron Remover

Equipment Introduction

The RCYD type permanent magnet self dumping iron remover is equivalent to the RCYC series model and is widely used for iron removal in various industries such as metallurgy,mining,coal preparation plants,ceramics,glass,cement,fertilizers, plastics,building materials,papermaking,and other conveying systems.It can achieve continuous absorption and disposal of iron.The tape has the characteristics of automatic deviation correction,simple installation,convenient use,and reliable operation.Its internal magnetic circuit adopts a complete magnetic pole structure,ensuring the long-term and stable operation of the entire machine in harsh environments.It's equipped with explosion-proof and armored types.

Permanent Magnet Self-Discharging Iron Remover Features:

1. 1, The magnetic circuit adopts computer simulation design, perfect double magnetic pole structure, high magnetic field strength, large gradient and large suction force.

2. 2, The high-performance NdFeB is used as the magnetic source, and the magnetic energy product is high, and it is not easy to demagnetize. The demagnetization is less than 5% in eight years.

3. 3, The drum drum structure has automatic rectification function, fully sealed bearing seat, good sealing performance, and can adapt to various harsh environments.

4. 4, The belt is automatically unloaded to ensure long-term trouble-free continuous operation.

5. 5, The control part can be interlocked with the belt conveyor to realize local manual control and centralized control

Product
presentation

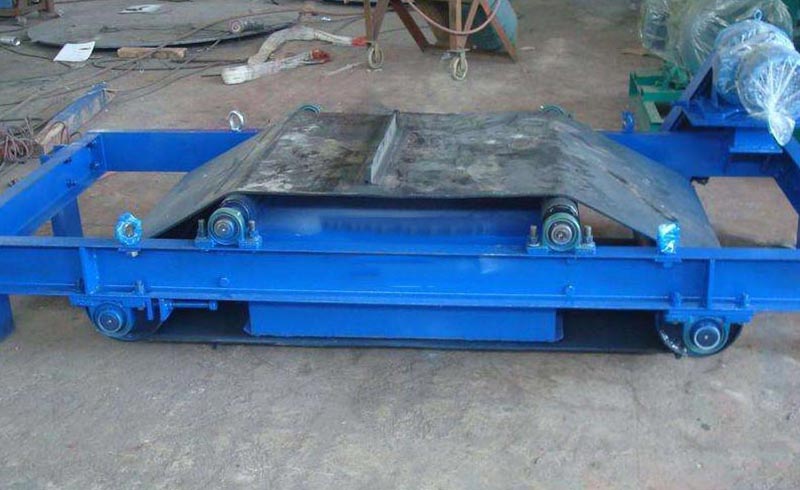

The Permanent Magnet Self-Discharging Iron Remover is a high-performance permanent magnet core, composed of iron unloading chain cover, manual iron removal, and various types of conveyors are used. The internal magnetic circuit design uses a computer to simulate a double magnetic pole structure. When the ferromagnetic impurities accumulated at the bottom of the magnet accumulate to a certain extent, the manual manual handle drives the scraper to remove the waste.
