PEY Series Hydraulic Jaw Crusher

PEY Series Hydraulic Jaw Crusher

Applications: sand and gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.

  • Processing capacity: 30-220t/h
  • Feeding size: <630mm

40 years of senior mining machinery solutions”

Email us ( ) , we will reply to you within 24 hours. Get a quote

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

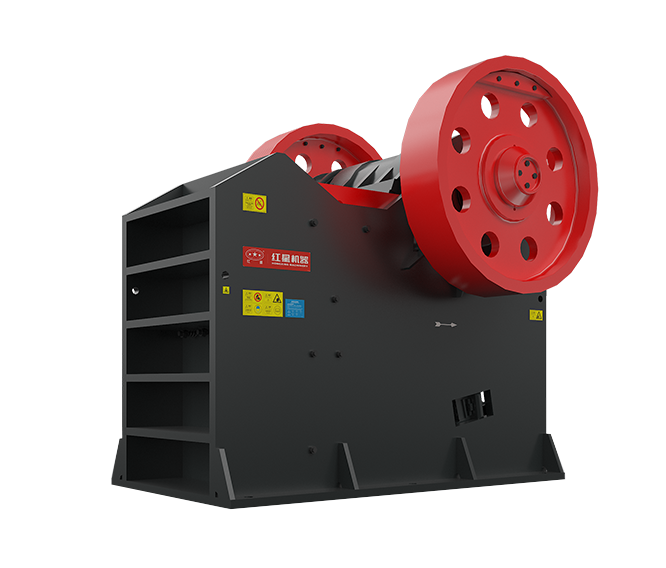

PEY series hydraulic jaw crusher is a kind of compound pendulum crusher with overload protection. It is mainly composed of three parts: main engine, hydraulic protection device, and electric control cabinet. The hydraulic protection device has automatic unloading function. When the jaw mouth bites into unbreakable materials, the load on the machine rises sharply and is automatically unloaded by the hydraulic protection device, avoiding the impact caused by a sudden increase in load. This machine can be safely used in crushing operations when materials are extremely strong and hard.

PEY series hydraulic jaw crusher applications and applicable materials

PEY Series Hydraulic Jaw Crusher Features:

  1. 1. The hydraulic system can be used to solve the problem of jamming.

  2. 2. It can set the workload threshold arbitrarily, can also be used to crush the selection of materials with different strength, and the scope of application is very wide.

  3. 3. This machine has fast recovery production function, avoiding a large amount of unbroken material pouring into the process after troubleshooting.

Factory Price

Each compound crusher manufactured by Hongxing Machinery meets the national environmental protection standard. Hongxing is strict with quality, only to make excellent crushing equipment so that every customer can have a better process experience in use. All the crusher equipment in Hongxing enjoy a large preferential policy, and long-term customers and customers who bulk purchase are more preferential. Detailed discount information can be free of charge online to consult our customer service staff to obtain accurate and reasonable compound crusher prices.

Technical data

  • PEY Series Hydraulic Jaw Crusher
Model PEY-400x600 PEY-500x750 PEY-600x900 PEY-750x1060


Size of feeding port(mm) 400x600 500x750 600x900 750x1060 300x1300
Max. Feeding size (mm) 340 425 500 630 250
Max. Feeding size(mm) 40~90 35~100 75~125 80~150 20~100
Eccentric shaft speed 30 255 250 255
Handling capacity(t/h) 30~65 50~120 80~200 120~220 40~100
Power of main motor(KW) 30 55 75 110 75
Hydraulic cylinder working pressure:5-7MPa
ylinder diameter:Φ250mm
Piston stroke:160mm
working pressure:5-8MPa
ylinder diameter:Φ320mm
Piston stroke:200mm
working pressure:11MPa
ylinder diameter:Φ400mm
Piston stroke:320mm
working pressure:5-8MPa
ylinder diameter:Φ320mm
Piston stroke:200mm
Dimensions (L x W x H) 3030x1350x1600 3300x1900x2100 3955x3360x2398 4980x2500x3100 4050x3420x1850
Weight(kg) 9480 16200 23400 37800 18200
  • PEY Series Hydraulic Jaw Crusher
Model Max.Feeding
size (mm)
PEY-400x600 340 30~65
PEY-500x750 425 50~120
PEY-600x900 500 80~200
PEY-750x1060 630 120~220
PEY-300x1300 250 40~100

For customization, please contact us.
