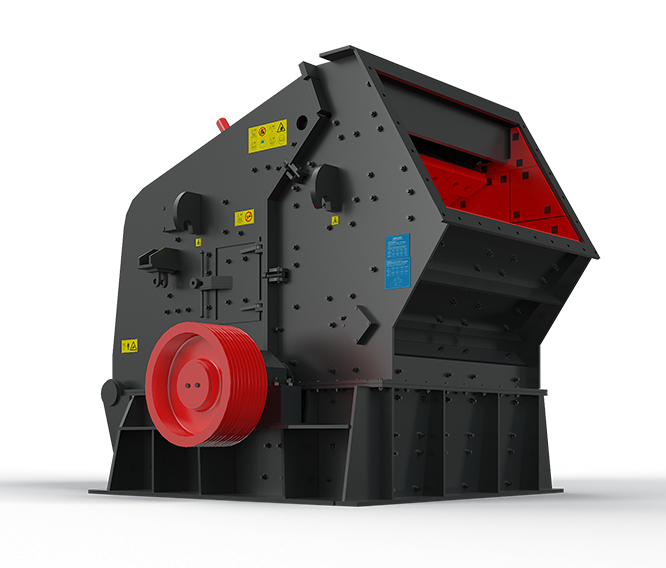

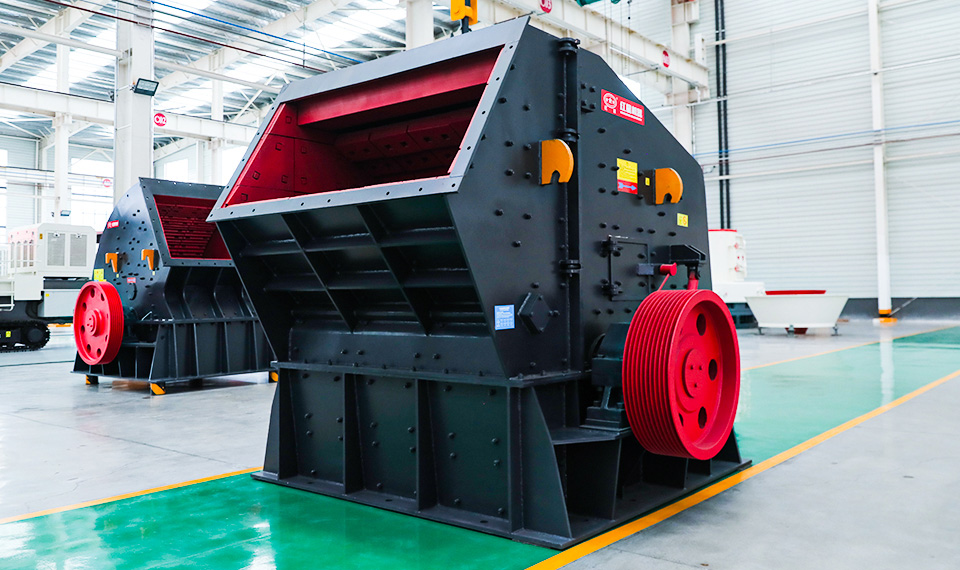

PF Series Impact Crusher - Hongxing Mining Machinery

Equipment Introduction

The unique structural design and advanced manufacturing process of the PF impact crusher are widely used in the crushing of low abrasion materials with medium hardness and below in industries such as railways,highways,energy,building materials,and chemical engineering.

PF Series Impact Crusher Features:

Large feed inlet,high crushing chamber,suitable for high material hardness,large particle size,and low product stone.
The gap between the counterattack plate and the plate hammer can be easily adjusted,effectively controlling the powder. discharge particle size and achieving good particle shape.
Compact structure,strong machine rigidity,and large rotational inertia of the rotor.
High chromium plate hammer,resistant to impact,wear,and strong impact force.

Technical data

PF Series Impact Crusher

Model	Specifications(mm)	Feed Openting(mm)	Maximum Feeding size（mm）	Capacity（t/h）	Power（KW）	Dimensions L×W×H（mm）
PF1007	ø 1000×700	400×730	300	30-70	4P 37-45	2330×1660×2300
PF1010	ø 1000×1050	400×1080	350	50-90	4P 45-55	2370×1700×2390
PF1210	ø 1250×1050	400×1080	350	70-130	6P 110	2680×2160×2800
PF1214	ø 1250×1400	400×1430	350	80-180	6P 132	2650×2460×2800
PF1315	ø 1320×1500	860×1520	500	100-280	6P 200	3180×2720×3120
PF1320	ø 1320×2000	993×2000	500	140-380	6P 250	3220×3100×3120
PF1520	ø 1500×2000	830×2040	700	200-550	4P 315-400	3959×3564×3330
PF1820	ø 1800×2000	1260×2040	800	300-800	6P 630-710	4400×3866×4009

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

PF Series Impact Crusher

Model	Feed Openting(mm)	Capacity（t/h）
PF1007	400×730	30-70
PF1010	400×1080	50-90
PF1210	400×1080	70-130
PF1214	400×1430	80-180
PF1315	860×1520	100-280
PF1320	993×2000	140-380
PF1520	830×2040	200-550
PF1820	1260×2040	300-800

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

For customization, please contact us.
