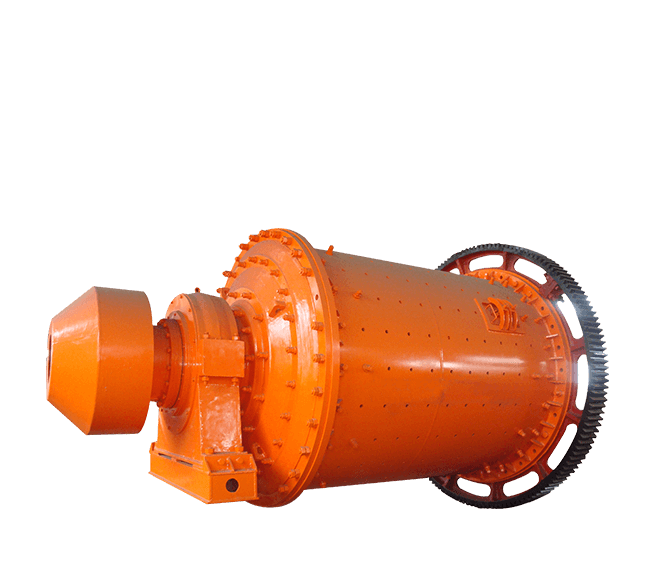

Rod Mill Type Sand Making Machine

Rod Mill Type Sand Making Machine

Applications: mining, building materials, transportation, energy, chemical and other industries.

  • Processing capacity: 0.62-180t/h
  • Feeding size: ≤50mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The rod grinding machine is an effective and economical rod mill type sand making machine. It is suitable for fine crushing and grinding various materials such as quartz sand, copper ore, iron ore, slag, refractory, gold ore, and concrete aggregate.

The rod mill sand making machine developed by Hongxing Machinery can save 50%+ energy than that of the same type of equipment on the market. Also, the higher efficiency and output are higher, which is hot sale equipment on the market.


rod mill application and applicable materials

Rod Mill Type Sand Making Machine Features:

  1. Save more than 40% of power than the old type.

  2. The advanced controllable in-and-out rod grinding sand making machine technology is combined with the actual user's grinding material to match the appropriate grinding media.

  3. The surface contact of the traditional ball mill is changed to line contact so that the discharging size of this machine is more uniform. It has less crushed ore particles and higher output and is suitable for ore with different hardness (Mohs hardness 5 - 12).

  4. The steel rod structure used to hit the material inside the machine is designed and manufactured with high-quality manganese steel, which has strong wear resistance and long service life.

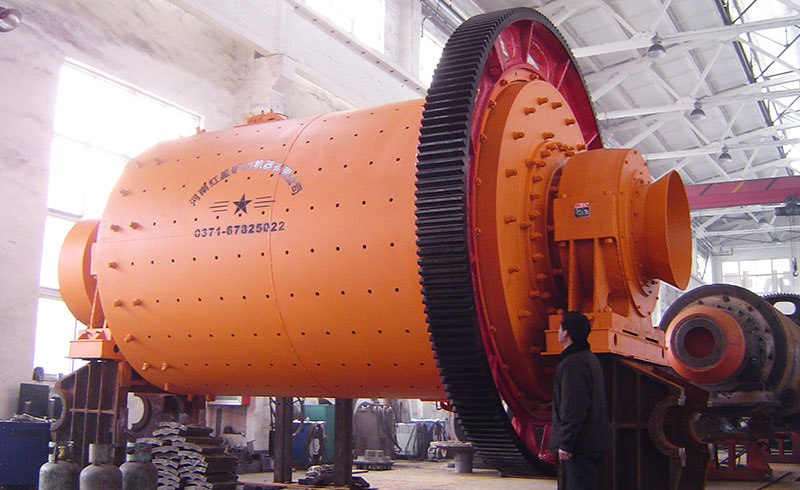

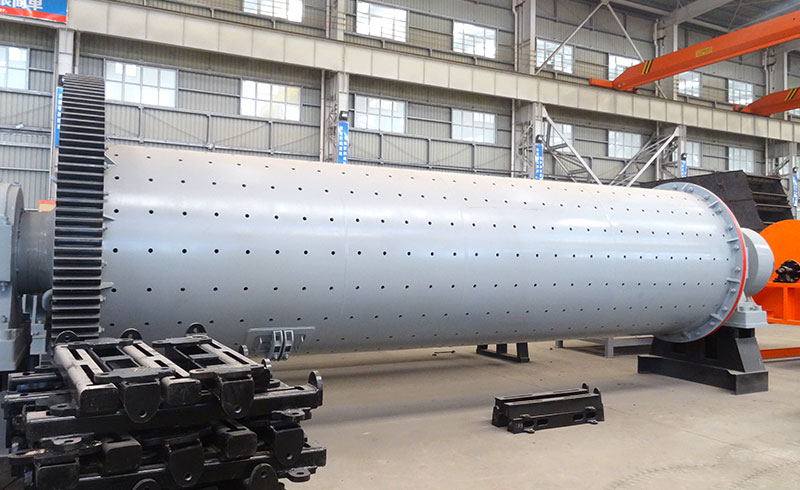

Rod Mill Type Sand Making Machine
customers visit factory

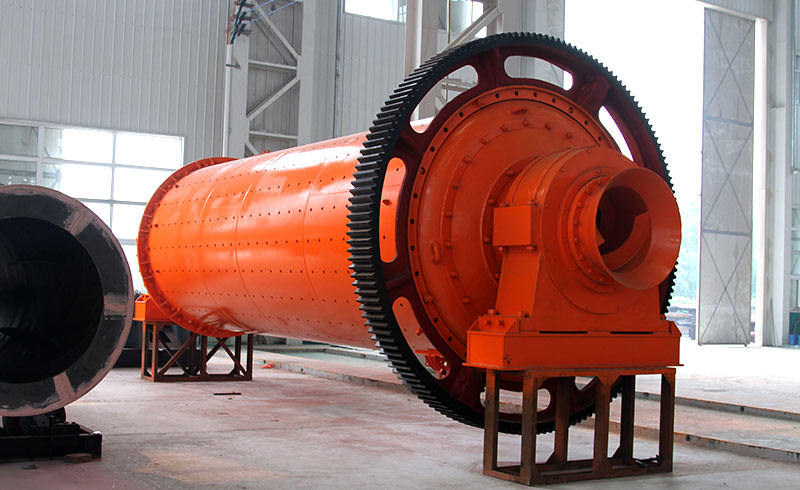

Rod Mill Type Sand Making Machine
Product
presentation

Manufacturer Information

At present, there are many domestic manufacturers of rod sand making machines, but in terms of the strength, technology, scale, and service of the manufacturers, the Hongxing Machinery is even better. The Hongxing Machinery has Walter Machines, Zhongde Heavy Machinery, Fote Heavy Machinery, etc., several branch companies, with large production scale and exquisite talent team. Hongxing has always regarded "customer first, more excellence" as the service concept, and strive to create an efficient, low-cost, high-quality machine for users.

Technical data

  • Rod Mill Type Sand Making Machine
Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
  • Rod Mill Type Sand Making Machine
Model Feeding
size
(mm)
Processing
capacity
(t/h)
MBS0918 ≤25 0.62-3.2
MBS0924 ≤25 0.81-4.3
MBS1224 ≤25 1.1-4.9
MBS1530 ≤25 2.4-7.5
MBS1830 ≤25 4.8-11.6
MBS2130 ≤25 14-35
MBS2136 ≤25 19-43
MBS2430 ≤50 25-65
MBS2736 ≤50 32-86
MBS2740 ≤50 32-92
MBS3245 ≤50 64-180

For customization, please contact us.

Applicable materials:

basalt, quartz sand, granite, river pebble, quartz stone, limestone, etc.
