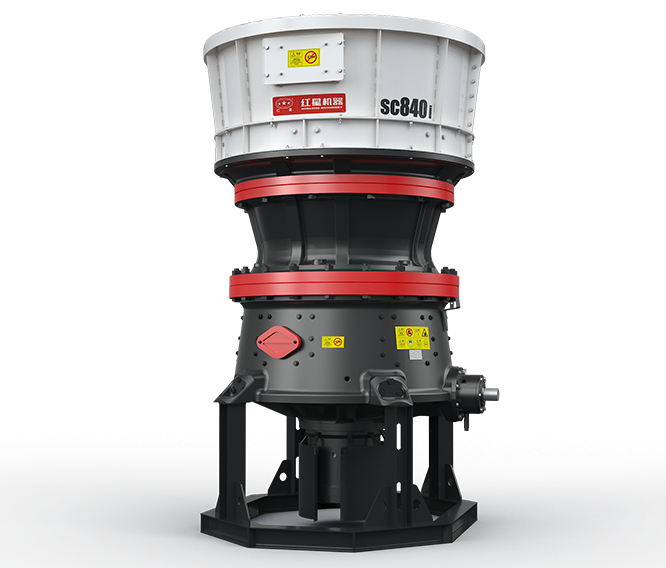

SC/H800i Series Cone Crusher

Product Introduction

SC/H800i series single cylinder cone crusher of Hongxing Group is a new generation product comprehensively upgraded on the basis of SC series cone crusher according to market demand and focusing on the forefront of the times. While inheriting many advantages of SC series, this series crusher adopts a cavity design with larger eccentricity, higher rotating speed and larger crushing ratio, so as to improve throughput and yield and reduce equipment energy consumption. The equipment incorporates the most advanced Internet concept: all-weather connectivity to the Internet of Things platform, effectively improving productivity, predicting performance, and maximizing the uptime of the equipment.

Working Principle

When the single-cylinder cone crusher is working, the motor drives the small gear of the crusher, the small gear drives the large gear, and the large gear assembly drives the eccentric sleeve assembly and the main shaft assembly to revolve in the copper bushing with the theoretical vertical line as the center. The main shaft assembly can rotate in the eccentric copper sleeve with the center line of the main shaft. When the material is added to the crushing chamber, the main shaft assembly slowly rotates in the eccentric copper sleeve under the resistance of the material. The running track of the inner cone seems to swing back and forth in the crushing chamber while rotating slowly. The material is squeezed and crushed by the swinging inner cone, and the crushed material is discharged from the discharge port.
