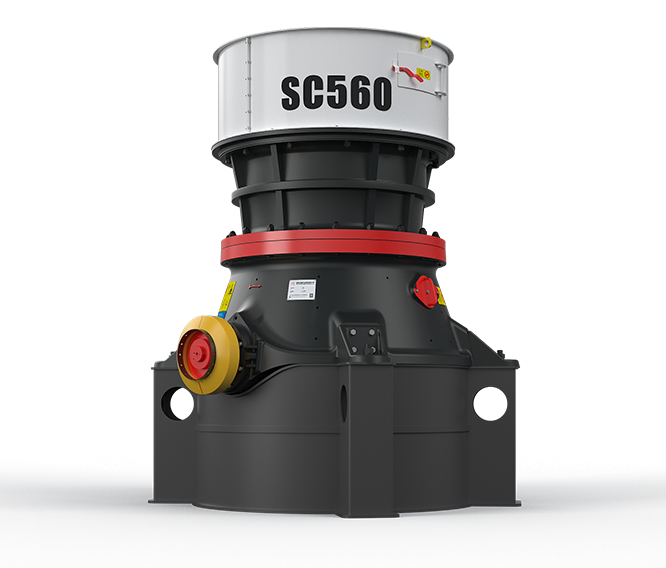

SC Series Single Cylinder Hydraulic Cone Crushers

Product Introduction

SC series cone crusher is developed on the basis of absorbing the world's most advanced technology and integrating the company's many years of design experience. It integrates mechanical, hydraulic, electrical and intelligent control and remote control. It has the advantages of high efficiency, good grain shape, hydraulic adjustment, remote automatic control, choice of multiple crushing cavity types, and adjustment of eccentricity without changing any parts.

SSC series cone crusher can be used as the second-stage crushing equipment to match with jaw crusher or gyratory crusher, or as the third-stage or fourth-stage crushing equipment, which can meet most production needs of users.

Working Principle

When the single-cylinder cone crusher is working, the motor drives the small gear of the crusher, the small gear drives the large gear, and the large gear assembly drives the eccentric sleeve assembly and the main shaft assembly to revolve in the copper bushing with the theoretical vertical line as the center. The main shaft assembly can rotate in the eccentric copper sleeve with the center line of the main shaft. When the material is added to the crushing chamber, the main shaft assembly slowly rotates in the eccentric copper sleeve under the resistance of the material. The running track of the inner cone seems to swing back and forth in the crushing chamber while rotating slowly. The material is squeezed and crushed by the swinging inner cone, and the crushed material is discharged from the discharge port.
