Spiral Sand Washing and Recycling Machine

Spiral Sand Washing and Recycling Machine

Feeding size: ≤10mm

  • Sand Production: 20-240t/h
  • Screw Diameter:765-1115mm

40 years of senior mining machinery solutions”

Email us ( ) , we will reply to you within 24 hours. Get a quote

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

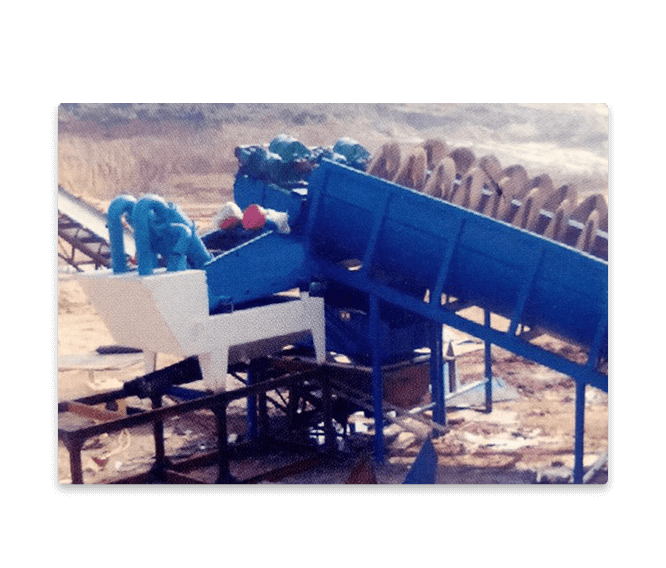

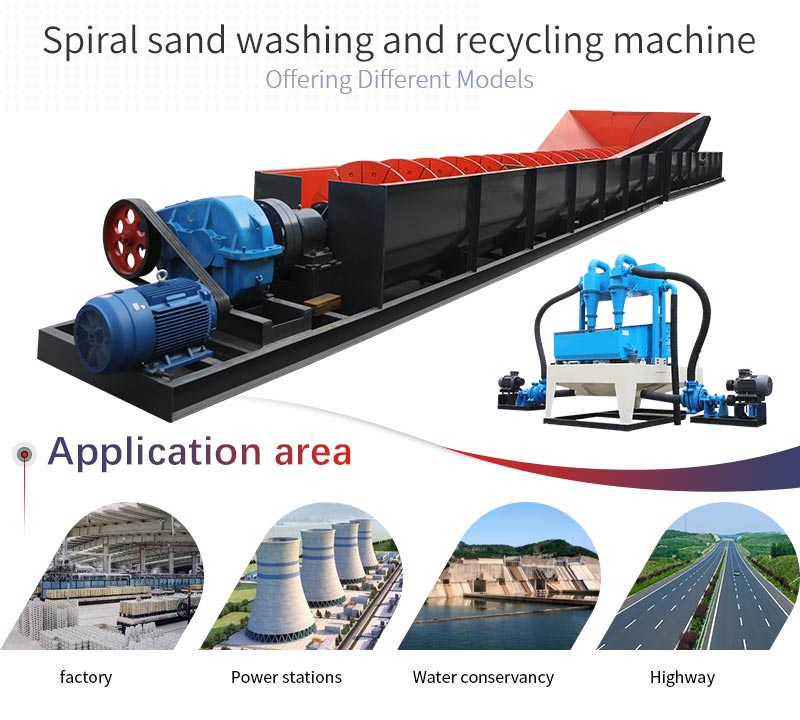

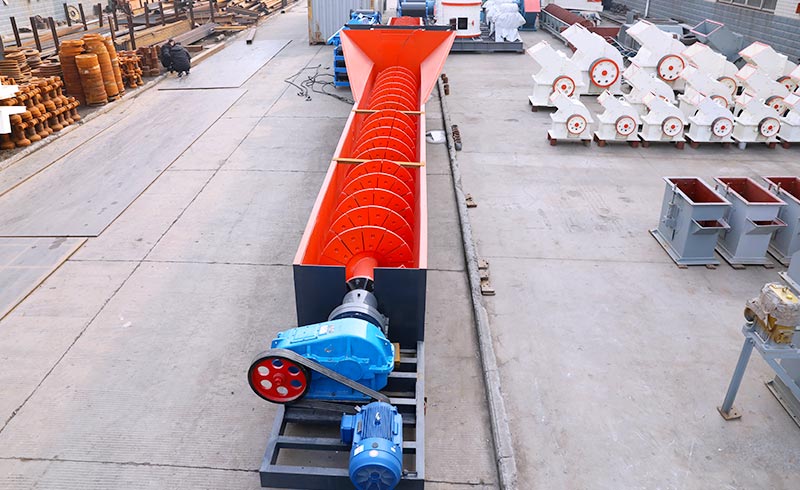

Spiral Sand Washing and Recycling Machine combines the technology of sand washing , fine sand recycling and dehydration. It has the future of small occupation area, clean final products, less fine sand lose, high capacity, long life and less maintenance cost etc, it is the new generation for the traditional sand washer.


Technical data

  • Spiral Sand Washing and Recycling Machine
Model Screw diameter
the sink length
screen plate size
Feeding size
Sand production
standard total power
LX765-15-55 765 6500 1500x3000 ≤10 20-60 250x2 39
LX915-15-65 915 7650 1500x3000 ≤10 30-100 300x2 47
2LX915-24-100 915 7650 2400x4500 ≤10 60-200 250x4 81
LX1115-18-75 1115 8650 1800x4500 ≤10 40-120 350x2 60
2LX1115-30-120 1115 8650 3000x4800 ≤10 80-240 300x4 120
  • Spiral Sand Washing and Recycling Machine
Model Sand production
standard total power
LX765-15-55 20-60 39
LX915-15-65 30-100 47
2LX915-24-100 60-200 81
LX1115-18-75 40-120 60
2LX1115-30-120 80-240 120

For customization, please contact us.
