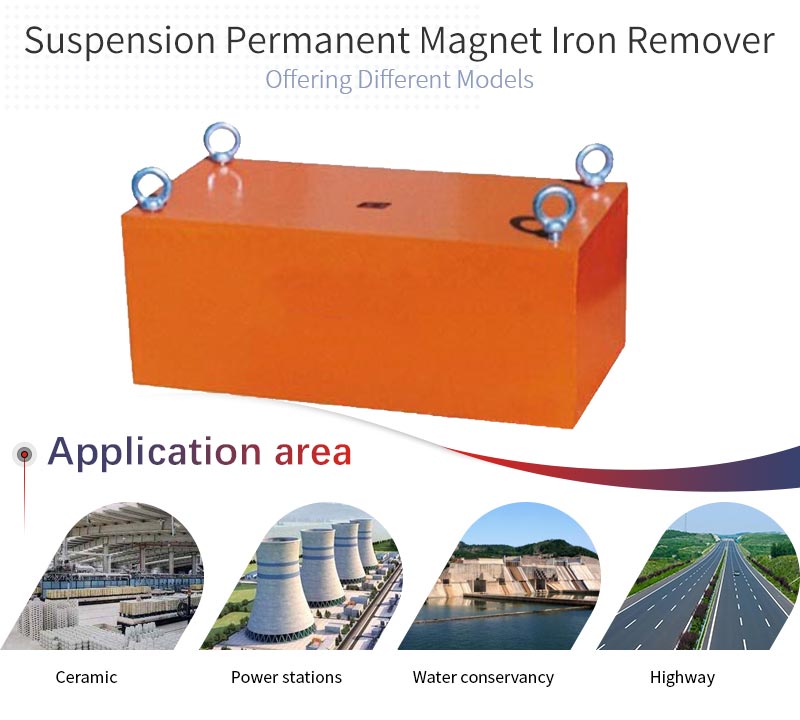

Scope of Application: It is suitable for belt conveyor, vibrating conveyor, electromagnetic vibrating feeder, and iron removal in non-magnetic materials on the chute.
“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

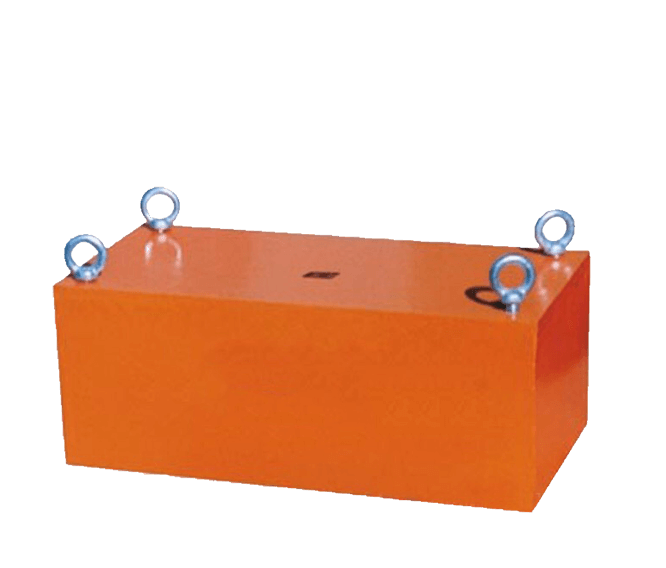

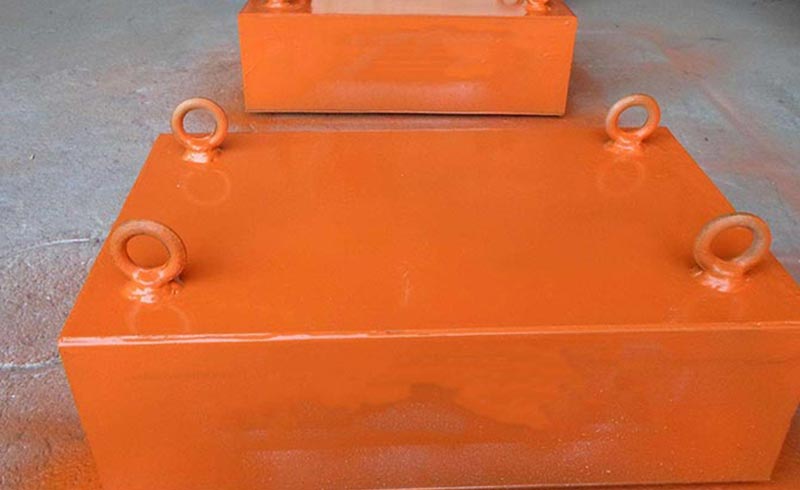

The RCYB series suspension type permanent magnet iron remover adopts a composite magnetic system composed of special permanent magnets with high coercivity and high remanence inside.It has the advantages of maintenance free,strong magnetic force,long service life,simple installation,convenient use,and reliable operation.It is suitable for removing iron from non-magnetic materials on belt conveyors,vibration conveyors,electromagnetic vibrating feeders,and feeding chutes.All technical indicators of this product comply with the JB/T 8711-2012 standard.
1, The composite magnetic system is composed of a high-coercive force and a high-remanence permanent magnet NdFeB. The magnetic field is strong and the suction force is large.
2, Easy to install, easy to use, reliable and maintenance free.
3, All technical indicators are in line with JB/T8711-2006
| Model | Belt Width (mm) |
Ralted Hoisting Height (h=mm) |
Material Field (≤mm) |
Magnetic Field (≥mt) |
Belt Speed (≤m/s) |
Weight(kg) | Dimension (mm) |
||
| L | D | H | |||||||
| RCYB-4 | 400 | 130 | 80 | 63 | 2.5 | 115 | 400 | 300 | 210 |
| RCYB-5 | 500 | 150 | 100 | 63 | 180 | 500 | 400 | 230 | |
| RCYB-6 | 600/650 | 180 | 130 | 63 | 300 | 600 | 500 | 250 | |
| RCYB-6.5 | 650 | 200 | 150 | 65 | 450 | 650 | 600 | 250 | |
| RCYB-8 | 800 | 250 | 200 | 70 | 580 | 800 | 700 | 250 | |
| RCYB-10 | 1000 | 300 | 250 | 70 | 880 | 1000 | 800 | 270 | |
| RCYB-12 | 1200 | 350 | 300 | 70 | 1100 | 1200 | 1000 | 270 | |
| RCYB-14 | 1400 | 400 | 350 | 70 | 1700 | 1400 | 1300 | 270 | |
| RCYB-16 | 1600 | 450 | 400 | 70 | 2200 | 1600 | 1500 | 270 | |
| Model | Material Field (≤mm) |
Magnetic Field (≥mt) |
| RCYB-4 | 80 | 63 |
| RCYB-5 | 100 | 63 |
| RCYB-6 | 130 | 63 |
| RCYB-6.5 | 150 | 65 |
| RCYB-8 | 200 | 70 |
| RCYB-10 | 250 | 70 |
| RCYB-12 | 300 | 70 |
| RCYB-14 | 350 | 70 |
| RCYB-16 | 400 | 70 |
For customization, please contact us.
