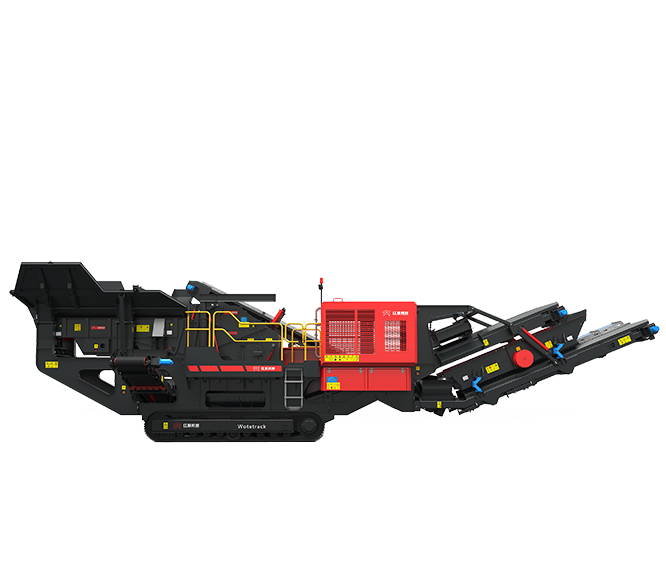

Wotetrack cone crusher station

Wotetrack cone crusher station

Application fields: Wotetrack cone crusher station is widely applied in metallurgical, construction, road building, chemical and phosphatic industry.

  • Feeding Size: 75-450mm
  • Minimum discharge opening size: 8-51mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Wotetrack cone crusher station Features:

  1. 1. Incorporated design.

  2. 2. Truck mounted.

  3. 3. Quick road transportation.

  4. 4. With support legs on truck, quick to set-up.

  5. 5. Maneuverability.

Product
presentation

The Performance Characteristics of Wotetrack Cone Crusher Station

1. The crushed materials are of equal size,thus reducing circulating load.

2. Large and medium-sized crushers adopt hydraulic chamber-cleaning systems, which will help reduce the down time.

3. Cone crushers with different chambers are available, to meet our customers' requirements.

Technical data

  • Wotetrack cone crusher station
Model WT160SC WT250SC WT300HPM WT400HPM
Dimensions of Transmission Devices Length 16800mm 19000mm 19000mm 19500mm
Width 3500mm 3600mm 3900mm 3900mm
Height 3700mm 3800mm 3800mm 3800mm
Weight 50t 60t 55t 65t
Belt Conveyor Hopper Volume 3m³ 3m³ 3m³ 3m³
Loading Height 2600m 2600m 2600m 2800m
Loading Width 1900mm 1900mm 1900mm 1900mm
Dimensions(Width×Length) 1000×6300mm 1000×6300mm 1000×6300mm 1200×6500mm
Crusher Model SC160 SC250 HP300 HP400
Inlet Dimensions 75-360mm 75-450mm 60-200mm 68-280mm
Max.Feeding Size 360mm 450mm 200mm 280mm
Min. Discharging Size 8-25mm 8-35mm 8-45mm 8-51mm
Main Belt Conveyor Dimensions(Width×Length) 1000×9000mm 1000×10000mm 1000×10000mm 1000×11000mm
Dumping Height 3100mm 3490mm 3490mm 3690mm
Secondary Screen Dumping Height 4200mm 4200mm 4400mm 4400mm
Model HX1536 HX1536 HX1536 HX1536
Sieve Dimensions 1500×3600mm 1500×3600mm 1500×3600mm 1500×3600mm
Belt Conveyors at the Bottom Dimensions(Width×Length) 1000×5600mm 1000×5600mm 1000×5600mm 1000×6500mm
Dumping Height 3020mm 3020mm 3020mm 3300mm
Belt Conveyors to the Sieve Dimensions(Width×Length) 650×2100mm 650×2100mm 650×2100mm 650×2100mm
Dumping Height 1370mm 1370mm 1370mm 1370mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) 650×10000mm 650×10000mm 650×11000mm 650×11000mm
Dumping Height 4200mm 4200mm 4400mm 4400mm
Diesel Engine Power 96kw 132kw 106kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 207.12kw 297.12kw 267.12kw 362.12kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
  • Wotetrack cone crusher station

Model WT160SC and WT250SC

Model WT160SC WT250SC
Dimensions of Transmission Devices Length 16800mm 19500mm
Width 3500mm 3600mm
Height 3700mm 3800mm
Weight 50t 60t
Belt Conveyor Hopper Volume 3m³ 3m³
Loading Height 2600m 2600m
Loading Width 1900mm 1900mm
Dimensions(Width×Length) 1000×6300mm 1000×6300mm
Crusher Model SC160 HP400
Inlet Dimensions 75-360mm 75-450mm
Max.Feeding Size 360mm 450mm
Min. Discharging Size 8-25mm 8-35mm
Main Belt Conveyor Dimensions(Width×Length) 1000×9000mm 1000×11000mm
Dumping Height 3100mm 3490mm
Secondary Screen Dumping Height 4200mm 4400mm
Model HX1536 HX1536
Sieve Dimensions 1500×3600mm 1500×3600mm
Belt Conveyors at the Bottom Dimensions(Width×Length) 1000×5600mm 1000×6500mm
Dumping Height 3020mm 3020mm
Belt Conveyors to the Sieve Dimensions(Width×Length) 650×2100mm 650×2100mm
Dumping Height 1370mm 1370mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) 650×10000mm 650×10000mm
Dumping Height 4200mm 4200mm
Diesel Engine Power 96kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 207.12kw 362.12kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model WT300HPM and WT400HPM

Model WT300HPM WT400HPM
Dimensions of Transmission Devices Length 19000mm 19500mm
Width 3900mm 3900mm
Height 3800mm 3800mm
Weight 55t 65t
Belt Conveyor Hopper Volume 3m³ 3m³
Loading Height 2600m 2800m
Loading Width 1900mm 1900mm
Dimensions(Width×Length) 1000×6300mm 1200×6500mm
Crusher Model HP300 HP400
Inlet Dimensions 60-200mm 68-280mm
Max.Feeding Size 200mm 280mm
Min. Discharging Size 8-45mm 8-51mm
Main Belt Conveyor Dimensions(Width×Length) 1000×10000mm 1000×11000mm
Dumping Height 3490mm 3690mm
Secondary Screen Dumping Height 4400mm 4400mm
Model HX1536 HX1536
Sieve Dimensions 1500×3600mm 1500×3600mm
Belt Conveyors at the Bottom Dimensions(Width×Length) 1000×5600mm 1000×6500mm
Dumping Height 3020mm 3300mm
Belt Conveyors to the Sieve Dimensions(Width×Length) 650×2100mm 650×2100mm
Dumping Height 1370mm 1370mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) 650×11000mm 650×11000mm
Dumping Height 4400mm 4400mm
Diesel Engine Power 106kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 267.12kw 362.12kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

For customization, please contact us.

Applied materials:

Wotetrack cone crusher station is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, gritstone, etc.
