Application fields: mining, stone mining, highway (railway) construction, urban construction waste treatment, etc.
Made in China
Two weeks delivery, custom cycle, please consult

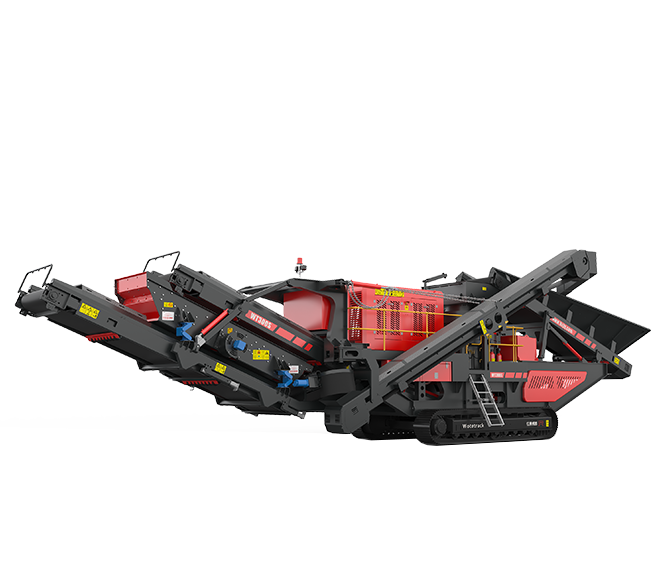

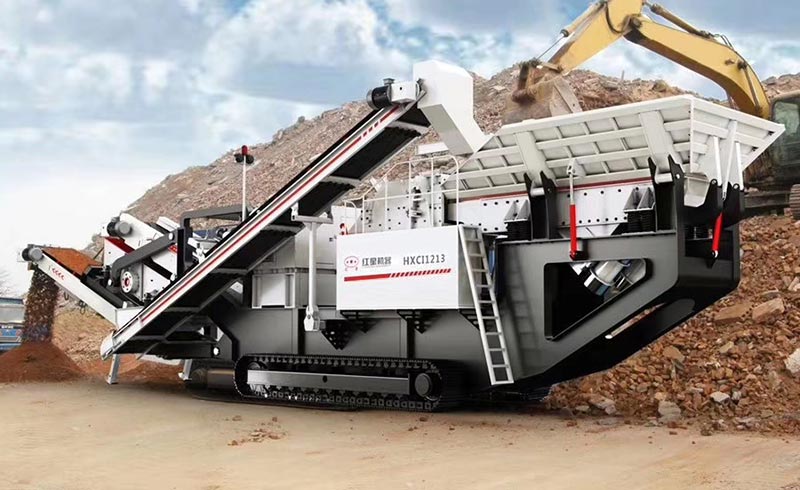

Crawler type impact crusher station are renown for their versatility and capabilities in the reduction and sizing of soft to medium natural granite and limestone and non-abrasive materials as well as recycling construction demolition waste

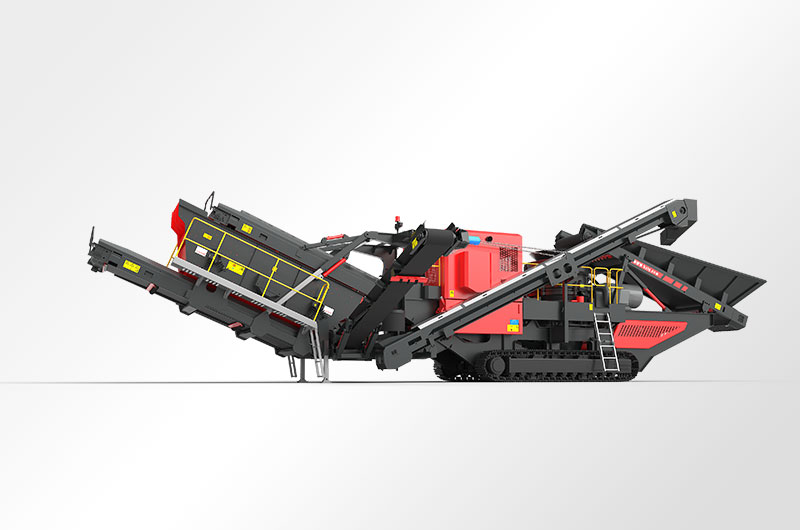

The material is evenly conveyed into the crusher through the feeder, and after the primary crushing of the impact crusher, the closed circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material, and the finished products are output by the conveyor for continuous crushing operation. The mobile impact crusher can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of the material directly, and it can be used with other crushing equipments, and the operation is convenient and flexible.
1. Closed or open circuit processes available
2. Single unit for primary and secondary applications
3. Processing of medium-hard stone like limestone
4. All rock-based demolition materials : bricks, concrete, asphalt
The Advantage and Benefits of Wotetrack Mobile Impact Crusher: Wotetrack mobile impact crusher plant with the advantages of free foundation, easily move to different work sites, closes to crushing site, low transportation cost.
| Model | WT110 | WT110S | WT1213 | WT1213S | WT1315 | |
| Dimensions of Transmission Devices | Length | 14000mm | 16000mm | 15500mm | 19000mm | 17000mm |
| Width | 3000mm | 3200mm | 3200mm | 3600mm | 3200mm | |
| Height | 3600mm | 3600mm | 3800mm | 3800mm | 3800mm | |
| Weight | 40t | 45t | 53t | 60t | 65t | |
| Feeder | Hopper Volume | 3m³ | 3m³ | 5m³ | 5m³ | 5m³ |
| Loading Height | 3900mm | 4000mm | 3900mm | 4100mm | 4000mm | |
| Primary Screen | Power | 5.2kw | 5.2kw | 6.12kw | 6.12kw | 6.12kw |
| Sieve Dimensions | 1040×924mm | 1040×924mm | 1140×924mm | 1140×924mm | 1240×930mm | |
| Crusher | Model | CI1110M | CI1110M | CI1213M | CI1213M | CI1315M |
| Inlet Dimensions | 1020×860mm | 1020×860mm | 1320×900mm | 1320×900mm | 1540×900mm | |
| Max.Feeding Size | 400mm | 400mm | 500mm | 500mm | 600mm | |
| The Feeder at the Bottom | Hopper Volume | 0.8m³ | 0.8m³ | 1m³ | 1m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | 5.2kw | 5.2kw | 6.12kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | 2200mm | 2200mm | 2400mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×8500mm | 1000×8500mm | 1000×9900mm | 1000×9900mm | 1200×11000mm |
| Dumping Height | 3300mm | 3300mm | 3500mm | 3500mm | 3800mm | |
| Secondary Screen | Power | ○ | 6.12kw | ○ | 6.12kw | ○ |
| Sieve Dimensions | ○ | 1500×3600 | ○ | 1500×4200 | ○ | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ | 1000×5800mm | ○ | 1000×6200mm | ○ |
| Dumping Height | ○ | 2900mm | ○ | 3000mm | ○ | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ | 650×2500mm | ○ | 650×2800mm | ○ |
| Dumping Height | ○ | 1400mm | ○ | 1400mm | ○ | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ | 500×8000mm | ○ | 500×9200mm | ○ |
| Dumping Height | ○ | 4200mm | ○ | 4500mm | ○ | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 106kw | 106kw | 132kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 253kw | 274kw | 304kw | 324.4kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT110 and WT110S
| Model | WT110 | WT110S | |
| Dimensions of Transmission Devices | Length | 14000mm | 17000mm |
| Width | 3000mm | 3200mm | |
| Height | 3600mm | 3600mm | |
| Weight | 40t | 45t | |
| Feeder | Hopper Volume | 3m³ | 5m³ |
| Loading Height | 3900mm | 4000mm | |
| Primary Screen | Power | 5.2kw | 6.12kw |
| Sieve Dimensions | 1040×924mm | 1040×924mm | |
| Crusher | Model | CI1110M | CI1315M |
| Inlet Dimensions | 1020×860mm | 1020×860mm | |
| Max.Feeding Size | 400mm | 400mm | |
| The Feeder at the Bottom | Hopper Volume | 0.8m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×8500mm | 1200×11000mm |
| Dumping Height | 3300mm | 3300mm | |
| Secondary Screen | Power | ○ | ○ |
| Sieve Dimensions | ○ | 1500×3600 | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 2900mm | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 1400mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 4200mm | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 253kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT1213 and WT1213S
| Model | WT1213 | WT1213S | |
| Dimensions of Transmission Devices | Length | 15500mm | 17000mm |
| Width | 3200mm | 3600mm | |
| Height | 3800mm | 3800mm | |
| Weight | 53t | 60t | |
| Feeder | Hopper Volume | 5m³ | 5m³ |
| Loading Height | 3900mm | 4100mm | |
| Primary Screen | Power | 6.12kw | 6.12kw |
| Sieve Dimensions | 1140×924mm | 1140×924mm | |
| Crusher | Model | CI1213M | CI1315M |
| Inlet Dimensions | 1320×900mm | 1320×900mm | |
| Max.Feeding Size | 500mm | 500mm | |
| The Feeder at the Bottom | Hopper Volume | 1m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×9900mm | 1200×11000mm |
| Dumping Height | 3500mm | 3500mm | |
| Secondary Screen | Power | ○ | ○ |
| Sieve Dimensions | ○ | 1500×4200 | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 3000mm | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 1400mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 4500mm | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 304kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT1315
| Model | WT1315 | |
| Dimensions of Transmission Devices | Length | 17000mm |
| Width | 3200mm | |
| Height | 3800mm | |
| Weight | 65t | |
| Feeder | Hopper Volume | 5m³ |
| Loading Height | 4000mm | |
| Primary Screen | Power | 6.12kw |
| Sieve Dimensions | 1240×930mm | |
| Crusher | Model | CI1315M |
| Inlet Dimensions | 1540×900mm | |
| Max.Feeding Size | 600mm | |
| The Feeder at the Bottom | Hopper Volume | 1.5m³ |
| Power | 6.12kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm |
| Dumping Height | 2400mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1200×11000mm |
| Dumping Height | 3800mm | |
| Secondary Screen | Power | ○ |
| Sieve Dimensions | ○ | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ |
| Dumping Height | ○ | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ |
| Dumping Height | ○ | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ |
| Dumping Height | ○ | |
| Iron Remover | Model | RCYQ-10 |
| Diesel Engine | Power | 132kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | |
For customization, please contact us.
