Wotetrack mobile screening station

Wotetrack mobile screening station

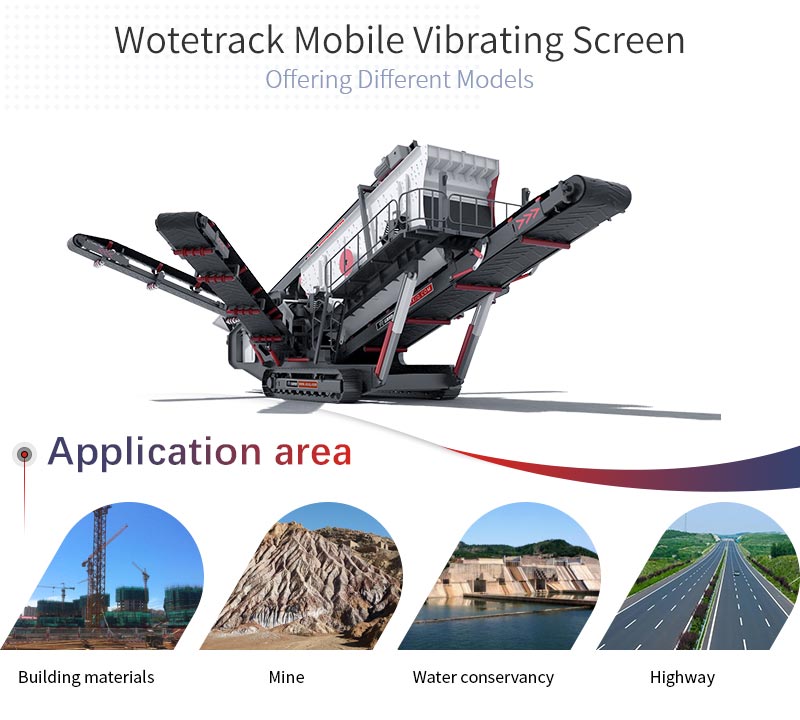

Application fields: which can be widely used in the following fields such as aggregate field, concrete mixing plant, dry mortar plant, desulfurization, quartz sand, etc

  • Maximum weight: 35t
  • Maximum engine power: 96kw

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

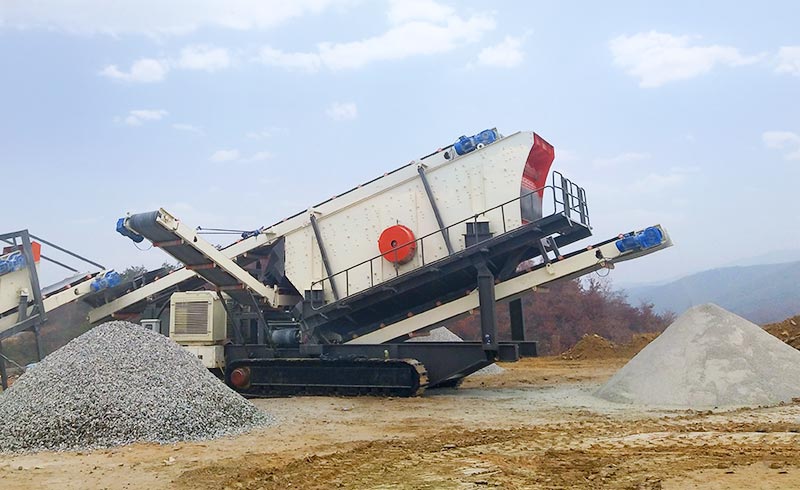

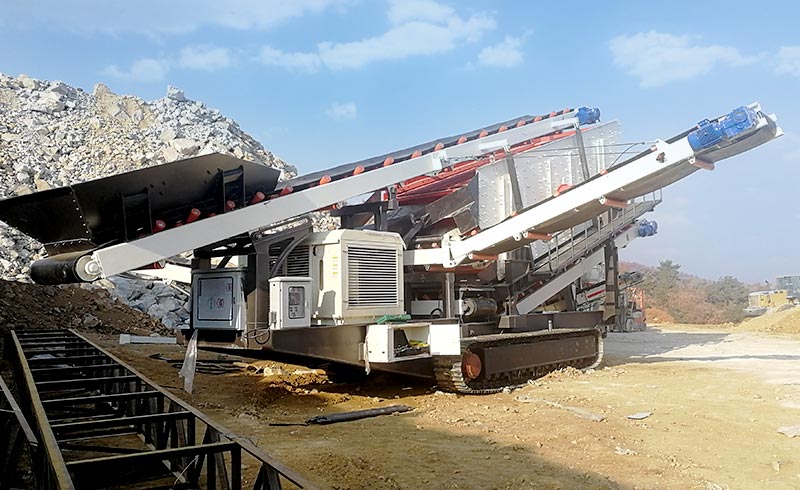

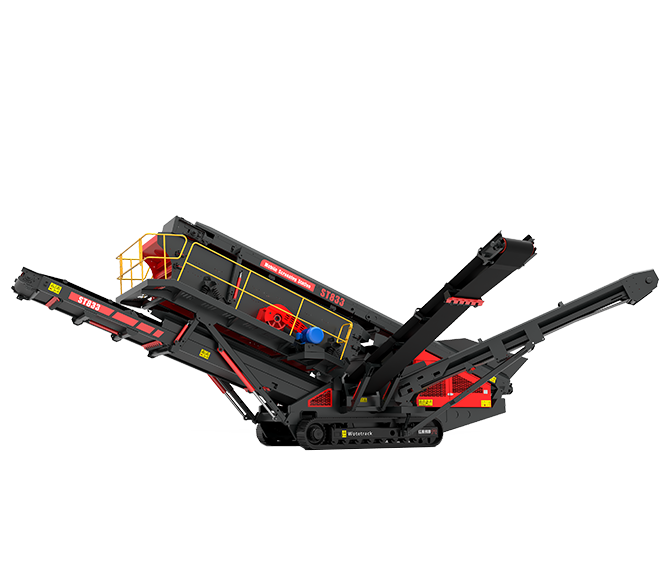

The crawler type wotetrack mobile screening station, also called circular vibrating screen moves on a circular motion. It is a multi-layer and high efficiency vibrating screen. Advantages are: stable structure, strong exciting force, high efficiency, little noise pollution, handy maintenance and safety.

Product
presentation

Technical data

  • Wotetrack mobile screening station
Model ST673 ST993 ST1303
Dimensions of Transmission Devices Length 11000mm 12500mm 12500mm
Width 3800mm 4000mm 4000mm
Height 3800mm 3900mm 3900mm
Weight 28t 33t 38t
Feeding Belt Conveyor Dimensions(Width×Length) 1000×10000mm 1000×10000mm 1000×13000mm
Loading Height 2560mm 2680mm 2700mm
Vibrating Screen Model 3HX1545 3HX1855 3HX2160
Sieving Layers 3 3 3
Belt Conveyor Dimensions(Width×Length) 1000×7400mm 1000×7500mm 1000×7500mm
Discharging Height 3380mm 3460mm 3460mm
Belt Conveyor for Coarse Material Dimensions(Width×Length) 500×5600mm 650×5800mm 650×5800mm
Discharging Height 3430mm 3570mm 3570mm
Belt Conveyor for Medium-Sized Material Dimensions(Width×Length) 500×5300mm 650×5400mm 650×5400mm
Discharging Height 3150mm 3250mm 3250mm
Belt Conveyor for Fine Material Dimensions(Width×Length) 500×5600mm 650×5800mm 650×5800mm
Discharging Height 3030mm 3080mm 3080mm
Transferring Belt Conveyors Dimensions(Width×Length) 500×2000mm 650×2000mm 650×2000mm
Discharging Height 2130mm 2130mm 2130mm
Diesel Engine Power 75kw 75kw 96kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 54kw 57.5kw 65.5kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
  • Wotetrack mobile screening station

Model ST673 and ST993

Model ST673 ST993
Dimensions of Transmission Devices Length 11000mm 12500mm
Width 3800mm 4000mm
Height 3800mm 3900mm
Weight 28t 33t
Feeding Belt Conveyor Dimensions(Width×Length) 1000×10000mm 1000×13000mm
Loading Height 2560mm 2680mm
Vibrating Screen Model 3HX1545 3HX2160
Sieving Layers 3 3
Belt Conveyor Dimensions(Width×Length) 1000×7400mm 1000×7500mm
Discharging Height 3380mm 3460mm
Belt Conveyor for Coarse Material Dimensions(Width×Length) 500×5600mm 650×5800mm
Discharging Height 3430mm 3570mm
Belt Conveyor for Medium-Sized Material Dimensions(Width×Length) 500×5300mm 650×5400mm
Discharging Height 3150mm 3250mm
Belt Conveyor for Fine Material Dimensions(Width×Length) 500×5600mm 650×5800mm
Discharging Height 3030mm 3080mm
Transferring Belt Conveyors Dimensions(Width×Length) 500×2000mm 650×2000mm
Discharging Height 2130mm 2130mm
Diesel Engine Power 75kw 96kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 54kw 65.5kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model ST1303

Model ST1303
Dimensions of Transmission Devices Length 12500mm
Width 4000mm
Height 3900mm
Weight 38t
Feeding Belt Conveyor Dimensions(Width×Length) 1000×13000mm
Loading Height 2700mm
Vibrating Screen Model 3HX2160
Sieving Layers 3
Belt Conveyor Dimensions(Width×Length) 1000×7500mm
Discharging Height 3460mm
Belt Conveyor for Coarse Material Dimensions(Width×Length) 650×5800mm
Discharging Height 3570mm
Belt Conveyor for Medium-Sized Material Dimensions(Width×Length) 650×5400mm
Discharging Height 3250mm
Belt Conveyor for Fine Material Dimensions(Width×Length) 650×5800mm
Discharging Height 3080mm
Transferring Belt Conveyors Dimensions(Width×Length) 650×2000mm
Discharging Height 2130mm
Diesel Engine Power 96kw
Manufacturer Carter Perkins
The Main Machine Power 65.5kw
Ways of Controlling Wired/Wireless (optional)

For customization, please contact us.

Applied materials:

Wotetrack mobile screening station can process those materials such as river gravel, granite, basalt, quartz, iron ore, diabase, limestone, coal gangue
