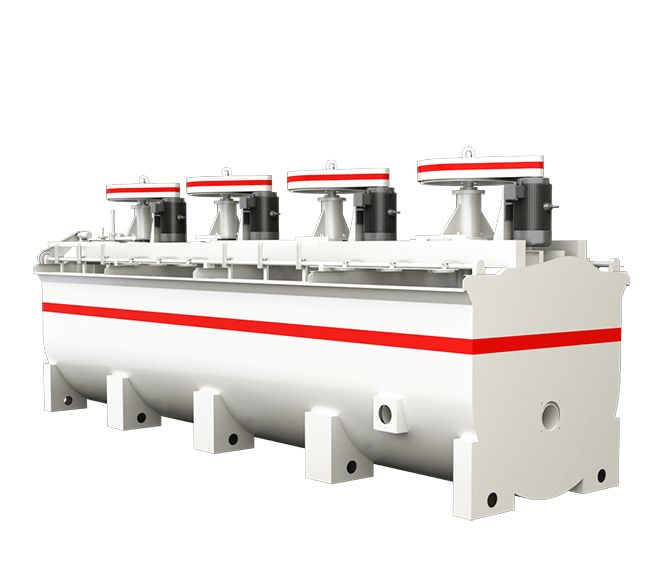

XCF Flotation Machine

XCF Flotation Machine

Processing Capacity: 0.2-38m/min

  • Effective Cubage: 1-38m³
  • Single Effective Weight: 1.2-16.8t

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

Flotation machine is used for extracting of metals like gold, argent, iron, lead, zinc, molybdenum, nickel and aluminum. It is also suitable for extracting of ferrous metal metals and non--metals

When flotation machine is working, with the rotation of the impeller, groove pulp from all around and via the bottom of groove is inhaled into between the impeller blades by the impeller bottom, at the same time, by the blower for the low pressure air by hollow shaft and impeller air distributor also enter it. After pulp mixing air fully, it is pusher from the upper part of the impeller to the oblique, and the stator stabilizes the flow and directs it into the whole trough. Bubbles rise to the foam stability region, after concentration process, the foam from the overflow weir gravity overflow then into the bubble bath, and part of the pulp flow to the lower part of impeller, then through the impeller stirring, to mix mineralization bubble formation, the rest of the pulp flow to the next trough, until eventually residue.

XCF Flotation Machine Features:

  1. Low Operating Cost: Compared with conventional mechanical stirring type flotation machine, it can save 1/3--1/2 of electricity.

  2. The accuracy of the separation is high, the cleans ash is low: the cleaned coal ash can be reduced by 1-2%, compared with conventional mechanical stirring type flotation machine.

  3. Vulnerable parts are durable: the impeller is always active in the machine, which plays a role in removing material deposit and debris, reducing the phenomenon of damaging parts due to clutter; the impeller of the agitator is made of grinding rubber, which enhances the wear resistance.

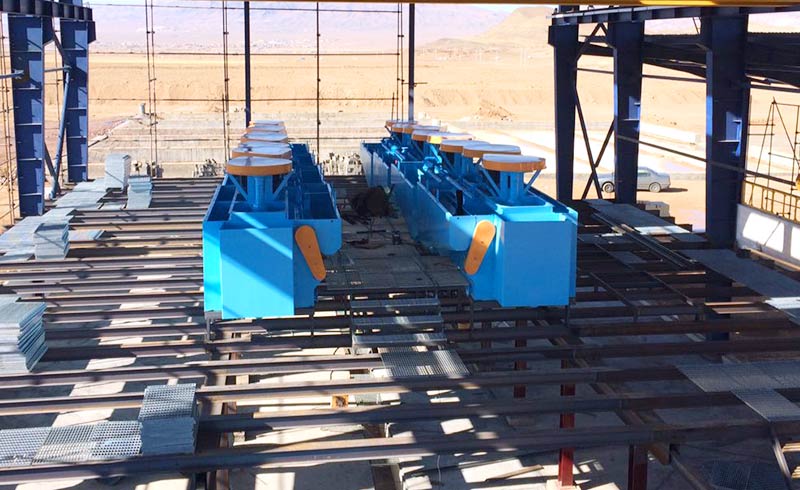

Product
presentation

Technical data

  • XCF Flotation Machine
Model XCF-1 XCF-2 XCF-3 XCF-4 XCF-8 XCF-16 XCF-24 XCF-38
Dimensions Length(mm) 1000 1300 1600 1800 2200 2800 3100 3600
Width(mm) 1000 1300 1600 1800 2200 2800 3100 3600
Height(mm) 1100 1250 1400 1500 1950 2400 10819 3400
Single Effective Weight(t) 1.2 1.7 2.3 2.7 3.9 6.6 8.0 16.8
Effective cubage(m³) 1 2 3 4 8 16 24 38
Production Capacity calculated by slurry volume(m³/min) 0.2—1 0.4—2 0.6—3 1.2—4 3—8 4—16 4—24 10—38
Main shaft motor Model Y132M2-6 Y160M-6 Y160L-6 Y180L-6 Y200L2-6 Y280S-8 Y280S-8 Y280S-6
Power(kw) 5.5 7.5 11 15 22 37 37 45
Impeller Rotate speed(r/min) 960 970 970 970 970 740 740 980
Diameter(mm) 400 460 540 620 720 860 950
Height(mm) 155 175 207 247 321 349
Rotate speed(r/min) 358 331 266 215 185 160 153
Circular velocity(m/s) 7.5 7.5 7.5 7 6.97 7.6 7.6 7.4
loam board motor Model Y90S-4 Y90S-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4
Power(kw) 1.1 1.1 1.5 1.5 1.5 1.5 1.5 1.5
Rotate speed(r/min) 1400 1400 1400 1400 1400 1400 1400 1400
loam board Rotate speed(r/min) 18 18 16 16 16 16 16 16
Diameter(mm) 500 500 580 600 600 700 700 700
Wind pressure of fan (kpa) ≥12.6 ≥14.7 ≥19.8 ≥19.8 ≥21.6 ≥25.5 ≥30.4 ≥34.3
Max. air injection amount(m³/㎡·min) 2 2 2 2 2 2 2 2
  • XCF Flotation Machine
Model Effective
cubage(m³)
Production
Capacity
calculated
by slurry
volume(m³/min)
XCF-1 1 0.2—1
XCF-2 2 0.4—2
XCF-3 3 0.6—3
XCF-4 4 1.2—4
XCF-8 8 3—8
XCF-16 16 4—16
XCF-24 24 4—24
XCF-38 38 10—38

For customization, please contact us.
