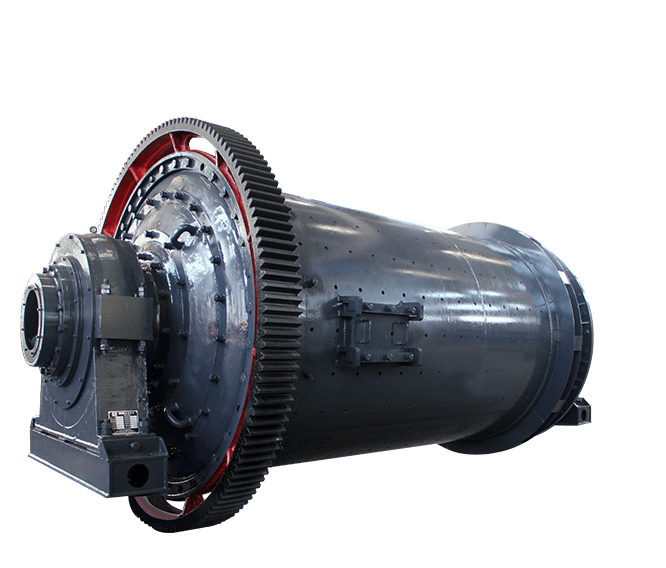

Ceramic Ball Mill

Ceramic Ball Mill

Application fields: Cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal dressings, and glass ceramics.

  • Loading amount: 0.05-15 tons / time
  • Cylinder speed: 13.5-50 (rev / min)

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

Ceramic ball mill is mainly used for mixing and grinding materials, uniformity of product fineness and power saving. It can be dry or wet. The machine can use different lining types according to production needs. The fineness of the grinding operation depends on the grinding time. This machine has an integral or independent structure.

ceramic ball mill applications and applicable materials

Ceramic Ball Mill Features:

  1. 1. Adopt closed system to reduce dust.

  2. 2. High grinding efficiency and good lining quality.

  3. 3. Adopt full hydraulic operation, easy to realize automation and save energy.

  4. 4. The design of the discharge part is flexible and the feed part has large quantity.

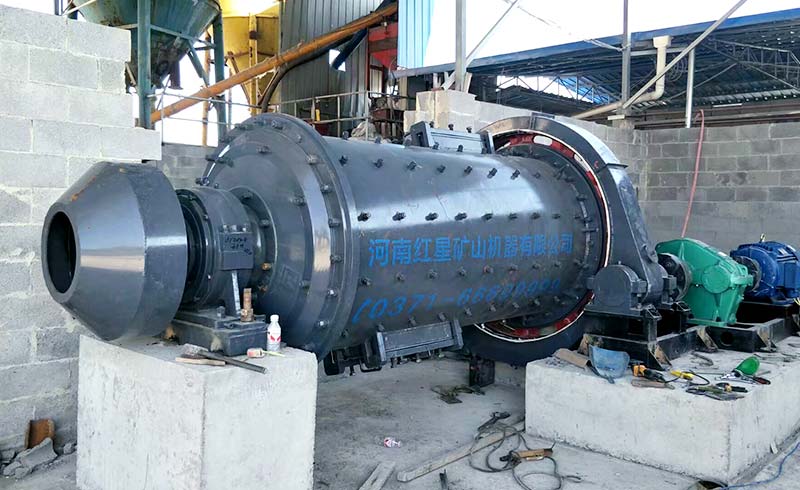

ceramic ball mill production site

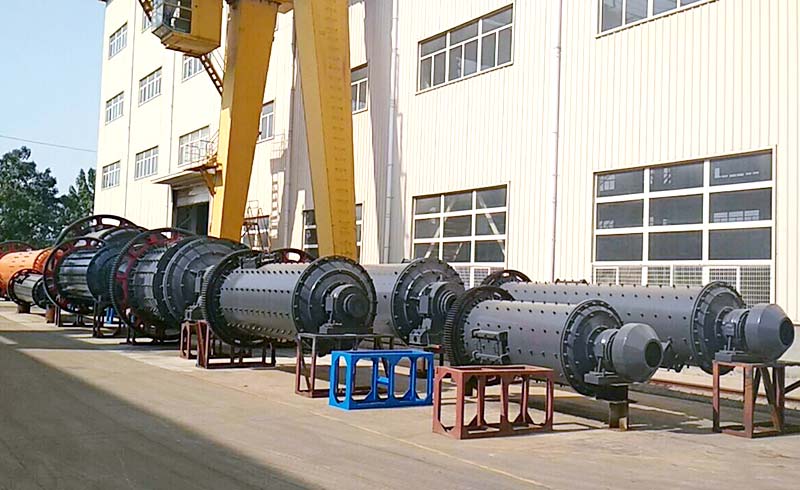

HXJQ produces a wide range of ceramic ball mills
customers visit the factory
Product
presentation

Learn More About Us

The Chinaware ball mill has a wide range of applications, and its final product quality is high and its grade is high. Not only Chinaware ball mill, but other products of our company are exported to all over the world. Customers from different countries and regions will also choose to come to our company for field visits. We also warmly welcome you to visit our company.

Technical data

  • Ceramic Ball Mill
Model Feeding capacity
(t/time)
Shell rotation speed
(r/min)
Reference motor
(kw)
Liner material
600×700 0.05 50 2.2 Chinaware,silicon,rubber or metal(the related motor power varied as per the different liner materials and grinding materials)
800×600 0.075 42 3
900×1200 0.2 38.5 5.5
1300×1500 0.5 33 7.5
1500×1800 1.2 28.5 11
1800×2000 1.5 24 15
2600×2800 5 16.5 37
3000×3800 10 14.5 57.2
3200×4600 15 13.5 75
  • Ceramic Ball Mill
Model Feeding
capacity
(t/time)
Shell
rotation
speed
(r/min)
600×700 0.05 50
800×600 0.075 42
900×1200 0.2 38.5
1300×1500 0.5 33
1500×1800 1.2 28.5
1800×2000 1.5 24
2600×2800 5 16.5
3000×3800 10 14.5
3200×4600 15 13.5

For customization, please contact us.
