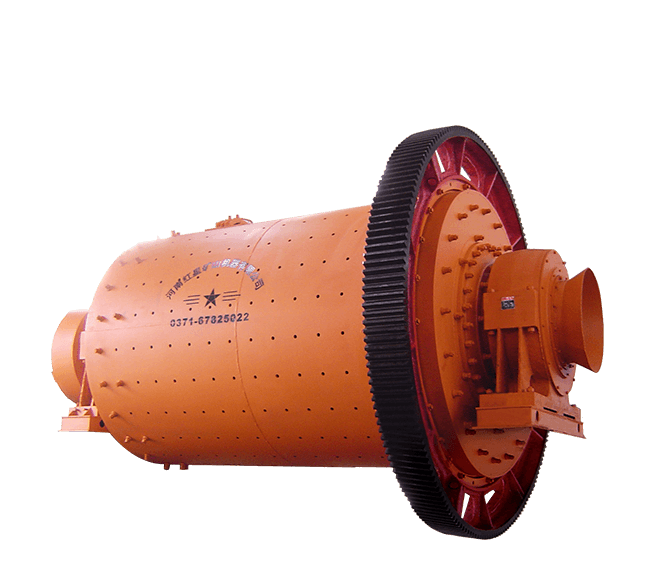

MBS Type Rod Mill

MBS Type Rod Mill

Application areas: metallurgy, chemical, glass and other industries, in recent years, also used in the sand making industry for construction sand.

  • Processing ability: 0.62–180t/h
  • Feeding size: ≤25 mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

Rod Mill is a grinding machine similar to a ball mill. The obvious difference between the two is the grinding medium. Rod mill is named for the medium of the steel rod. The latter's grinding medium is undoubtedly a steel ball. Both of them can be used for grinding various metal ore and non-metal ore. In some cases, rod mill is also called rod type sand making machine, which is mostly used for making sand.

MBS type rod mill application and applicable materials

MBS Type Rod Mill Features:

  1. Energy Saving: During the grinding process, the grinding medium is in line contact with the ore, so it has a certain selective grinding effect. More than 41% energy is saved over previous older devices, and reduce costs.

  2. High Efficiency: The rod mill has a more uniform discharge particle size, less pulverized ore particles and higher yield.

  3. Convenient: The built-in fineness control device can change the particle size of the discharge by simple adjustment. It can also be equipped with a screening device when discharging, which can ensure that neither over-grinding nor unqualified products are mixed into the finished products.

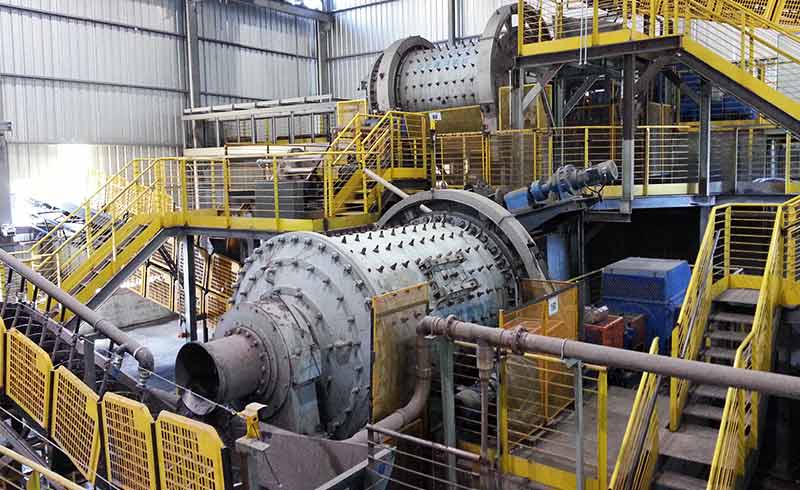

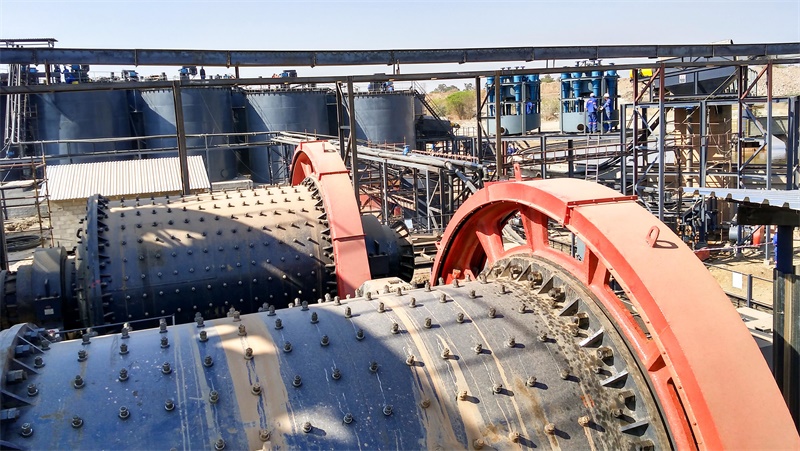

MBS type rod mill production line

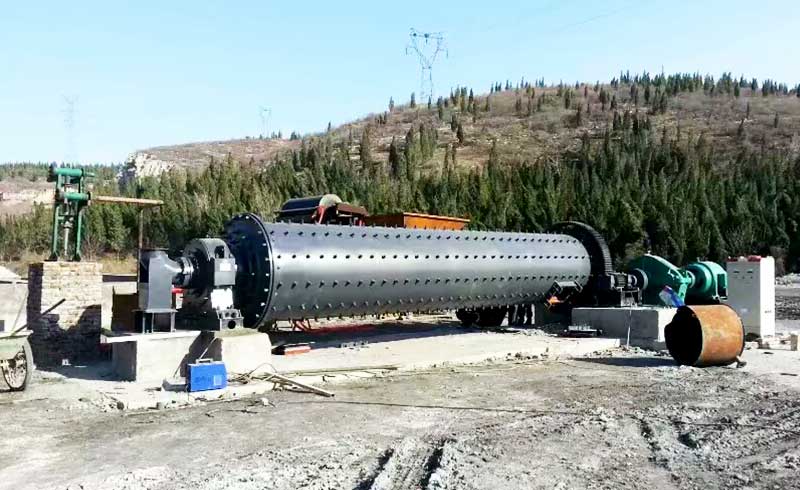

MBS type rod mill production line
customers visit factory
Product
presentation

Application of Rod Mill

1. For re-election or magnetic separation equipment of tungsten-tin ore and other rare metal ores, to prevent damage caused by excessive grinding, a rod mill is often used.

2. When using a two-stage grinding process, if the first part is milled from 20-6mm to 3-1mm, the rod mill is used as the first part of the grinding equipment. More productive capacity and higher efficiency.

3. In some cases, it can be used to replace the short cone crusher for fine crushing. The configuration is simpler and the cost is low, which can simplify the dust removal in the crushing workshop.

Technical data

  • MBS Type Rod Mill
Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
  • MBS Type Rod Mill
Model Feeding
size
(mm)
Processing
capacity
(t/h)
MBS0918 ≤25 0.62-3.2
MBS0924 ≤25 0.81-4.3
MBS1224 ≤25 1.1-4.9
MBS1530 ≤25 2.4-7.5
MBS1830 ≤25 4.8-11.6
MBS2130 ≤25 14-35
MBS2136 ≤25 19-43
MBS2430 ≤50 25-65
MBS2736 ≤50 32-86
MBS2740 ≤50 32-92
MBS3245 ≤50 64-180

For customization, please contact us.
