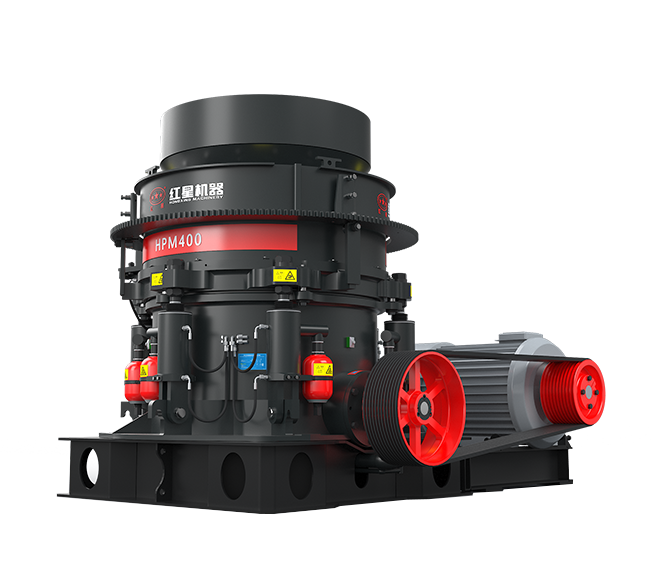

Cone Crushers

Cone Crushers

Application fields: metallurgical industry, building materials industry, road construction industry, chemical industry and silicate industry.

  • Processing capacity: 12-2200t/h
  • Feeding size: 35-300mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

There are 4 different types of cone crushers, including the single-cylinder cone crusher, multi-cylinder hydraulic cone crusher, hydraulic cone crusher, compound cone crusher, also named Symons cone crusher.

The crushing cavity is decided by the crushing purpose of ore. The standard model is suitable for medium crushing process, the medium model is suitable for fine crushing process, and the short head model is suitable for fine crushing process.

Cone crushers are widely used in the secondary, fine and ultra-fine crushing processes, researched and developed by adopting the world's most advanced crushing technology, integrating mechanics, hydraulics, electric, intelligent control and other technologies together.

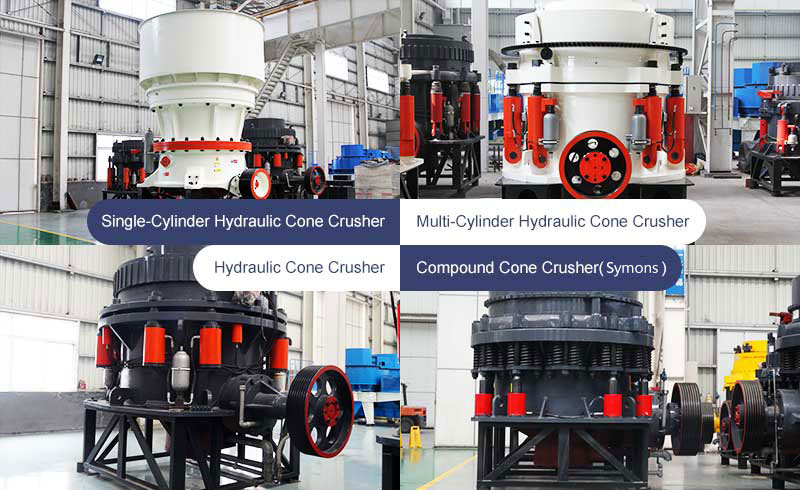

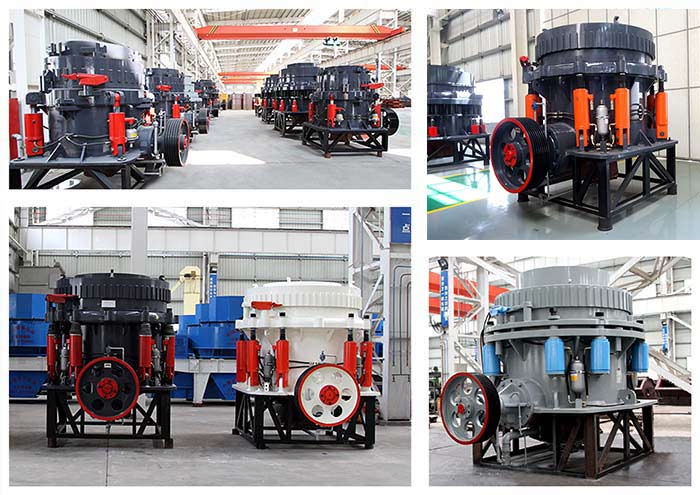

there are 4 different types of cone crushers

Cone Crushers Features:

  1. 1. Large Production Capacity and High Crushing Efficiency

  2. 2. Laminated Crushing Cavity, Uniform-sized, and Cubic Product, Low Energy Consumption.

  3. 3. A Variety of Cavity Types to Meet Various Demands in Granularity Types.

  4. 4. Simple Structure, Easy to Maintain, Low Running Cost.

  5. 5. Fully Automatic Control to Ensure Safe Operation of Equipment.

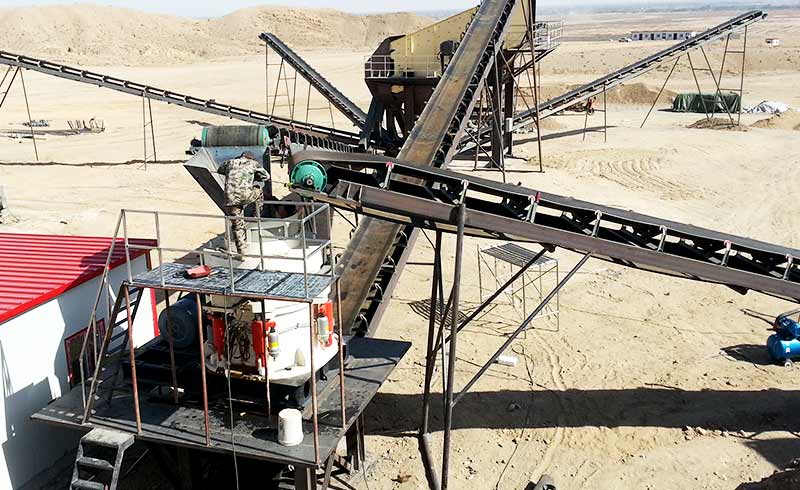

cone crusher production site

Price of Cone Crusher

What is the price of a cone crusher that can reach a maximum capacity of 1000t/h? The type and model depend on its price. Different kinds of cone crushers have differences in price. The technology, process, experience, and materials of the crusher will determine the quality and performance of the equipment, which will directly influence the price of the equipment. If the customers have difficulty in selecting machines, they can consult the technical people online. Generally, there is a one-on-one selection guide. In terms of the detailed offer, you can consult us at any time. You can also send an email to info@hxjq.com to consult us.

purchase contract with customer

Technical data

  • Cone Crusher
  • Single Cylinder Cone Crusher
  • Multi-Cylinder Hydraulic Cone Crusher
  • Hydraulic Cone Crusher

Specification Model Diameter
of large
end of
crushing
 cone
(mm)
Max.feeding
size(mm)
Width of
discharge
opening
(mm)
Processing
capacity
(t/h)
Motor
power
(kw)
Total
weight
(t)
Dimensions
(L×W×H)
(mm)
Φ600 PYB600 600 65 12-25 40 8P   30 5 2234×1370×1675
PYD600 35 3-13 12-23 5.5 2234×1370×1675
Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2 2692×1640×2350
PYZ900 60 5-20 20-65 11.2 2692×1640×2350
PYD900 50 3-13 15-50 11.3 2692×1640×2350
Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7 2790×1878×2844
PYZ1200 100 8-25 42-135 25 2790×1878×2844
PYD1200 50 3-15 18-105 25.3 2790×1878×2844
Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3 3910×2894×3809
PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
PYD1750 85 5-13 60-180 50.2 3910×2894×3809
Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80 4622×3302×4470
PYZ2200 230 10-30 130-410 80 4622×3302×4470
PYD2200 100 5-15 80-200 81.4 4622×3302×4470

SC-S series of single cylinder hydraulic cone crusher parameters:

Model cavities Maximum Feeding Size(mm) Minimum Discharging Size(mm) install Power(kw) capacity(t/h)
SC(S)100 C1 250 22 90 85-170
C2 200 19 90 70-130
SC(S)160 C1 360 25 160 125-345
C2 300 22 160 108-305
SC(S)250 C1 450 35 250 267-605
C2 400 29 250 225-515
SC(S)315 C1 560 41 315 349-1050
C2 500 38 315 318-892

Technical parameters of SC series single cylinder hydraulic cone crusher:

Model cavities Maximum Feeding Size(mm) Minimum Discharging Size(mm) install Power(kw) capacity(t/h)
SC100 F1 150 10 90 45-135
F2 90 10 90 43-118
F3 50 6 90 36-71
SC160 F1 200 13 160 69-215
F2 115 10 160 57-184
F3 75 8 160 63-126
SC250 F1 215 16 250 116-396
F2 140 13 250 97-328
F3 70 8 250 95-252
SC315 F1 275 16 315 177-662
F2 175 16 315 162-552
F3 85 13 315 195-401
SC560 F1 300 22 560 448-1512
F2 195 19 560 380-1373
F3 90 13 560 357-912
SC750 F1 370 25 750 394-2181
F2 300 19 750 342-2020
F3 230 16 750 267-1814
F4 120 13 750 248-1165
F5 85 10 750 185-1170

Model Cavity Diameter
of large
end of
crushing
cone
(mm)
Width of
Feeding
Opening(mm)
Max.
feeding
size
(mm)
Adjusting
Range of
Discharge
 Opening
 (mm)
Processing
capacity(t/h)
Main motor
power(kw)
Weight of
Main
Machine
(t)
HXHP200 C1 900 210 178 22~38 160~250 160 10.1
C2 155 132 18~38 145~250
C3 130 110 14~38 120~250
F1 118 100 12~25 108~210
F2 90 76 10~25 81~210
F3 70 60 8~25 72~210
HXHP300 C1 1100 235 200 26~45 230~445 220 17.8
C2 211 180 20~45 200~445
C3 135 115 16~45 180~445
F1 124 105 14~25 160~220
F2 96 82 12~25 140~220
F3 70 60 8~25 120~220
HXHP400 C1 1400 330 280 26~51 270~630 315 25
C2 200 170 22~51 243~630
C3 152 130 16~51 210~630
F1 135 115 12~25 162~370
F2 106 90 10~25 126~370
F3 80 68 8~25 104~370
HXHP500 C1 1500 335 285 32~51 365~790 400 34.1
C2 229 190 25~51 328~790
C3 180 152 19~51 280~790
F1 152 130 13~25 202~450
F2 124 105 10~25 158~450
F3 88 75 8~25 122~450
HXHP800 C1 2000 385 326 32~51 616~1100 630 69.2
C2 350 298 25~51 522~1100
C3 280 238 16~51 380~1100
F1 160 136 13~25 328~730
F2 120 102 10~25 270~730
F3 90 77 8~25 166~730

Model Cavity
Diameter of
large end of
crushing cone (mm)

Adjusting Range of
Discharge  Opening (mm)

Feed Opening Size
of  the Opening
Edge when Recommending
Min. Discharging Gate Opening (mm)

Max.feeding size
(mm)

Processing capacity
(t/h)

Main motor power
(kw)

Machine Weight
(t)
HXGYS 300 C1 910 13~38 175 150 81~180 6P  90 10
C2 9~22 102 85 60~180
F1 3~16 76 65 36~145
F2 3~13 41 35 36~130
HXGYS 400 C1 1200 19~51 241 205 207~400 6P  200 20
C2 16~38 210 178 162~350
C3 13~31 137 115 126~310
F1 8~25 105 89 109~230
F2 6~16 89 76 82~230
F3 3~16 64 54 40~230
HXGYS 500 C1 1600 25~64 269 228 280~650 6P  280 40
C2 22~51 241 205 258~450
C3 16~38 209 178 180~410
F1 10~25 133 113 162~355
F2 6~19 89 76 136~330
F3 5~13 70 60 90~300

  • Cone Crusher
  • Single Cylinder Cone Crusher
  • Multi-Cylinder Hydraulic Cone Crusher
  • Hydraulic Cone Crusher

Specification Max.feeding
size(mm)
Processing
capacity
(t/h)
Φ600 65 40
35 12-23
Φ900 115 50-90
60 20-65
50 15-50
Φ1200 145 110-168
100 42-135
50 18-105
Φ1750 215 180-360
185 80-210
85 60-180
Φ2200 300 420-700
230 130-410
100 80-200

SC-S series of single cylinder hydraulic cone crusher parameters:

Model cavities Maximum Feeding Size(mm) capacity(t/h)
SC(S)100 C1 250 85-170
C2 200 70-130
SC(S)160 C1 360 125-345
C2 300 108-305
SC(S)250 C1 450 267-605
C2 400 225-515
SC(S)315 C1 560 349-1050
C2 500 318-892

Technical parameters of SC series single cylinder hydraulic cone crusher:

Model cavities Maximum Feeding Size(mm) capacity(t/h)
SC100 F1 150 43-135
F2 90 43-118
F3 50 36-71
SC160 F1 200 69-215
F2 115 57-184
F3 75 63-126
SC250 F1 215 116-396
F2 140 97-328
F3 70 95-252
SC315 F1 275 177-662
F2 175 162-552
F3 85 195-401
SC560 F1 300 448-1512
F2 195 380-1373
F3 90 357-915
SC750 F1 370 394-2181
F2 300 342-2020
F3 230 267-1814
F4 120 248-1165
F5 85 185-1170

Model Max. feeding
size (mm)
Processing
capacity(t/h)
HXHP200 178 160~250
132 145~250
110 120~250
100 108~210
76 81~210
60 72~210
HXHP300 200 230~445
180 200~445
115 180~445
105 160~220
82 140~220
60 120~220
HXHP400 280 270~630
170 243~630
130 210~630
115 162~370
90 126~370
68 104~370
HXHP500 285 365~790
190 328~790
152 280~790
130 202~450
105 158~450
75 122~450
HXHP800 326 616~1100
298 522~1100
238 380~1100
136 328~730
102 270~730
77 166~730

Model Max.feeding
size(mm)
Processing
capacity(t/h)
HXGYS 300 150 81~180
85 60~180
65 36~145
35 36~130
HXGYS 400 205 207~400
178 162~300
115 126~310
89 109~230
76 82~230
54 40~230
HXGYS 500 228 280~650
205 258~450
178 180~410
113 162~355
76 136~330
60 90~300

For customization, please contact us.

more

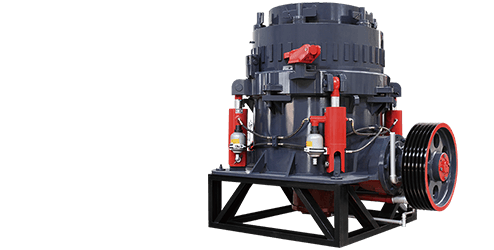

Hydraulic Cone Crusher

Adjustable Discharge Port Adopting Safety Cylinder Fully Automatic Control System Hydraulic Lubrication
Hydraulic Cone Crusher
more

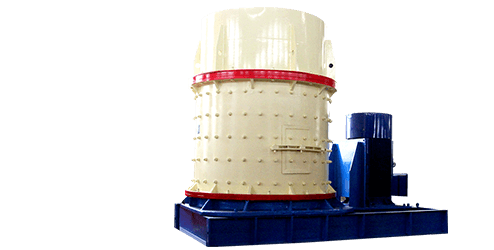

Combination Crusher

High Crushing Rate Low Noise Little Abrasion Easy Maintenance
Combination Crusher
more

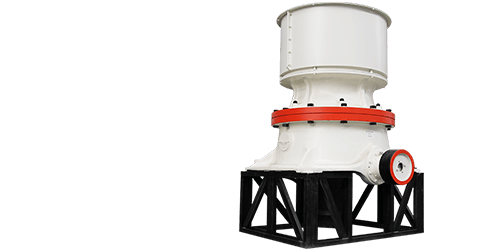

Single Cylinder Cone Crusher

Simple Structure Easy Maintenance Durable Lining Plate Fully Automatic Control System Diverse Cavity Types
Single Cylinder Cone Crusher

SOLUTION

Stone Crusher In Mexico

Stone Crusher In Mexico

China Henan Hongxing Machinery Mining Machinery Co., Ltd. is a large-scale joint-stock enterprise mainly engaged in the production of heavy mining machines, as well as scientific research, production and sales. The crushing series machines produced by the company are widely used in metallurgical, ch

MORE +
Stone Production Line

Stone Production Line

The stone production line produced by Hongxing Mining Machinery has many varieties, models, fast delivery, guaranteed quality. To provide you with one-on-one after-sales service, welcome online consultation.

MORE +

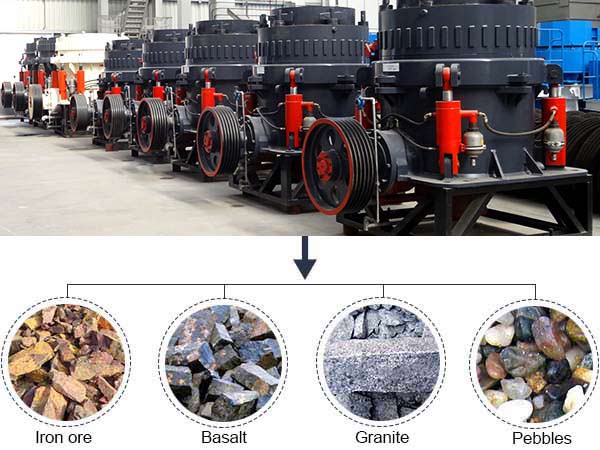

Applied materials:
