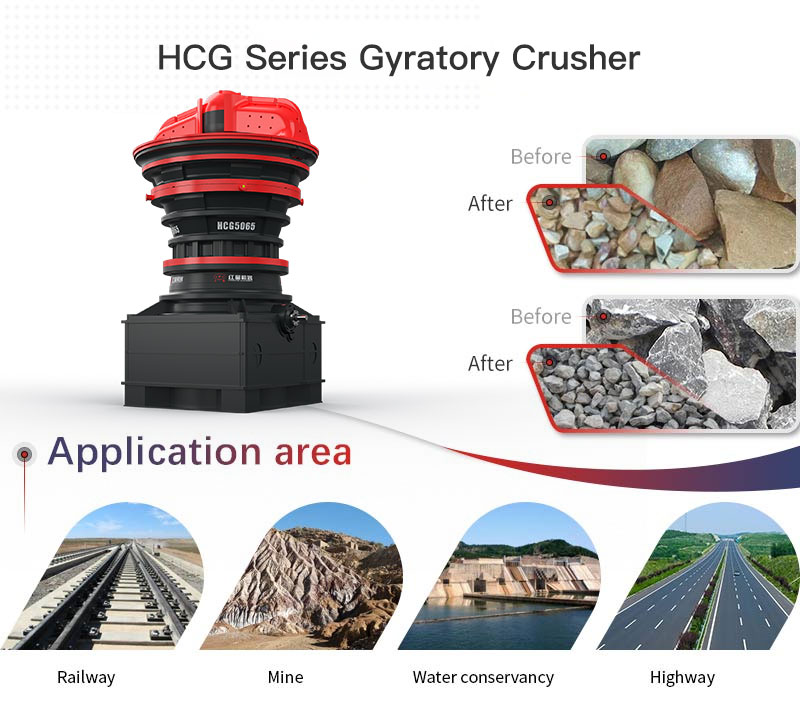

Application fields:metal mines, aggregate mines, large engineering construction field of many industries.
Made in China
Two weeks delivery, custom cycle, please consult

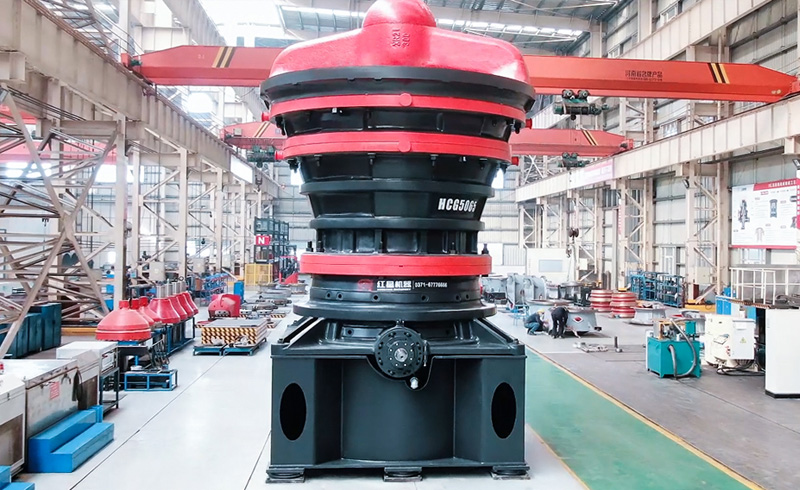

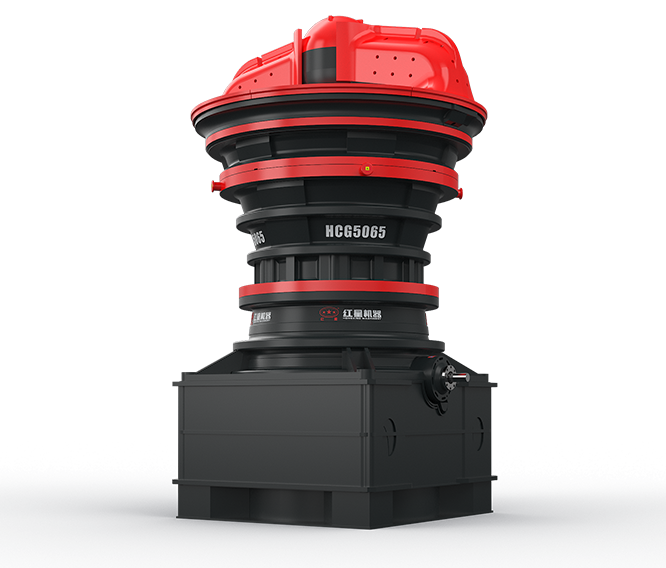

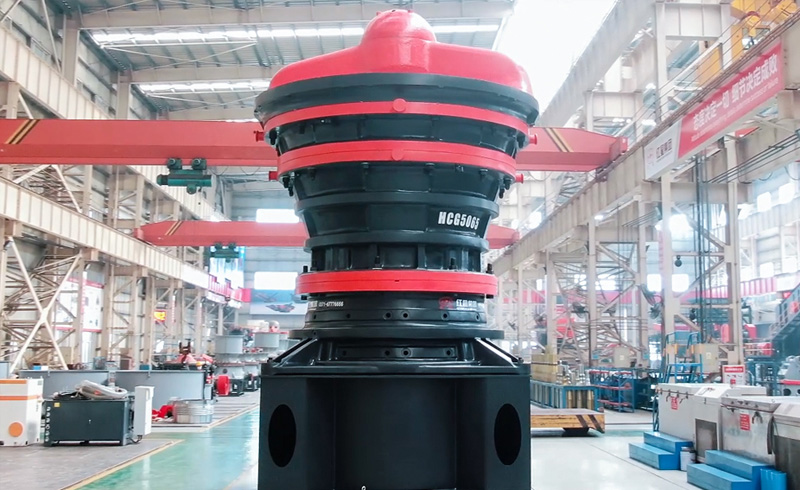

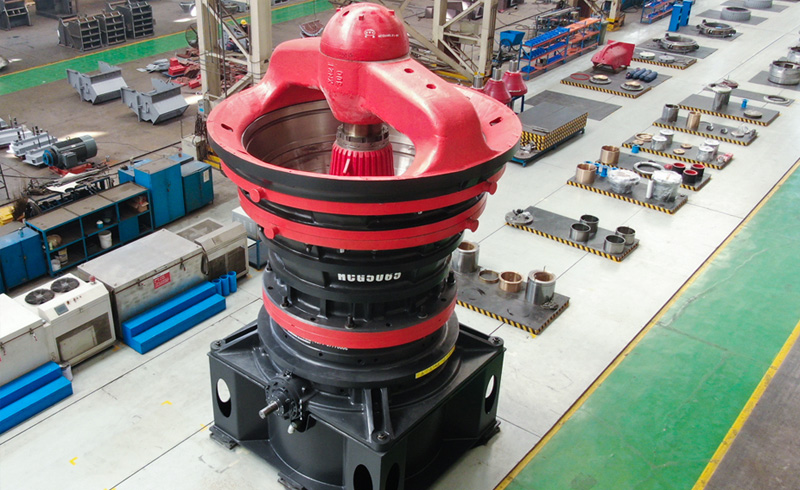

HCG Series Gyratory Crusher is a new type of high-efficiency coarse crushing equipment based on the introduction of advanced technology from Europe and the United States and the development needs of modern industry, aiming at the specific needs of large equipment in the market. The equipment adopts international advanced technology manufacturing, the overall performance is in the leading position in the industry, mainly used for the primary crushing of materials, can process the high, medium hardness of various materials, has been successfully used in metal mines, aggregate mines, large engineering construction field of many industries.
This series of models can meet the configuration requirements of crushing system with processing capacity of 2000-10000t/h.

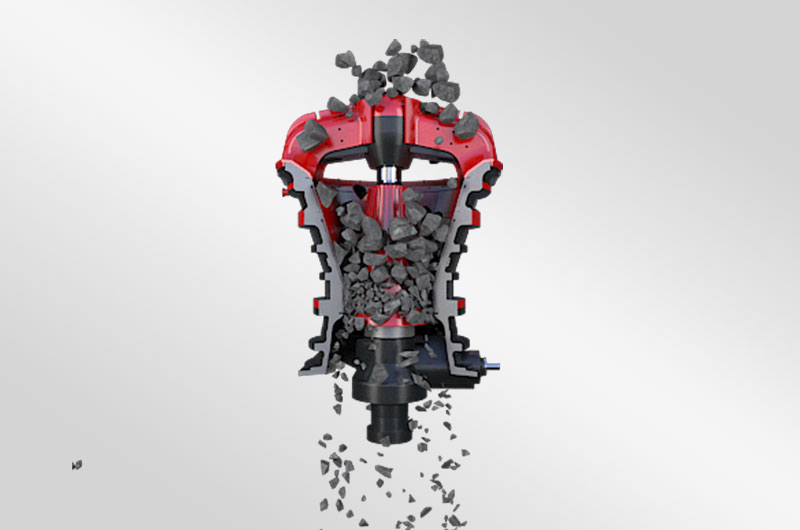

The crushing cone uses the rotating motion of the crushing cone in the cone cavity of the shell to squeeze, split and bend the material, and roughly crush ores or rocks of various hardness. The upper end of the main shaft equipped with the crushing cone is supported in the bushing in the middle of the beam, and the lower end is placed in the eccentric hole of the sleeve. When the sleeve rotates, the crushing cone moves eccentrically around the center line of the machine. Its crushing action is continuous, so its working efficiency is higher than that of the jaw crusher.
It is equipped with displacement sensor as standard,the hydraulic cylinder automatically makes up the pressure to adjust the discharge opening to compensate for the wear of the liner,which guarantees the stability of the particle size and improves the productivity.
The large inclined angle crushing chamber and longer crushing surface make the crusher have super high crushing capacity.
Integral forged spindle avoids the danger of loosening the dynamic cone,thus reducing downtime.
The wear distribution of the whole crushing cavity is more uniform,which reduces the times of replacing the lining plate and the production costs.
| Model | Feeding opening size (mm) |
Max.Feeding size (mm) |
Adjustment range of discharge port (mm) |
Capacity (t/h) |
Power (kw) |
Dimensions L×W×H(mm) |
| HCG4265 | 1065 | 900 | 140-175 | 2018-2878 | 400 | 3940×4170×6900 |
| HCG5065 | 1270 | 1050 | 150-175 | 2403-2943 | 400 | 4460×4430×7610 |
| HCG5475 | 1370 | 1150 | 150-200 | 2893-3493 | 450 | 4930×4925×8410 |
| HCG6275 | 1575 | 1350 | 150-200 | 2898-4338 | 450 | 5580×5250×9090 |
| HCG6089 | 1525 | 1300 | 165-230 | 4203-5813 | 630 | 5590×5445×10470 |
| HCG60110 | 1525 | 1300 | 175-250 | 5543-8898 | 1250 | 6200×5940×11390 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size (mm) |
Max.Feeding size (mm) |
Capacity (t/h) |
| HCG4265 | 1065 | 900 | 2018-2878 |
| HCG5065 | 1270 | 1050 | 2403-2943 |
| HCG5475 | 1370 | 1150 | 2893-3493 |
| HCG6275 | 1575 | 1350 | 2898-4338 |
| HCG6089 | 1525 | 1300 | 4203-5813 |
| HCG60110 | 1525 | 1300 | 5543-8898 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
For customization, please contact us.
